Devote to RFID Technology Research & Development Since 2007
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Andea Electronics |
| Model Number: | AH2202 |
| Minimum Order Quantity: | 1 Piece |
| Packaging Details: | Standard Export Carton, Foam and Protective Film |
| Delivery Time: | 3~5 work days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 500~1000 Sets Per Month |
| CPU: | Cortex A53 (quad Core) | RAM: | 2GB |
|---|---|---|---|
| ROM: | 16GB | Compatible Protocols: | ISO 15693 And ISO 18000-3M1 |
| Reading Range: | 28cm | WIFI: | Support |
| High Light: | android rfid reader,portable rfid reader |
||
Product Introduction:

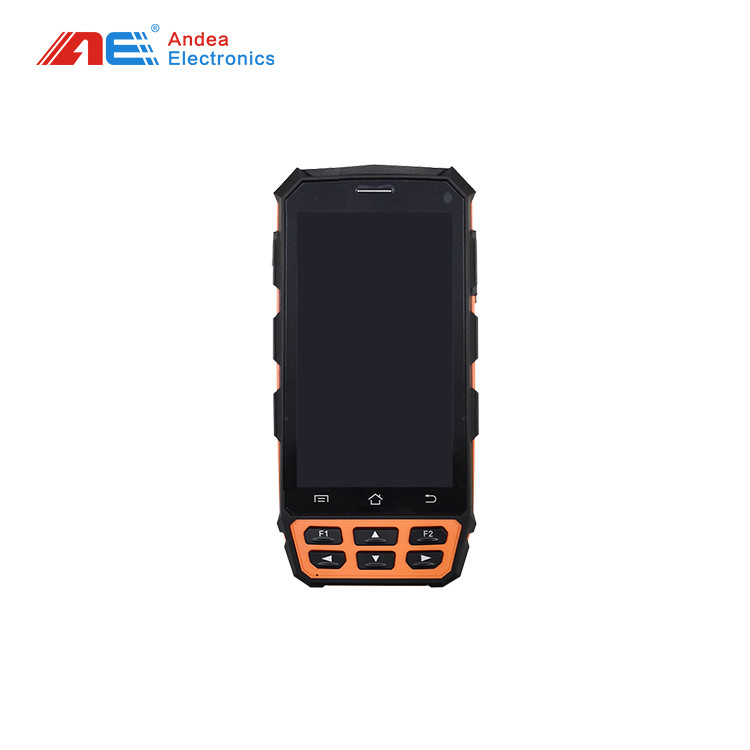

AH2202 wireless handheld RFID PDA is integrated with WiFi and Bluetooth communication module, which supports Android 7.0 operating system. It is integrated with Andea's high performance meduim power RFID reader module, reading range up to 28cm (standard RFID card). Due to its anti-collision algorithm and 1.5W radio frequency power, it is possible to identify 50 Pieces per second. Long time working as it has a 4500mAh lithium polymer battery, which makes it reliable for outdoor using.
Product Features:
| Technical Specification | ||
| Operating System | Android 7.0 | |
| CPU | Cortex A53 (quad core) | |
| RAM / ROM | RAM: 2GB ROM: 16GB | |
| Display | 5.0inch IPS panel, Resolution:720*1280,HD full viewing angle, viewable under sunshine | |
| Keyboard | Number keyboard and function keyboard | |
| Touch Screen | Support multi-point capacitive touch screen, workable with glove | |
| Micro SD card | Support 128G MICRO SD card | |
| Audio | Support voice announment | |
| Wireless Communication |
GPRS |
GSM/GPRS/Edge
(850/900/1800/1900MHz) |
| 4G |
TD-LTEBand38/39/40/41FDD-LTEBand1,2,3,4,7,17,20 |
|
|
WIFI |
Support | |
| Bluetooth | Meet Bluetooth 4.0 | |
| Indicator Light | Internet indicator light, charging indicator light | |
| Battery | Capacity | 4500mAh lithium polymer |
| Stand-by Time | When fully charged, close wireless communication functions and stand-by time is 360h and above | |
| Operating Time | ＞12h | |
| Charging Time | ＜4h | |
| RFID Parameters | ||
| Compatible Protocol | ISO15693/ISO18000-3M1 | |
| Operating Frequency | 13.56 MHz | |
| RF Power | 0.25-1.5W | |
| Reading Range | 28cm (standard RFID card) | |
| Anti-collision Algorithm | Support | |
| Working Environment | ||
| Operating Temperature | -20℃~50℃ | |
| Storage Temperature | -20℃~70℃ | |
| Relative Humility | 5%~95% RH, no condense | |
| Physical Parameters | ||
| Gross Weight | <400g | |
| Dimension | 170*85*23 ± 2mm | |
Product Application:
Due to its easy operating and long distance reading range, it could be widely used for RFID ticket identification, assets management, warehouse inventory, etc.
