Place of Origin: | CHINA |
---|---|
Brand Name: | Andea Electronics |
Model Number: | R-PAN |
Minimum Order Quantity: | 1 Piece |
Packaging Details: | Standard Export Carton, Foam and Protective Film |
Delivery Time: | 3~5 work days |
Payment Terms: | T/T, Western Union, Paypal |
Supply Ability: | 500~1000 Sets Per Month |
Working Frequency: | 13.56MHz | Protocol Standards: | ISO/IEC 15693 And ISO 18000-3M1 |
---|---|---|---|
RF Power: | 0.25~1.5W(adjustable) | Recognition Distance: | 40cm (this Feature Is Related To The Card) |
Recognition Speed: | Up To 50 Pcs/sec | Communication Interface: | WIFI, Bluetooth And USB |
High Light: | Handheld RFID Reader Scanner,Library RFID Reader Scanner,Archives Management RFID Reader Scanner |

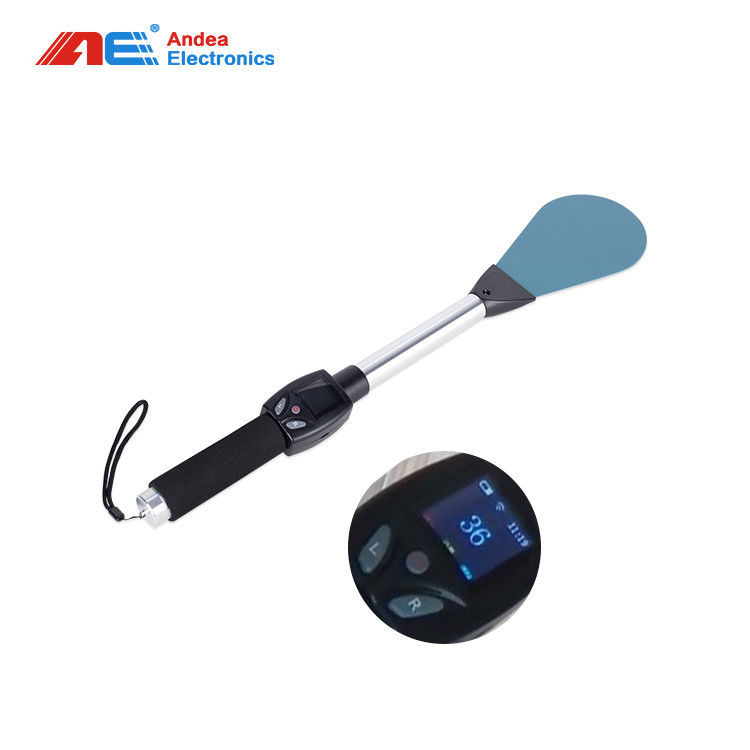

Handheld Reader Scanner for Library and Archives Management System
Product Introduction:
This is an RFID reader for the inventory management of libraries and archives. It adopts the integrated design of antenna and reader. With 3350mah rechargeable battery, it can be used wirelessly for up to 3 hours. Working in the case of wireless connection, WiFi and Bluetooth can be used for data transmission, and USB can also be connected to the tablet device for communication. The product is equipped with a handle, which can be used for handheld work, and can also be used on mobile inventory equipment. The handheld spot check device supports a variety of working modes, such as inventory mode, search mode and anti-theft mode. The scanner has a simple keyboard with a device switch and two keys, which are used to open and close the device. The keys can be used to set functions and other options. The top of the product is made of PCB material. The soft material can make the equipment more close to the books and archives to be scanned, enhance the ability of label detection and improve the accuracy of scanning labels. If you have a need for inventory, this product is worth your priority.
Product Features:
Friendly LCD display user interface;
Nimble button control function;
Built in rechargeable lithium battery, easy installation and removing;
Technical Specification | ||
Compatible Protocol | ISO 15693 and ISO 18000-3M1 | |
Operating Frequency | 13.56 MHz | |
RF Power | 0.25-1.5W | |
Reading Range | 40cm (standard RFID card) | |
Reading Speed | Up to 50 pcs/sec | |
Communication Interface | Bluetooth and WIFI | |
Anti-collision Algorithm | Support | |
Work Mode | Host Mode and Scan Mode | |
Power Consumption | <5W | |
Working Environment | ||
Operating Temperature | -10℃~60℃ | |
Storage Temperature | -45℃~85℃ | |
Relative Humility | 5%~80% | |
Physical Parameters | ||
Weight | 300g | |
Dimension | 570*113*41mm |
Product Application:
RFID library management, archives management, etc.
