Place of Origin: | CHINA |
---|---|
Brand Name: | Andea Electronics |
Model Number: | AH2212 |
Minimum Order Quantity: | 1 Piece |
Packaging Details: | Standard Export Carton, Foam and Protective Film |
Delivery Time: | 3~5 work days |
Payment Terms: | T/T, Western Union, Paypal |
Supply Ability: | 500~1000 Sets Per Month |
Operating System: | Android 11.0 | CPU: | 2.0GHZ (8 Core) |
---|---|---|---|
Display: | 6.21 Inch Color Panel, Resolution: 1520*720 | Protocol: | ISO15693, ISO18000-3M3 |
Operating Frequency: | 13.56MHz | Scanner: | Barcode Or QR Scanner For Option |
RF Power: | 250mW~1.5W | Reading Range: | 32cm |
Reading Speed: | 50tags/s | Weight: | 680g |
Size: | 168mm*97mm*145mm | ||
High Light: | rfid portable reader,android rfid reader |

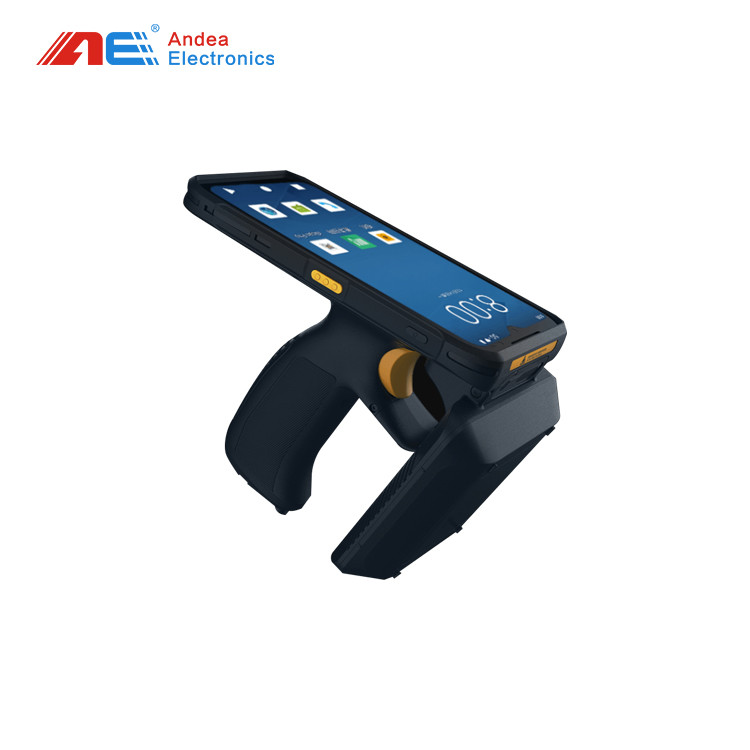

Android Industrial-class Handheld Mobile Computer with 1D,2D,RFID
Product Introduction:
AH2212 is an industrial-class handheld RFID terminal, integrated with mid-range high-performance RFID reader module and scanner. It is compatible with ISO15693 transponder, reading distance up to 32cm (ISO Standard RFID card). With anti-collision algorithm, identify speed reach up to 50pcs/sec.
Technical Specification :
Host Machine | ||
Operating System | Android 11.0 | |
CPU | 2.0GHZ (8 core) | |
RAM/ROM | RAM:4GB ROM:64GB | |
Display | 6.21inch color panel, Resolution:1520*720 | |
Keyboard | Six function boards | |
Touch Screen | Support multiple points capacitive touch screen, workable with glove | |
Micro SD card | Support Micro SD 1TB | |
Audio | Support voice announment | |
Wireless |
GPRS (default) |
GSM/GPRS/EDGE/CDMA/UMTS/HSPA/HSPA+/EVDO/WCDMA
/TD-SCDMA /TDD-LTE/FDD-LTE
|
4G (default) |
|
|
WIFI (default) | support | |
Bluetooth (default) | Meet Bluetooth 5.0 | |
Indicator | High-power horn/vibration prompt/LED prompt/audio prompt | |
Scanner | Barcode and QR code scanner for option | |
Battery | Capacity |
Host:4500mAh lithium polymer battery Handle:6700mAh lithium polymer battery |
RFID Parameters | ||
Protocol | ISO15693, ISO18000-3M3 | |
Operating Frequency | 13.56MHz | |
RF Power | 0.25~1.5W | |
Reading Distan | 32cm (depends on card performance) | |
Anti-Collision Algorithm |
Support, up to 50Pieces/sec. | |
Working Environment | ||
Operating |
-20℃~60℃ | |
Storage Temperature | -40℃~70℃ | |
Relative Humility | 0~95%RH, no condensing | |
Physical Parameters | ||
Gross Weight | 680g | |
Outline Dimension |
168mm*97mm*145mm |
Application :
