Devote to RFID Technology Research & Development Since 2007
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Andea Electronics |
| Model Number: | AH2202 |
| Minimum Order Quantity: | 1 Piece |
| Packaging Details: | Standard Export Carton, Foam and Protective Film |
| Delivery Time: | 3~5 work days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 500~1000 Sets Per Month |
| CPU: | Cortex A9 1.2GHz (dual Core) | Display: | 5.0 Inch IPS Panel |
|---|---|---|---|
| Keyboard: | Number Keyboard And Function Keyboard | Memory: | Support 32G Micro SD Card |
| Audio: | Support Voice Announment | Operating Frequency: | 13.56MHz |
| Highlight: | android rfid reader,portable rfid reader |
||
Product Introduction:

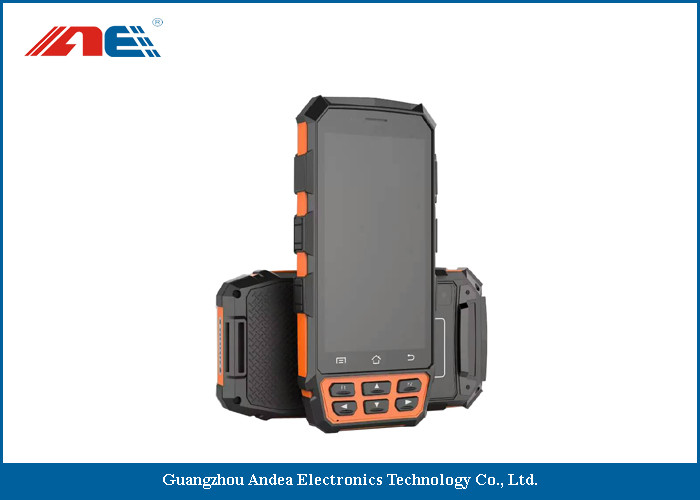

AH2202 HF RFID handheld terminal is integrated with Android 7.0 operating system. Its operating frequency is 13.56MHz that can read all the tags in accordance with ISO15693 and ISO18000-3 protocols. Radio frequency power is configurable from 0.25W to 1.5W, also , because of its anti-collision algorithm, this terminal could capture 50 tags information per second. There are several wireless communication ways for choice: Bluetooth, WIFI, GPRS (for option), WCDMA (for option). By using a 4500mAh lithium polymer battery, its working time is more than 5 hours. We provide free software development kit and testing software, these could send in advance for checking
| Technical Specification | ||
| Operating System | Android 7.0 | |
| CPU | Cortex A9 1.2GHZ (dual core) | |
| RAM / ROM | RAM: 1GB ROM: 8GB | |
| Display | 5.0 inch IPS panel, Resolution:480*800,HD full viewing angle, viewable under sunshine | |
| Keyboard | Number keyboard and function keyboard | |
| Touch Screen | Support multi-point capacitive touch screen, workable with glove | |
| Micro SD card | Support 32G MICRO SD card | |
| Audio | Support voice announment | |
| Wireless Communication |
GPRS |
GPRS, EDGE, 4-band 900/1800, 850/1900 |
| 4G | ||
|
WIFI |
Meet IEEE 802.11b/g | |
| Bluetooth | Meet Bluetooth 4.0 | |
| Indicator Light | Internet indicator light, charging indicator light | |
| Battery | Capacity | 4500mAh lithium polymer |
| Stand-by Time | When fully charged, close wireless communication functions and stand-by time is 200h and above | |
| Operating Time | ＞5h | |
| Charging Time | ＜4h | |
| RFID Parameters | ||
| Compatible Protocol | ISO 15693 | |
| Operating Frequency | 13.56 MHz | |
| RF Power | 0.25-1.5W | |
| Reading Range | 30cm (standard RFID card) | |
| Anti-collision Algorithm | Support | |
| Working Environment | ||
| Operating Temperature | -10℃~70℃ | |
| Storage Temperature | -20℃~85℃ | |
| Relative Humility | 10%~90% RH, no condense | |
| Physical Parameters | ||
| Gross Weight | <388g | |
| Dimension | 170*85*23 ± 2mm | |
Product Application:
Our handheld readers enable you to read RFID tags at any point in your business from the shop floor, showroom, to the receiving dock, and even while in transit at collection points. These handheld readers can be used for many different applications such as security tour, logistics and ticketing systems, field service, direct store delivery, retail, warehouse and manufacturing. These kind of readers can also be used in logistics, personnel tracking or event management, access control, asset tracking, warehouse management, livestock tagging or other applications needing HF mobile handheld tracking terminals, warehouse distribution, the shop floor, point-of-sales (POS).
