Built In Near Field Communication NFC Card Reader , RFID NFC Reader Writer 13.56MHz

Basic Information

Place of Origin:	CHINA
Brand Name:	Andea Electronics
Model Number:	RL86S

Minimum Order Quantity:	1 Piece
Packaging Details:	Standard Export Carton, Foam and Protective Film
Delivery Time:	3~5 work days
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	500~1000 Sets Per Month

Get Best Price Contact Now

Communication Interface:	RS232	ISO 15693:	10cm
ISO 14443A:	6cm	ISO 18000-3M3:	6cm
Anti-collision Algorithm:	Support	Material:	PCB
Highlight:	low power rfid reader , integrated rfid reader

Built In Near Field Communication RFID Reader Multiple Protocols 13.56MHz

Product Introduction:

RL86S built-in NFC RFID reader supports ISO15693, ISO18000-3M3 and ISO14443A/B protocols simultaneously. It is adopted with all-in-one design which is integrated with RFID antenna already. With its anti-collison algorithm, it can read multiple tags with different protocols simultaneously. As this model is small size , it could be easily embedded in any device. This reader could be easily integrated with your existing device for its common RS232 communication interface.

Product Features:

All-in-one design
Support multi-protocols
Anti-collision algorithm
NFC reader
ICODE ILT tags reader (ISO 18000-3M3)

Technical Specification
Model		RL86S
Operating Frequency		13.56 MHz
Compatible Protocols		ISO 15693, ISO 14443A/B, ISO 18000-3M3
Compatible Tags		NFC Forum Type 1: Innovision Topaz512 NFC Forum Type 2: Mifare Ultralight, Mifare Ultralight C, Mifare Ultralight EV1, NTAG21x. NFC Forum Type 3: Sony Felica [only support Polling] NFC Forum Type 4: Mifare DESFire EV1 NFC Forum Type 5: ICODE SLI ,ICODE SLIX ,ICODE SLIX2 ,Tag-it HF- I plus Mifare Classic Type: Mifare S50, Mifare S70 ,Mifare Mini ISO18000-3M3 Type: ICODE ILT ST ISO14443B Type: SRIX4K, SRI512, ST25TB512-AC
Communication Interface		RS232
Reading Range	ISO 15693	10cm
	ISO 14443A	6cm
	ISO 18000-3M3	6cm
Anti-collision Algorithm		Support
Working Voltage		DC 12V
Max Power Consumption		1.6W
Material		PCB
Dimension		556025mm (whole size) 30*30mm (antenna size)
Weight		22g

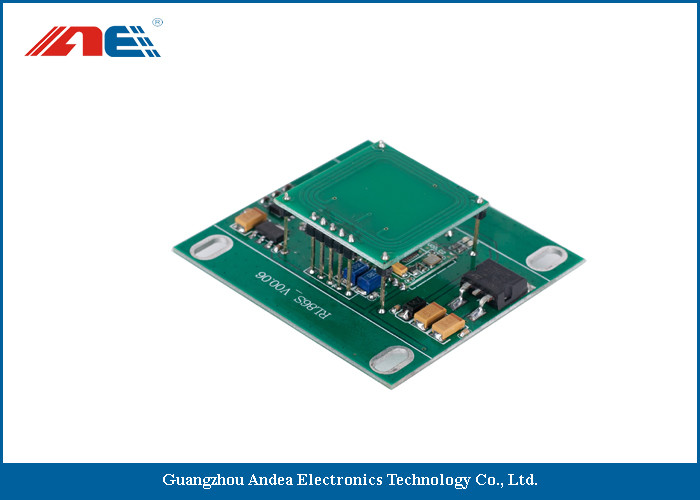

Built In Near Field Communication NFC Card Reader , RFID NFC Reader Writer 13.56MHz 0

Product Application:

This reader could be built in library card self-service kiosk, parking card dispenser, etc. It is now widly used for RFID library management, parking management and other fields.
