| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Andea Electronics |
| Model Number: | RL865 |
| Minimum Order Quantity: | 1 Piece |
| Packaging Details: | Standard Export Carton, Foam and Protective Film |
| Delivery Time: | 3~5 work days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 500~1000 Sets Per Month |
| Compatible Protocol: | ISO 15693、ISO 14443A、ISO 18000-3M3 | Operating Frequency: | 13.56MHz |
|---|---|---|---|
| Reading And Writing Range: | 7-11cm | Voltage: | 150mA /5V |
| Housing Material: | PCB And Metal Plate | Communication Interface: | USB |
| Dimension: | 54×34.5mm | Max Operating Temperature:: | 50℃ |
| High Light: | RFID Smart Card Reader Module,Embedded Smart Card Reader Module |
||

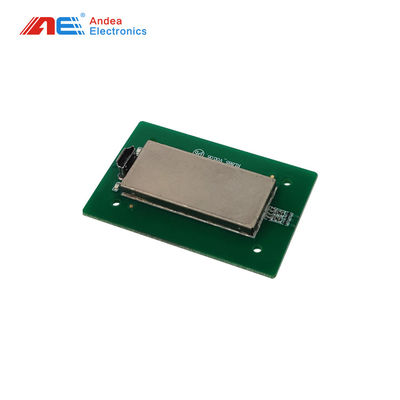

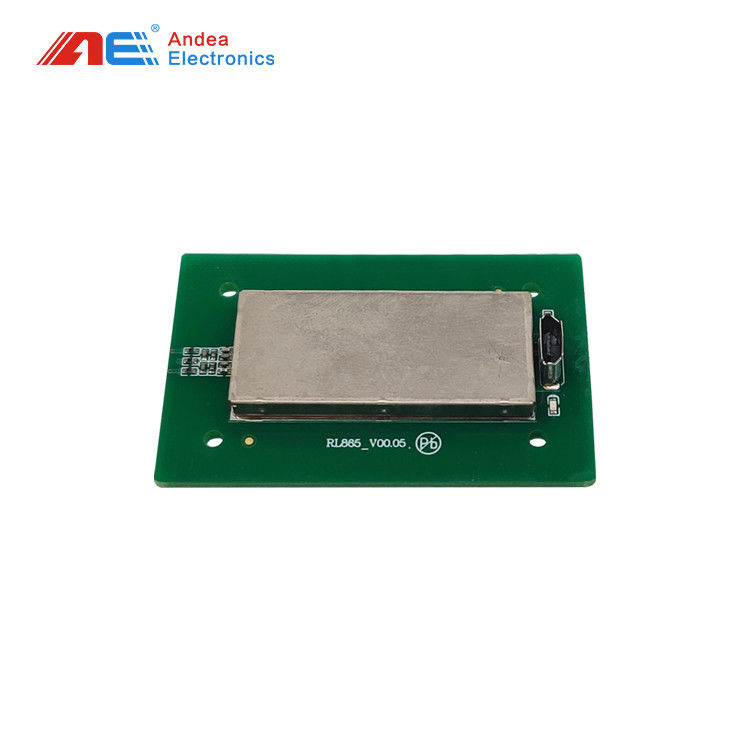

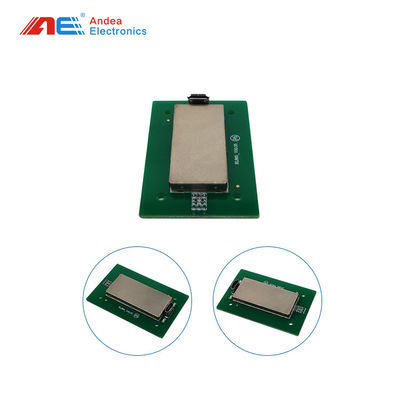

High Sensitivity RFID Smartcard Reader Module Embedded Type For Access Control Support Multi-Protocol
RL865 RFID smartcard reader module is 13.56MHz cardreader mini-module is designed for reading code from 13.56MHz card compatible read-only tags and read/write card . It can be applied in office/home security, personal identification, access control, anti-forgery and production control systems etc.With high sensitivity reading and writing performance and fast anti-collision processing algorithm which supports reading multiple electronic tags of various protocols at the same time.
Product Features:
Support ISO 14443A protocol multi-card simultaneous reading;
Support ISO 15693 protocol multi-card simultaneous reading;
Support anti-collision treatment;
Main Parameter:
| Parameters / Model | RL865 | ||||||
| Operating Frequency | 13.56MHz | ||||||
| Compatible Standard | ISO 15693,ISO 14443A,ISO 18000-3M3 | ||||||
| Reading Range |
ISO 15693:11cm ISO 14443A:7cm |
||||||
| Communication Interface | USB | ||||||
| Voltage | 150mA /5V | ||||||
| Maximum Operating Temperature | 50℃ | ||||||
| Dimensions | 54×34.5mm | ||||||
Product Application:
This product is widely used in desktop card issuance, access control, electronic bills, Libraries and other fields.
Contactless smart card readers operate with a radio frequency that communicates when the card comes close to the reader. The card does not physically have to be put onto or into the actual reader. Contactless card readers offer the added convenience and speed of not having to insert the card into a reader.
