2D IOT RFID Reader Gate Antenna Infrared Function For RFID Attendance Management System

China 2D IOT RFID Reader Gate Antenna Infrared Function For RFID Attendance Management System supplier

Large Image :  2D IOT RFID Reader Gate Antenna Infrared Function For RFID Attendance Management System

Product Details:

Place of Origin: China
Brand Name: AE
Certification: CE, FCC
Model Number: G302

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Standard Export Carton, Foam and Protective Film
Delivery Time: 3-5 Work Days
Payment Terms: L/C, T/T, Western Union,Paypal
Supply Ability: 50 Sets Per Month
Contact Now
Detailed Product Description
Operating Frequency: 13.56 MHz Compatible Protocols: ISO 15693 And ISO 18000-3
Alarm Function: Support Infrared Function: Support
EMI Detection: Support Communication Interface: Ethernet And RS232

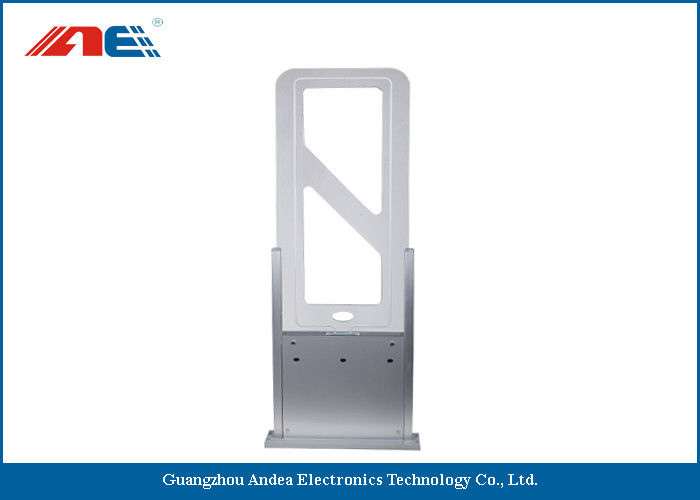

2D IOT RFID Reader Gate Antenna Width 120CM With Infrared Function



Product Introduction:



G302 IOT RFID gate reader antenna is a kind of time intelligent attendance channel which is barrier-free and automatically check-in device designed for school, conference, exhibition and other events. This system is integrated with Andea high-performance reader and infrared sensor, can rapidly and accurately identify personnel in/out with or without cards. When there is illegal invasion, there will be sound and light alarm at once. It can identify ISO/IEC 15693 and ISO 18000-3 tags. The widest identification range can be up to 120cm (It is related to tag and site environment). The transparent acrylic design won't make people feel depressed when walking through. It would sava much time for guests to finish check in  procedure but no need to do anyting.





Product Features:



  • Operating frequency 13.56MHz in accordance with ISO15693 and ISO18000-3 protocols
  • Channel width 70-120CM, adjustable according to site environment
  • Integrated infrared sensor cutting analysis, can rapidly and accurately identify personnel in/out with or without cards and to prevent their followers
  • Infrared sensor function can be shut down
  • Support check-in in advance
  • Support to read UID and data block
  • Support EMI (electromagnectic interference) and AFI detection
  • Integrated with access controller (optional)
  • Communication interface: RS232, LAN(TCP/IP)
  • Built-in sound and light alarm/prompt function
  • Industrial grade design, can work under low temperature environment





Technical Specification
Model G302
Compatible Protocols ISO 15693 and ISO 18000-3
RF Power 3-8W
EMI Detection Support
Cascade Operation Support
Aisle Width 70-120cm
Power Supply AC 100-240V 50-60Hz
Max Power Consumption 32W (Rated Power 25W)
Housing Material Acrylic and Metal Plate

Dimension

(L*W*H)

Whole: 1556*635*180mm

Antenna: 1550*57*58mm

Base: 635*180mm

Weight 22 kg/pc
Working Temperature -20℃~60℃
Storage Temperature -45℃~85℃
Relative Humidity 5%~80%




Product Application:



RFID school attendane system, meeting attendance system, exhibiton attendance system, enterprise access control system, etc.



2D IOT RFID Reader Gate Antenna Infrared Function For RFID Attendance Management System





Product Brochure:



HF RFID Time And Attendance Channel.pdf
