| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Andea Electronics |
| Model Number: | TPAD10M |
| Minimum Order Quantity: | 1 Piece |
| Packaging Details: | Standard Export Carton, Foam and Protective Film |
| Delivery Time: | 3~5 work days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 500~1000 Sets Per Month |
| RF Power: | 0.2W | Frequency: | 13.56MHz |
|---|---|---|---|
| Protocol: | ISO15693 | Type: | Hf Rfid Reader |
| Metal Shielding: | Support | Dimension: | 380*290*21mm |
| High Light: | USB Powered Desktop IOT RFID Reader,Rs232 IOT RFID Reader,Contactless IOT RFID Reader |
||

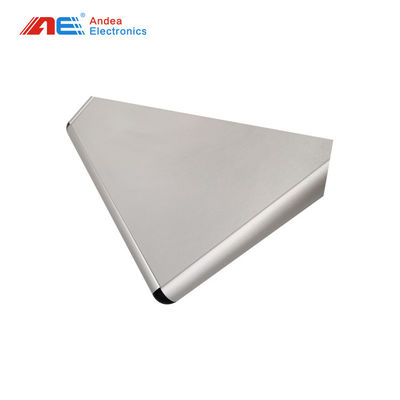

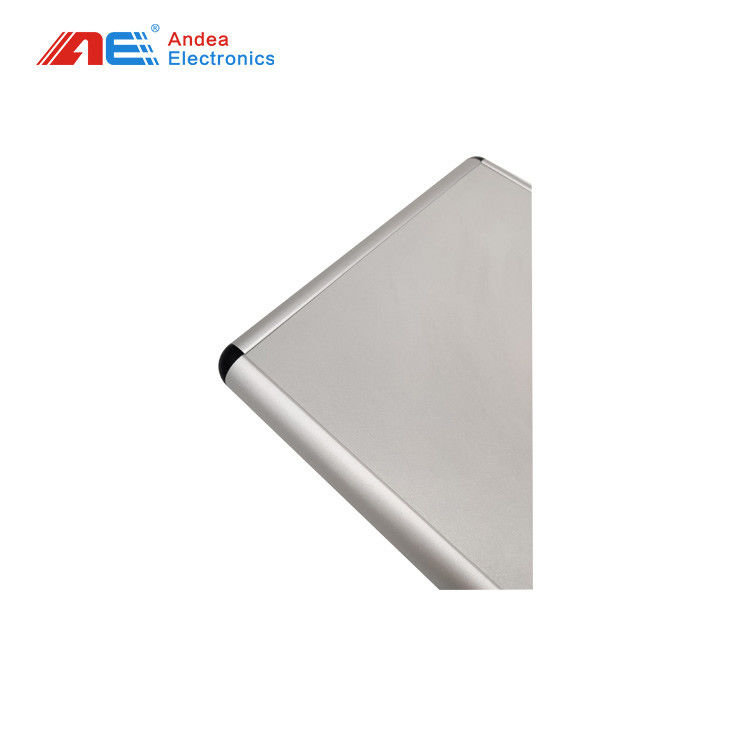

TPAD10M has the super anti-interference ability of reading and writing, is a RFID reader-writer machine that is specially designed for self-checkout and check-in, book sorter and production lines. IThe product uses a metal shielding design, so they can be installed in metal environment and not affected by the metal at the bottom and around.
Product Features:
Reading and writing distance: 15 ~ 24CM; (This distance is related to the size of the card).
Integrated design, embedded in reading and writing module and antennas.
RF power: 0.2W.
Support ISO15693, ISO18000-3M1, ISO14443A, ISO18000-3M3 standard.
Fast anti-collision processing algorithm; the reading speed is up to 50pcs / sec.
Communication interface: USB.
Anti-metal design, which allows the product to be embedded in metal -surrounding environment without impact on the performance.
Automatically turn off RF during idle time.
| Parameters | Description |
| Operating Frequency | 13.56MHz |
| Support Standard |
ISO15693, ISO14443A, ISO18000-3M1 ISO18000-3M3 |
| RF Power | 0.2W |
| Communication Interface | USB |
| Recognition Distance |
ISO 14443A: 15cm ISO 15693: 24cm |
| Range Of Reading Within Agreed Area | ≤1cm |
| Voltage | 5VDC(USB powered) |
| Maximum Power Consumption | 1W |
| Metal Shielding Design | Yes |
| Shell Material | PCB and metal plate |
| Dimensions | 379.5*290*20.7mm |
| Maximum Operating Temperature | 50℃ |
Product Application:
RFID library management, RFID archive management, RFID jewelry management, RFIDdrug administration, RFID shop settlement, Self Service Kiosk, etc.
