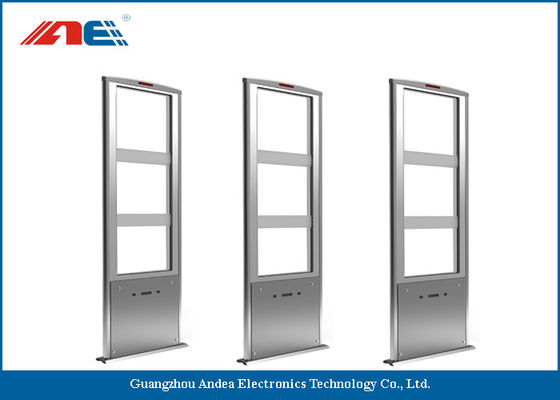

3D Detection 13.56MHz IOT RFID Reader RFID Security Gate For Access Control System

3D Detection IOT RFID Gate Reader At 13.56MHz For Library Management

Product Introduction:

The 13.56MHz RFID library detection gate integrates 3D intelligent technology and it can detect any directions in the 3D spa of device induction zone. It is a part of the future IOT world. The equipment supports electronic tags in accordance with ISO/IEC 15693 and ISO 18000-3 standard from multiple vendors, both AFI and EAS safety test model available; Its system supports up to 9 aisles at the same passageway. Aisle identification distance is above 90cm (The identification distance is related with tag performance, size, site environment and so on). This product can be widely used in library or archive entrance against theft and other fields.

Featured Function:

• Be compatible with ISO15693 and ISO18000-3M1 protocols at 13.56MHz working frequency
• The aisle width could be up to 90cm and make a group of 10pcs gates at the same entrance
• Default RF power of the security gate is 4W, the highest power for the antenna of the gate can not be more than 6W.
• Integrated infrared sensor cutting analysis, realize the flow statistic
• Support a variety of security models: EAS, AFI, EAS+AFI
• Perfect 3D omni-directional induction technology, non-blind are between each two gates
• Support EMI (electro-magnetic interference) detection to find if there is interference nearby
• Support three roads relay linkage output, one road MOS linkage output
• Built-in sound and light alarm prompt function, adjustable volume
• Communication Interface: Ethernet (TCP/IP)

Product Application:

RFID library management, RFID archives management, etc.

Management, Self-service Library and Entertainment Industry, etc.
