3D IOT RFID Gate Reader Antenna ISO15693 For Library Anti Theft RFID Gate Entry Systems

China 3D IOT RFID Gate Reader Antenna ISO15693 For Library Anti Theft RFID Gate Entry Systems supplier

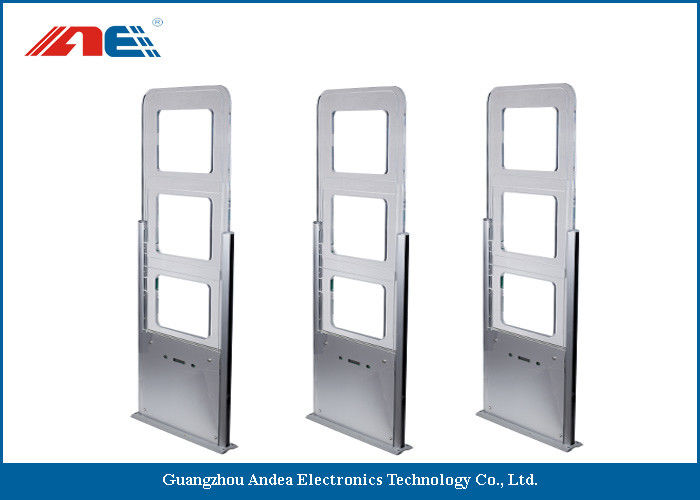

Large Image :  3D IOT RFID Gate Reader Antenna ISO15693 For Library Anti Theft RFID Gate Entry Systems

Product Details:

Place of Origin: China
Brand Name: AE
Certification: CE, FCC
Model Number: LSG405

Payment & Shipping Terms:

Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: Standard Export Carton, Foam and Protective Film
Delivery Time: 3-5 Work Days
Payment Terms: L/C, T/T, Western Union,Paypal
Supply Ability: 200 Pieces Per Month
Contact Now
Detailed Product Description
RF Power: 1-8W Alarm Mode: EAS, AFI And EAS+AFI
Passive Alarm: Support Infrared Function: Support
EMI Detection: Support Communication Interface: Ethernet



3D IOT RFID Gate Reader Antenna In ISO15693 For Library Anti Theft





Product Introduction:



The RFID library anti-theft gate is part of the future IOT world. It is integrated 3D intelligent technology and can detect any directions in the 3D space of device induction zone; The equipment supports electronic tags in accordance with ISO/IEC 15693 and ISO 18000-3 standard from multiple vendors, both AFI and EAS safety test model available; Its system supports up to 9 aisles at the same passageway. Aisle identification distance is above 90cm (The identification distance is related with tag performance, size, site environment and so on). This product can be widely used in library or archive entrance against theft and other fields.





Key Benefits:



  • Single technology is required for both inventory and theft management of the library
  • Library staff are alerted immediately when un-borrowed items pass through the theft detection gates
  • Would-be thieves are deterred by the physical presence of the gates
  • Number of patrons passing through the gates is captured by a counter on the gates





Product Features:



  • Three-dimensional orientation detecting, tags can be detected in all directions.
  • Aisle width more than 90 cm(relative to tags quality and size).
  • Support multiple -channel paralleling usage.
  • Support EAS and AFI optional detection
  • Support EAS+AFI mixed detection
  • Support Tag UID detection
  • Support direction discrimination and statistic the number of people check-in/ check-out.
  • 8 bits digital tube display, counting No. of people check-in/ check-out and device parameters can be displayed
  • Support relay output control
  • Upgrade-able firmware, support redevelopment and custom-made as requirement





Technical Specification
Model LSG405
Compatible Protocols ISO 15693
Alarm Mode EAS, AFI and EAS+AFI
Passive Alarm Support
EMI Detection Support
Aisle Width 90cm
Power Supply AC 100~240V 50~60Hz
Max Power Consumption 30W (Rated Power 20W)
Housing Material Acrylic and Metal Plate

Dimension

(L*W*H)

Whole: 1664*636*118mm

Antenna: 1642*600*44mm

Base: 636*118mm

Weight 23 kg/pc
Working Temperature -20℃~60℃
Storage Temperature -45℃~85℃
Relative Humidity 5%~80%




Product Application:



RFID library manageemnt, RFID archive management, etc.



3D IOT RFID Gate Reader Antenna ISO15693 For Library Anti Theft RFID Gate Entry Systems





Product Brochure:


HF Library Security Gate.pdf
