Devote to RFID Technology Research & Development Since 2007
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Andea Electronics |
| Model Number: | AH2202 |
| Minimum Order Quantity: | 1 Piece |
| Packaging Details: | Standard Export Carton, Foam and Protective Film |
| Delivery Time: | 3~5 work days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 500~1000 Sets Per Month |
| CPU: | Cortex A9 1.2GHz (dual Core) | Display: | 5.0 Inch IPS Panel |
|---|---|---|---|
| Keyboard: | Number Keyboard And Function Keyboard | Memory: | Support 32G Micro SD Card |
| Audio: | Support Voice Announment | Reading Speed: | 50 Tags Per Second |
| Highlight: | rfid scanner,rfid detector |
||
Product Introduction:

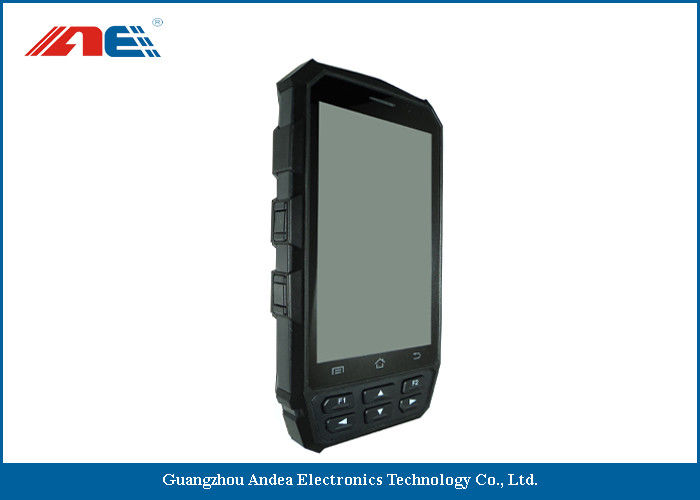

Handheld RFID reader is a very important part as hardware to capture data and information in the Internet Of Things. This handheld IOT RFID reader/writer AH 2202 is a highly integrated unit combining high performance with low power microarchitecture, and it includes an 5.0 inch IPS touch screen, 6 key interface, audio control (output), SD slot, IC card slot, contactless HF RFID, GPRS, WCDMA, WiFi and Bluetooth connectivity.
Product Features:
| Technical Specification | ||
| Operating System | Android 7.0 | |
| CPU | Cortex A9 1.2GHz (dual core) | |
| RAM / ROM | RAM: 1GB ROM: 8GB | |
| Display | 5.0 inch IPS panel, Resolution:480*800,HD full viewing angle, viewable under sunshine | |
| Keyboard | Number keyboard and function keyboard | |
| Touch Screen | Support multi-point capacitive touch screen, workable with glove | |
| Micro SD card | Support 32G MICRO SD card | |
| Audio | Support voice announment | |
| Wireless Communication |
GPRS |
GPRS, EDGE, 4-band 900/1800, 850/1900 |
| 4G | ||
|
WIFI |
Meet IEEE 802.11b/g | |
| Bluetooth | Meet Bluetooth 4.0 | |
| Indicator Light | Internet indicator light, charging indicator light | |
| Battery | Capacity | 4500mAh lithium polymer |
| Stand-by Time | When fully charged, close wireless communication functions and stand-by time is 200h and above | |
| Operating Time | ＞5h | |
| Charging Time | ＜4h | |
| RFID Parameters | ||
| Compatible Protocol | ISO 15693 | |
| Operating Frequency | 13.56 MHz | |
| RF Power | 0.25-1.5W | |
| Reading Range | 30cm (standard RFID card) | |
| Anti-collision Algorithm | Support | |
| Working Environment | ||
| Operating Temperature | -10℃~70℃ | |
| Storage Temperature | -20℃~85℃ | |
| Relative Humility | 10%~90% RH, no condense | |
| Physical Parameters | ||
| Gross Weight | <388g | |
| Dimension | 170*85*23 ± 2mm | |
Product Application:
Our handheld readers enable you to read RFID tags at any point in your business from the shop floor, showroom, to the receiving dock, and even while in transit at collection points. These handheld readers can be used for many different applications such as security tour, logistics and ticketing systems, field service, direct store delivery, retail, warehouse and manufacturing. These kind of readers can also be used in logistics, personnel tracking or event management, access control, asset tracking, warehouse management, livestock tagging or other applications needing HF mobile handheld tracking terminals, warehouse distribution, the shop floor, point-of-sales (POS).
