Devote to RFID Technology Research & Development Since 2007
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Andea Electronics |
| Model Number: | RD2104 |
| Minimum Order Quantity: | 1 Piece |
| Delivery Time: | 3~5 work days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 500~1000 Sets Per Month |
| Frequency: | 13.56MHz | Protocol: | ISO15693 |
|---|---|---|---|

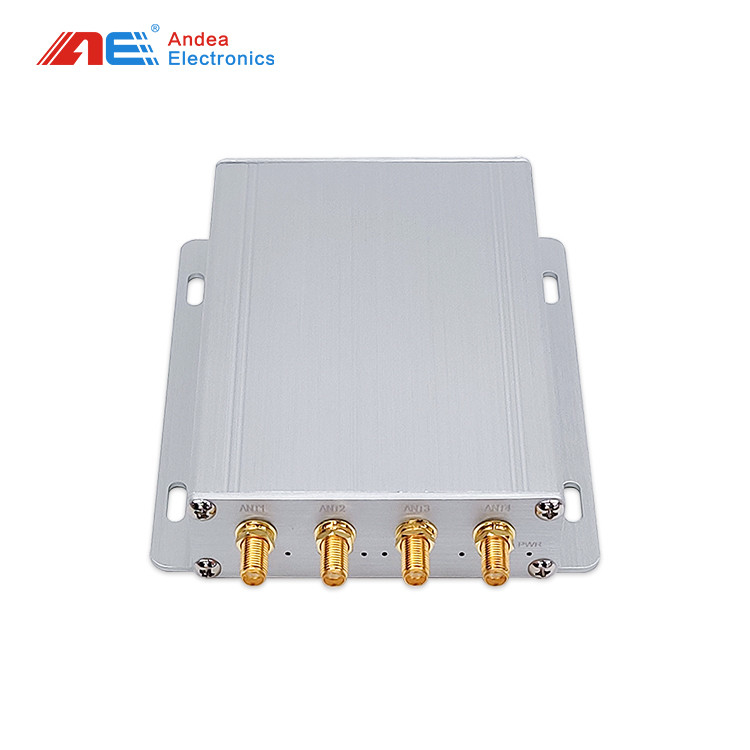

| RF Power: | 0.25~1.5W | Antenna Interface: | SMA×4 |

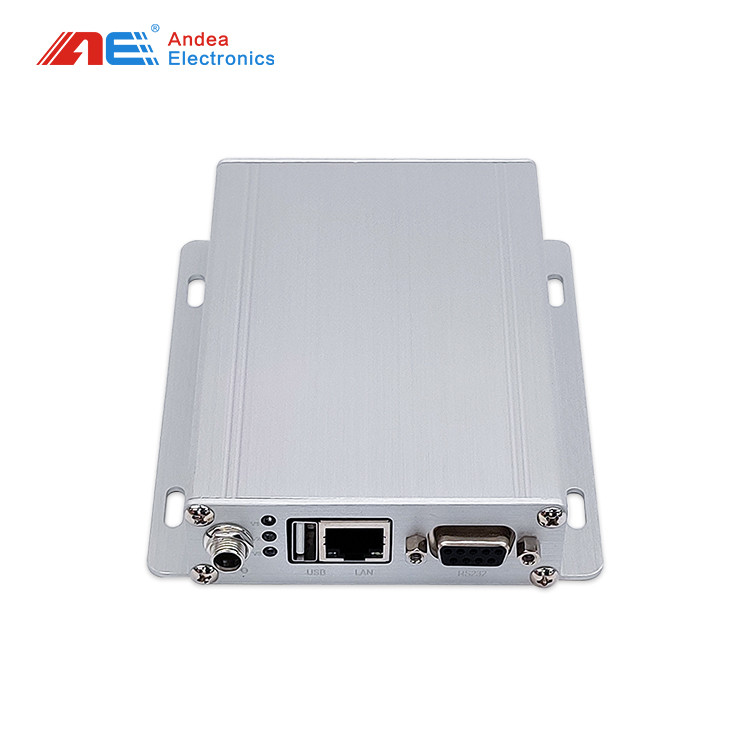

| Communication Interface: | RS232、RS485、USB、Ethernet | Power Interface: | DC2.1 |
| Maximum Power Consumption: | 10W | Dimensions: | 123×105×25mm |
| Material: | Aluminum Alloy | ||
| Highlight: | RS485 Ethernet Interface Reader,USB RS232 Ethernet Interface Reader |
||
1 . Descriptions:
The high-frequency and medium-power reader has high-sensitivity reading and writing performance and adopts a fast anti-collision processing algorithm, and can read tags at a speed of up to 70 tags/second. This product supports electronic tags that comply with the ISO 15693 standard.
2 . Specifications:
|
Name
|
USB RS232 RS485 Ethernet Interface Reader To Work With Android And Windows Systems
|
|
Material
|
Aluminum Alloy |
|
Feature
|
1.It has a fast anti-collision processing algorithm and can read tags at a speed of up to 70 tags/second. 2.Supports multiple communication interfaces: RS232/RS485/Ethernet/USB 3.Built-in temperature sensor, automatic protection when the temperature is too high to prevent the device from burning 4.System error indicator light 5.Supports two working modes, host command mode and active reading mode 6.Inventory supports buffering mode, which can buffer up to 700UIDs 7.Supports turning off radio frequency when idle 8.Supports noise detection and can detect whether there is interference in the environment
|
|
Weight
|
800g |
|
Dimensions
|
123*105*25mm |
|
Standard
|
ISO15693 |
|
MOQ
|
1 Piece |
|
Packaging |
According to your requirements,polybags,vacuum packing
|
|
Payment term
|
T/T, Western Union, Paypal |
3 .Quality Control:
As a professional and practised manufacturing company, we have buit up a series of workable and effective quality control system. Below are two major quality control inspection:
Incoming Quality Control Inspection
1. Purpose:
Checking all incoming material including sub-contractor provide products to ensure the quality meet requirement and nonconformity is found in time so as to prevent released nonconforming incoming material.
2. Scope:
Incoming materials (Expect some material for mold making and ship-to-stock material), including customer-
supplied material and sub-contactor supplied products
3. Definition: N/A
3.1 RMT: RMT is the short form of Reiving Move Ticket.
3.2 MRB: MRB Store means the rejected area assigned by store.
4. Responsibility:
4.1 IQC is responsible for the inspection and test of all in-coming material and parts.
4.2 Purchasing is responsible for informing non-conforming material to vendors / sub-contractors.
5. IQC Flow Chart
Finished Products Inspection:
4 . Applications:
This product supports electronic tags that comply with ISO 15693 standards and is widely used in libraries, file management, production process automation, laundry plant automation management, drug tracking and other fields.
5 . More pictures:
Technical Support:
1. Free SDK, communicaiton protocols and R-Tool (testing & configuration software) provided.
2. Professional hardware and software engineers to give online or offline support.
Pre-sales Service:
As we have rich experien of many RFID projects after ten years development , especially in RFID library management, RFID personnel management (time and attendan management), RFID jewelry management, RFID management, RFID fast food shop management, production line automation, etc., we are able to give recommendation of the most suitable hardware solution in professional advis.
After-sales Service:
As the industry leader in the China RFID industry, we have to prove that we are committed to the confiden of our products. Free warranty is three year for all of our RFID reader and antenna excluding human factor damage.
1.How we can trust you?
We are Alibaba Trade Assurance Supplier and 2 years Ali Gold Supplier
We focus on HF RIFD equipment for 10 years.
Our products have 17patens and copyrights certificates.
Our company has approved ISO9001-2008 quality management system certificate.
Our company is awarded High and New Technology Enterprise and Science and Technology Innovation Small Giant Enterprise by Chinese government.
2. Why choose us?
With us make Win-Win Business Situation!!!
24 *7 hours after sales service
We accept "PayPal", credit card to convenient customer make payment.
Quality Assurance Contract
Full refund in case of bad quality
Online supports if any technique issue.
Both Small Order and Big Order are accepted.
Accept OEM/ODM order.
3. What's your MOQ?
Big Order or Sample Order is accepted by our company.
We understanding new customers may take sample testing to know our quality and service.
4. What is the warranty?
3 years warranty for core device from the date of delivery,A lifetime technical support.
We will return full money to customer if we did not shipping right items as contract.
5. What’s your delivery time?
Around 2~10 working days according to exact order quantity and stock situation.
6. What’s your Payment?
PayPal or T/T (Bank transfer) or Western Union and Ali trade Assurance are accepted.
7. Whether your products could be customized?
Yes,for sure. Please talk to sales about exact requirements.
Andea offer the OEM or ODM service.
