Devote to RFID Technology Research & Development Since 2007
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Andea Electronics |
| Model Number: | RL861 |
| Minimum Order Quantity: | 1 Piece |
| Delivery Time: | 3~5 work days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 500~1000 Sets Per Month |
| Frequency: | 13.56MHz | Protocol: | ISO15693、ISO18000-3M3、ISO14443A |
|---|---|---|---|
| ISO15693 Standard: | 8cm | ISO14443A Standard: | 5cm |
| ISO18000-3M3 Standard: | 4cm | Communication Interface: | USB |
| Power Supply: | 5V（USB Powered） | Maximum Power Consumption: | 0.48W |
| Dimensions(mm): | 49×46.1×10.5 | ||
| Highlight: | RFID Mini USB Card Reader,Contactless Mobile USB Card Reader |
||
1 . Descriptions:

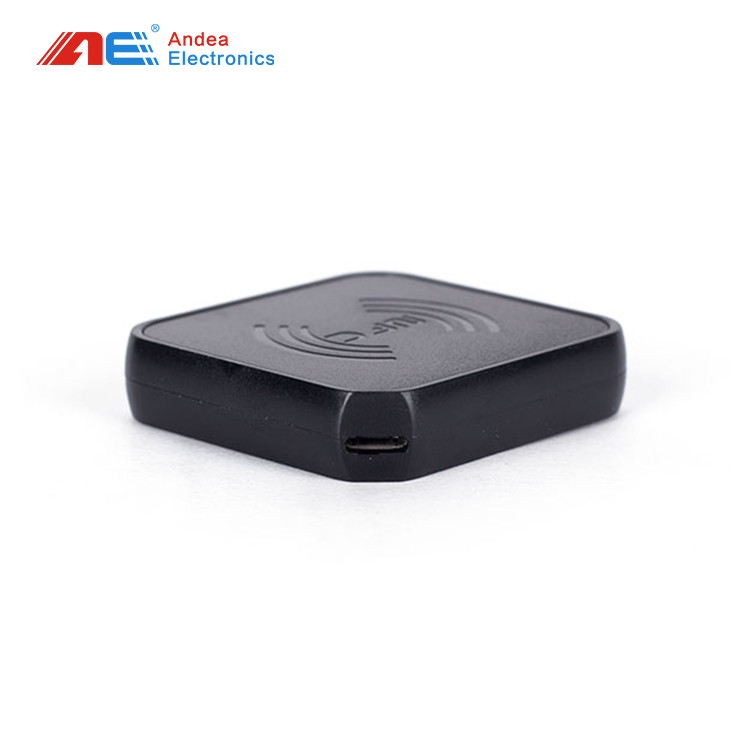

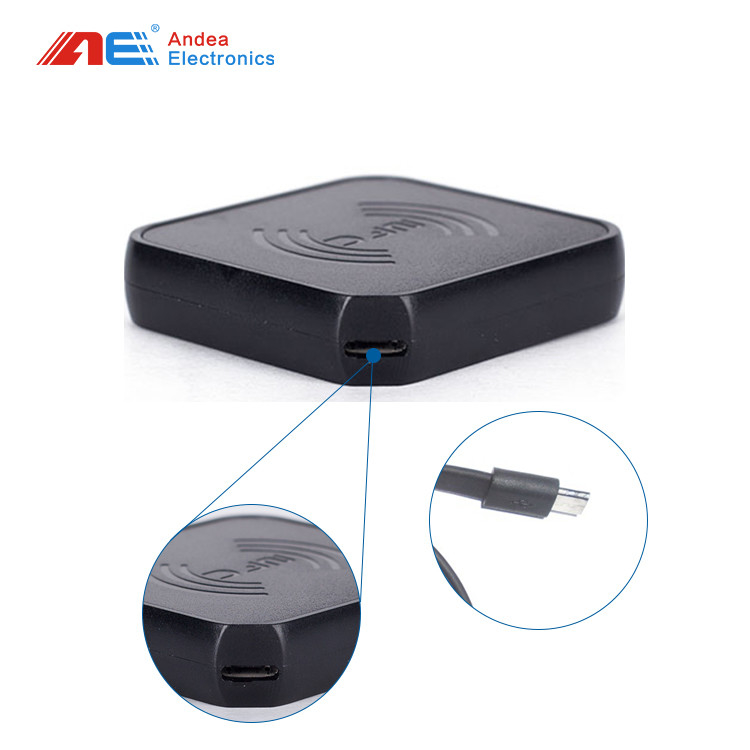

A contactless mobile RFID RS232 mini USB card reader/writer is a portable device that can read and write information on RFID (Radio Frequency Identification) cards. The mini USB port is used to establish a physical connection between the card reader/writer and the computer or mobile device. It allows for data transfer and may also provide power to the device.
2 . Specifications:
|
Name
|
OEM Contactless Mobile RFID Mini USB Card Reader Writer |
|
Material
|
Plastic ABS |
|
Feature
|
1.Working frequency: 13.56MHz 2.Supported protocols: ISO 15693, ISO 18000-3M3 and ISO 14443A standards 3.Supports simultaneous reading of multiple cards using ISO 14443A protocol 4.Supports simultaneous reading of multiple cards using ISO 15693 protocol 5.Supports ISO 18000-3M3 protocol for simultaneous reading of multiple cards (supports zero-distance overlapping reading of tags) 6.Communication interface: USB
|
|
Weight
|
100g |
|
Dimensions
|
49*46.1*10.5mm |
|
Standard
|
ISO15693 |
|
MOQ
|
1 Piece |
|
Packaging |
According to your requirements,polybags,vacuum packing
|
|
Payment term
|
T/T, Western Union, Paypal |
3 .Quality Control:
As a professional and practised manufacturing company, we have buit up a series of workable and effective quality control system. Below are two major quality control inspection:
Incoming Quality Control Inspection
1. Purpose:
Checking all incoming material including sub-contractor provide products to ensure the quality meet requirement and nonconformity is found in time so as to prevent released nonconforming incoming material.
2. Scope:
Incoming materials (Expect some material for mold making and ship-to-stock material), including customer-
supplied material and sub-contactor supplied products
3. Definition: N/A
3.1 RMT: RMT is the short form of Reiving Move Ticket.
3.2 MRB: MRB Store means the rejected area assigned by store.
4. Responsibility:
4.1 IQC is responsible for the inspection and test of all in-coming material and parts.
4.2 Purchasing is responsible for informing non-conforming material to vendors / sub-contractors.
5. IQC Flow Chart
Finished Products Inspection:
4 . Applications:
High-frequency micropower reader/writer products are widely used in desktop card issuance, access control, electronic bills, libraries, finance and other fields

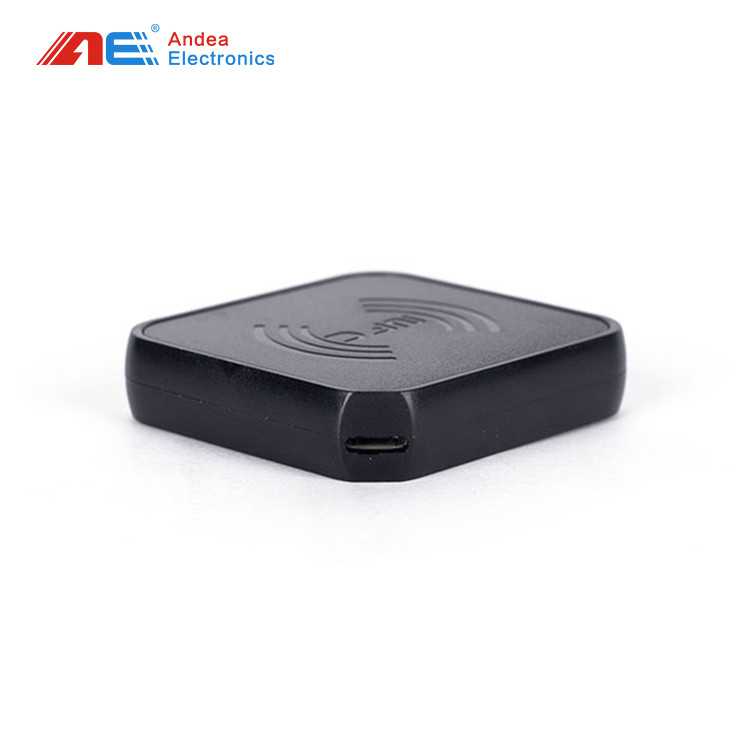

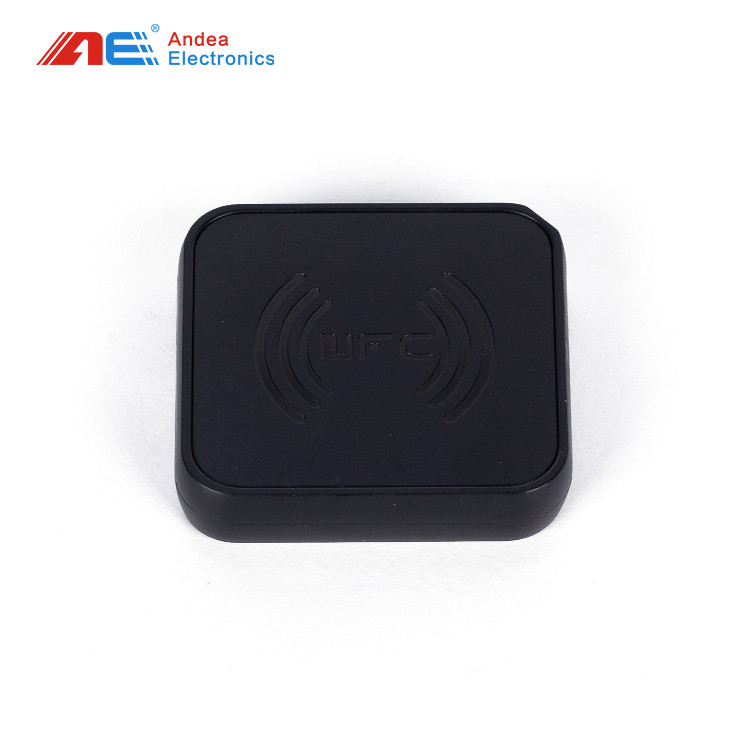

5 . More pictures:
Technical Support:
1. Free SDK, communicaiton protocols and R-Tool (testing & configuration software) provided.
2. Professional hardware and software engineers to give online or offline support.
Pre-sales Service:
As we have rich experien of many RFID projects after ten years development , especially in RFID library management, RFID personnel management (time and attendan management), RFID jewelry management, RFID management, RFID fast food shop management, production line automation, etc., we are able to give recommendation of the most suitable hardware solution in professional advis.
After-sales Service:
As the industry leader in the China RFID industry, we have to prove that we are committed to the confiden of our products. Free warranty is three year for all of our RFID reader and antenna excluding human factor damage.
1.How we can trust you?
We are Alibaba Trade Assurance Supplier and 2 years Ali Gold Supplier
We focus on HF RIFD equipment for 10 years.
Our products have 17patens and copyrights certificates.
Our company has approved ISO9001-2008 quality management system certificate.
Our company is awarded High and New Technology Enterprise and Science and Technology Innovation Small Giant Enterprise by Chinese government.
2. Why choose us?
With us make Win-Win Business Situation!!!
24 *7 hours after sales service
We accept "PayPal", credit card to convenient customer make payment.
Quality Assurance Contract
Full refund in case of bad quality
Online supports if any technique issue.
Both Small Order and Big Order are accepted.
Accept OEM/ODM order.
3. What's your MOQ?
Big Order or Sample Order is accepted by our company.
We understanding new customers may take sample testing to know our quality and service.
4. What is the warranty?
3 years warranty for core device from the date of delivery,A lifetime technical support.
We will return full money to customer if we did not shipping right items as contract.
5. What’s your delivery time?
Around 2~10 working days according to exact order quantity and stock situation.
6. What’s your Payment?
PayPal or T/T (Bank transfer) or Western Union and Ali trade Assurance are accepted.
7. Whether your products could be customized?
Yes,for sure. Please talk to sales about exact requirements.
Andea offer the OEM or ODM service.
