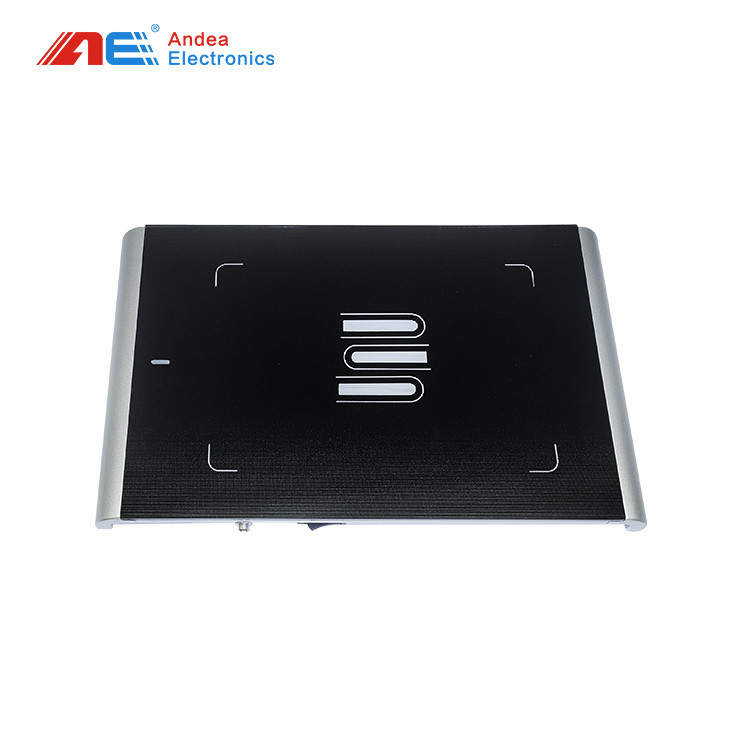

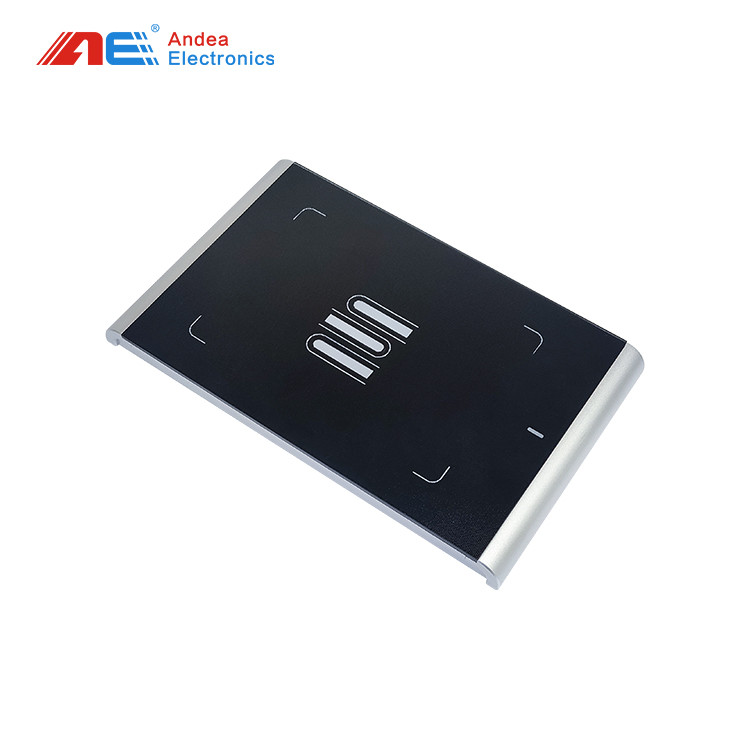

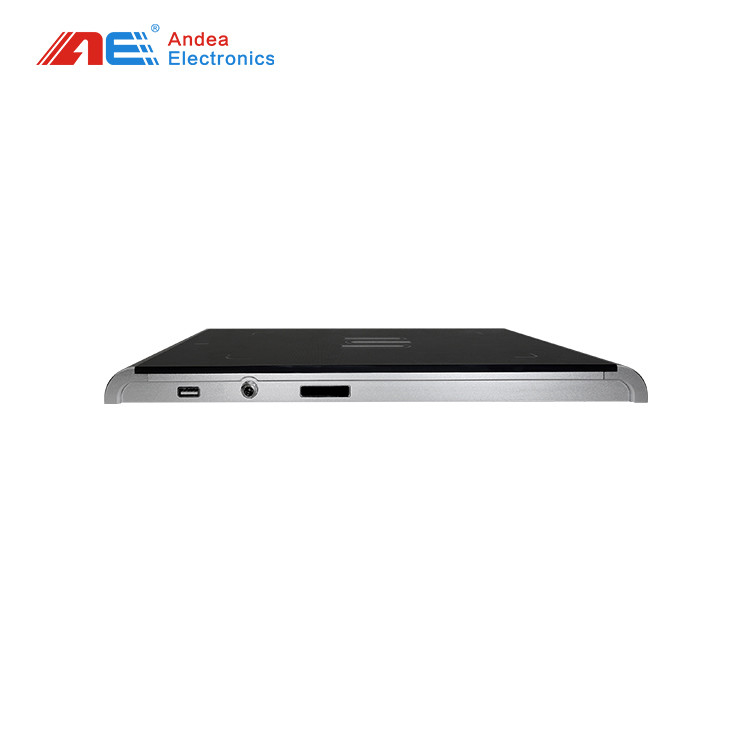

Long Range Dual Frequency 13.56MHz And 860-960MHz Reader RFID Card Reader RFID Desktop Reader

Long Range Dual Frequency 13.56MHz And 860-960MHz Reader RFID Card Reader RFID Desktop Reader



1 . Descriptions:



The Long Range Dual Frequency RFID Card Reader is capable of reading RFID tags operating at both 13.56MHz and 860-960MHz frequencies. It is designed specifically for desktop use and offers an extended read range for efficient and convenient reading of RFID cards.

The reader supports popular RFID protocols such as ISO 14443A/B, ISO 15693, and ISO 18000-6C (EPC Gen2). This allows it to be compatible with a wide range of RFID cards, including NFC cards and UHF tags.

With a desktop reader, you can easily integrate it into your existing systems or applications using the provided SDK (Software Development Kit). The SDK typically includes documentation, sample codes, and libraries to assist you in developing software to interact with the reader.

The reader also offers additional features such as anti-collision technology, which ensures reliable and accurate reading of multiple tags simultaneously. It may also include additional security features like encryption and authentication to ensure data privacy and integrity.



2 . Specifications:



Name	Long Range Dual Frequency 13.56MHz And 860-960MHz Reader
Material	Acrylic and aluminum alloy
Feature	1.Can support both HF band and UHF band, making tag reading and writing more flexible 2.Supports reading and writing tags from multiple manufacturers 3.Built-in temperature detection function for real-time temperature monitoring 4.Supports automatic protection of reading and writing module temperature abnormality 5.The communication interface adopts HID driver-free USB interface 6.Anti-metal design can prevent reading from surrounding books and adapt to various environments 7.The sensing panel is made of scratch-resistant acrylic material, which is practical and wear-resistant.
Weight	1835g
Dimensions	337*214.1*29mm
Standard	ISO18000-6C/EPCglobal Gen2/13.56MHz
MOQ	1 Piece
Packaging	According to your requirements,polybags,vacuum packing
Payment term	T/T, Western Union, Paypal



3 .Quality Control:



As a professional and practised manufacturing company, we have buit up a series of workable and effective quality control system. Below are two major quality control inspection:



Incoming Quality Control Inspection



1. Purpose:

Checking all incoming material including sub-contractor provide products to ensure the quality meet requirement and nonconformity is found in time so as to prevent released nonconforming incoming material.



2. Scope:

Incoming materials (Expect some material for mold making and ship-to-stock material), including customer-

supplied material and sub-contactor supplied products



3. Definition: N/A

3.1 RMT: RMT is the short form of Reiving Move Ticket.

3.2 MRB: MRB Store means the rejected area assigned by store.



4. Responsibility:

4.1 IQC is responsible for the inspection and test of all in-coming material and parts.

4.2 Purchasing is responsible for informing non-conforming material to vendors / sub-contractors.



5. IQC Flow Chart

Finished Products Inspection:



4 . Applications:



It is widely used in book/file management, jewelry inventory, drug management, store counter settlement and other fields.

5 . More pictures:





Support and Services:

Technical Support:

1. Free SDK, communicaiton protocols and R-Tool (testing & configuration software) provided.

2. Professional hardware and software engineers to give online or offline support.

Pre-sales Service:

As we have rich experien of many RFID projects after ten years development , especially in RFID library management, RFID personnel management (time and attendan management), RFID jewelry management, RFID management, RFID fast food shop management, production line automation, etc., we are able to give recommendation of the most suitable hardware solution in professional advis.

After-sales Service:

As the industry leader in the China RFID industry, we have to prove that we are committed to the confiden of our products. Free warranty is three year for all of our RFID reader and antenna excluding human factor damage.
