| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Andea Electronics |
| Model Number: | RD5112 |
| Minimum Order Quantity: | 1 Piece |
| Packaging Details: | Standard Export Carton, Foam and Protective Film |
| Delivery Time: | 3~5 work days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 500~1000 Sets Per Month |
| Frequency: | 13.56MHz | Protocol: | ISO15693,EPC C1G2/ISO-18000-6C |
|---|---|---|---|
| Interface: | RS232 | Type: | Hf Rfid Reader,rfid Reader Long Range |
| Product Name: | Long Range Rfid Reader | Color: | White |
| Operating Voltage: | 12 V | Dimension: | 203.5×182.5×32mm |
| High Light: | 12 Channels HF RFID Reader,RS232 HF RFID Reader,Long Range RFID Reader |
||

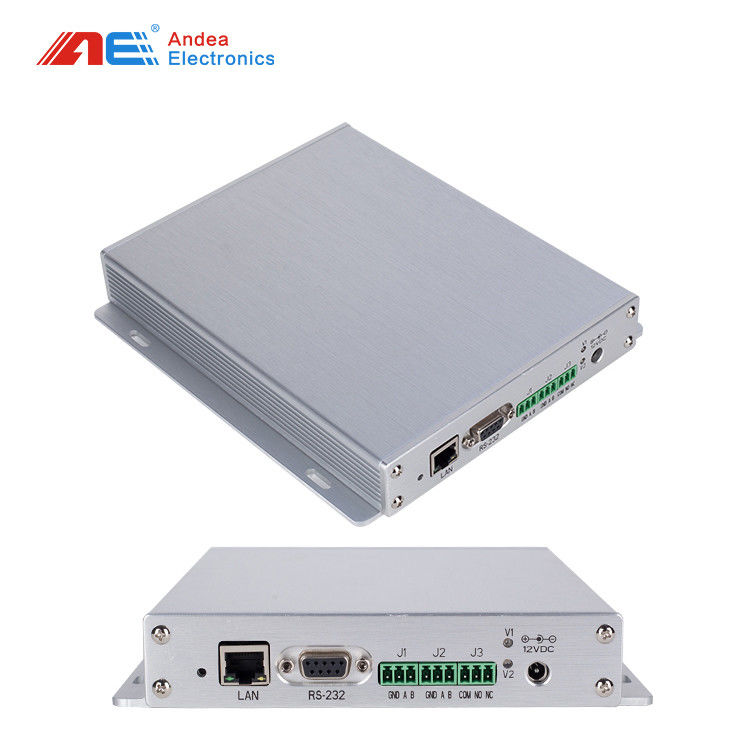

ISO18000-3M1 RS232 High Power HF RFID Reader,With 12 Channels
Product Introduction:
The RD5112 reader is dsesigned with external antenna interfaces.The antenna interface uses a standard SMA male connector with a matching impedance of 50Ω as shown below .The reading range could be as much as 85cm when link with suitable antenna to read standard cards. It has been deployed in RFID integration projects for intensive reading and long range reading. It is compliant with ISO15693 and ISO18000- 3M1 protocols and provides a series of optional communication interfaces such as RS232 and Ethernet, which is convenient for hardware integration. It also integrates various input/output ports for data transfer.
| Technical Specification | |
| Model | RD5112 |
| Operating Frequency | 13.56 MHz |
| Compatible Protocols | ISO 15693 and ISO 18000-3M1 |
| RF Power | 1-8W |
| Antenna Interface | SMA*12 |
| Communication Interface | RS232 / RS485 and Ethernet |
| Working Voltage | DC 12V |
| Max Power Consumption | ≤18W |
| GPIO | 1 Relay / 1 MOS |
| EMI Detection | Support |
| Housing Material | Metal Plate |
| Dimension | 203.5*182.5*32mm |
