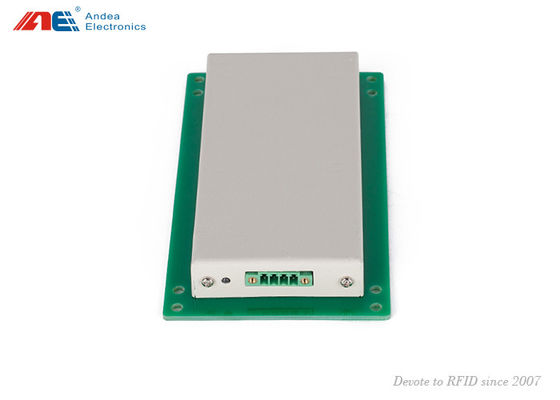

Embedded Proximity Anti-metal 13.56MHz RFID Reader 12V DC

Basic Information

Place of Origin:	CHINA
Brand Name:	Andea Electronics
Model Number:	RL86P

Minimum Order Quantity:	1 Piece
Packaging Details:	Standard Export Carton, Foam and Protective Film
Delivery Time:	3~5 work days
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	500~1000 Sets Per Month

Get Best Price Contact Now

Operating Frequency:	13.56MHz	Compatible Protocols:	ISO18000-3M3 , ISO15693 , ISO14443A/B
Communication Interface:	RS232	Voltage:	12V DC
Max Power Consumption:	1.6 W	Dimension:	160 X 90 X 22 Mm
Highlight:	rfid multi reader , integrated rfid reader

Embedded Proximity Anti-metal Design 13.56MHz RFID Reader Module

Product Introduction:

RL86P is one kind of multiple protocols 13.56MHz reader , it is compatible with ISO14443A/B, ISO15693, ISO18000-3M3. Together with anti-collision algorithms, it can read multiple tags with different protocols simultaneously. with anti-metal design, RL86P can be embedded in various industrial machine .

Technical Specification:

Model	RL86P
Operating Frequency	13.56 MHz
Compatible Protocols	ISO 15693, ISO 14443A/B, ISO 18000-3M3
Compatible Tags	NFC Forum Type 1: Innovision Topaz512 NFC Forum Type 2: Mifare Ultralight, Mifare Ultralight C, Mifare Ultralight EV1, NTAG21x. NFC Forum Type 3: Sony Felica [only support Polling] NFC Forum Type 4: Mifare DESFire EV1 NFC Forum Type 5: ICODE SLI ,ICODE SLIX ,ICODE SLIX2 ,Tag-it HF- I plus Mifare Classic Type: Mifare S50, Mifare S70 ,Mifare Mini ISO18000-3M3 Type: ICODE ILT ST ISO14443B Type: SRIX4K, SRI512, ST25TB512-AC
Communication Interface	RS232
Reading Range	ISO 15693 :11cm
	ISO 14443A:7cm
	ISO18000-3M3 : 6cm
Anti-collision Algorithm	Support
Anti-metal Design	Yes
Working Voltage	DC 12V
Max Power Consumption	1.7W
Dimension	160 x 90 x 22mm
Weight	225 g

Application:

KIOSK Machine
management
Laundry automation
Self-service Library
Charging Pile
Acss Control
Parking Card Dispenser
Intelligent Tracking Cabinet
