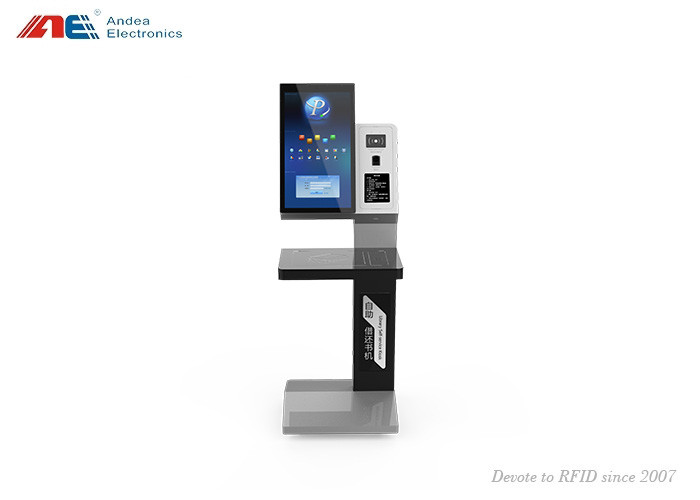

RFID Library Automation Management Books Check In / Out Self Service Kiosk Machine

RFID Library Automation Management Books Check In / Out Self Service Kiosk Machine
RFID Library Automation Management Books Check In / Out Self Service Kiosk Machine

Large Image :  RFID Library Automation Management Books Check In / Out Self Service Kiosk Machine

Product Details:
Place of Origin: CHINA
Brand Name: Andea Electroncis
Model Number: SSK100
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Packaging Details: Standard Export Carton, Foam and Protective Film
Delivery Time: 3~5 work days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 50~100 Sets Per Month
Detailed Product Description
Protocol: ISO15693 And ISO18000-3 Power Supply: 220VAC,50HZ
Operating System: Support Win7, Win10 Systems Card Reader: ISO15693 And ISO14443
Equipment Interface: 10M/100M Ethernet Interface, 1 Standard U Port, 1 Power Switch Camera: 3 Million High-definition Fa Recognition Camera
High Light:

library security gates

,

rfid library management system


RFID Library Automation Management Books Check In Out Self Service Kiosk Machine


Product Introduction

The self-service kiosk is a kind of intelligent equipment used for readers borrowing and returning books and materials by themselves. It is equipped with touch display screen and simple operation human-computer communication interface, graphical interface, connected with library automation system data through protocol or other network and special interface. It helps the library to increase the circulation rate of books, simplify the borrowing and returning pross, and facilitate readers to quickly and accurately complete the borrowing and returning, thereby improving for library staff's work efficiency and service quality.


Product Parameters


Hardware Specification

Industrial Control Host

(optional)

Windows:

  • The industrial host control adopts a new generation of processors, high-speed chipsets, low power consumption, fast running speed, 3C certificated
  • Working temperature -20~60 degrees;
  • Win10 system, Intel-i3-4th generation CPU
  • 8G memory, 128G solid state drive
  • WiFi (4G is optional)
  • Configuration can also be customized according to needs.

Android:

  • Rockchip’s chip, low power consumption
  • High performan 28nm HKMG pross, super quad-core Cortex-A17, RK3288 motherboard
  • Memory 2GB 8GB flash 3*RS232 1*RS485 4*USB Ethernet WiFi Bluetooth
  • Working temperature -20~60 degrees
  • Android 7.1 system
  • 4G full netcom module is optional
Capacitive Touch Display Screen
  • Embedded industrial touch screen, sensitive, high temperature resistant, shockproof and explosion-proof
  • Ten-point capacitive touch, durability: withstand more than 60,000,000 single-point touches, response speed: <2ms, positioning accuracy: more than 99% of the touch area is ± 3mm, minimum touch body: ≥1mm any current sensing object of the human body, scan rate: 60scans/s
  • Touch resolution: 32767×32767, light transmittan: >91%, 3mm full tempered high-modulus 7-level explosion-proof glass
  • 23.6 inch display screen: resolution: 1920×1080, display ratio: 16:9,
  • Backlight type: LED liquid crystal display
  • Viewing angle: 85/85/80/80, color depth: 16.7M, brightness: 250cd/m², response Time: ≤5ms.
  • Port: 1×power, 1×VGA, 1×HDMI
Camera
  • Use Aptina's CMOS and Taiwan's new DSP technology to achieve high-quality image output.
  • The integrated structure design of the product itself has functions such as automatic white balance, AE, etc., which can adjust the camera parameters according to the actual situation to meet the application of the camera in different environments, and add lightning protection
  • Monocular, the highest definition: 1920*1080 , backlight compensation 3 million pixels, transmission rate: 480MB/S

Book Identification Area

HF:

  • Support protocol: ISO15693 and ISO18000-3 standards;
  • Operating frequency 13.56MHz;
  • maximum output power is 1.5W;
  • Metal shielding design which can be embedded in metal equipment;
  • Integrated design; stable product, fast card reading speed;
  • Communication interface RS232;
  • Identification area: 250*300mm

UHF:

  • Operating frequency 860~960MHz;
  • Support EPCglobal Gen 2, ISO 18000-6C standard;
  • Maximum gain 32db;
  • Identification area: 250*300mm

Library Card Identification Area

  • High-frequency multi-protocol reader RL86S;
  • Support 15693, 14443A, 14443B (read-only physical card number) reader card (optional ID card and 2-in-1 card reader)

Barcode and QR Code Scanner

(optional)

  • Professional embedded two-dimensional scanning platform, professional book barcode scanner, can easily read one-dimensional barcode and two-dimensional code of mobile phones with various screen brightness.
  • Built-in super-sensitive response module, fast sensing, fast barcode reading, soft light prossing;
  • Light sour 5600K LEDs (illumination), Image sensor 752pixels(H)*480 pixels(V), Prossor ARM32-bit; Super large viewing angle up to 115 °*90°, ambient light resistance 100000Lux

Thermal Printer

(optional)

  • Professional 80mm reipt thermal printer, supports electric door opening and paper change
  • Printing density: 8 dots/mm.
  • Printing direction: Paper feeding direction
  • Printing speed: 150mm/s (Max)
  • Paper width: 79.5±0.5mm.
  • Effective printing width: 72mm.
  • Paper handling method: automatic paper cutting.
  • Line width: 3.75mm
  • Serial communication
  • With 3C and certification

Speaker

  • 8 ohm 5W, cabinet speaker, signal-to-noise ratio 90 (dB) sensitivity 90 (dB/W) four-pin audio connector

Cabinet

  • The equipment is made of high-quality sheet metal with fine craftsmanship;
  • The surface is treated with environmentally friendly spraying, smooth and clean; Durable and not easy to corrode;
  • Professional and unique appearance, simple and intuitive;
  • Ultra-thin platform design, modular structure design of the whole machine, in line with ergonomics
  • Safe to use and easy to maintain

Equipment Interface

  • Power button, WiFi, 1 USB port, 1 network interface

Power Module

  • Input: 200-240V, output: 12V 12.5A, power 150W, 3C and certification;
  • Working temperature range: -30℃ to +70℃;
  • Can withstand 300VAC input surge voltage for 5s, output short circuit, overcurrent, overvoltage, Over temperature protection


Product Features Developed by by RFID Library Software Solution Provider

1. Use SIP2.0 standard exchange protocol, connect via TCP/IP or serial port, use international standard format communication protocol and various circulation systems to be compatible with the library's existing library management software to achieve seamless link.
2. Provide readers with self-service servis such as borrowing, returning, inquiring, and renewing books.
3. The touch screen provides visual interactive prompts in Simplified Chinese, English and other languages. Misoperation can be equipped with voi or text prompts.
4. The system can be set to support continuous single book borrowing and returning, multiple books borrowing and returning or two mixed working modes.
5. The system has a return function that readers can choose. The system can be set by the librarian to borrow books or return books only.
6. Support various types of library cards through multi-function reading and writing equipment and supporting software system, and support the identification of various types of library cards used in the library: second-generation resident ID card, IC reader card, RFID reader card, etc.
7. After the operation is completed, the reipt can be automatically printed, and a variety of reipt formats are provided for the library to choose.
8. Able to use RFID chip borrowing and returning and barcode scanning at the same time, to support single or multiple books borrowing.
9. The equipment is compact in design and beautiful in appearance, and can be easily integrated into the library's furniture facilities and library business implementation environment.
10. The system can be seamlessly connected with the library back-end management system.
11. The self-service check-in and check-out kiosk system software is equipped with reader card identification, book borrowing, book return, abnormal operation reminder , receipt printing functions.
