Devote to RFID Technology Research & Development Since 2007
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Andea Electronics |
| Model Number: | G302 |
| Minimum Order Quantity: | 1 Piece |
| Packaging Details: | Standard Export Carton, Foam and Protective Film |
| Delivery Time: | 3~5 work days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 500~1000 Sets Per Month |
| Operating Frequency: | 13.56 MHz | RF Power: | 3-8W |
|---|---|---|---|
| Alarm Function: | Support | Infrared Function: | Support |
| EMI Detection: | Support | Communication Interface: | Ethernet And RS232 |
| High Light: | rfid door reader,rfid gate antenna |
||
Product Introduction:

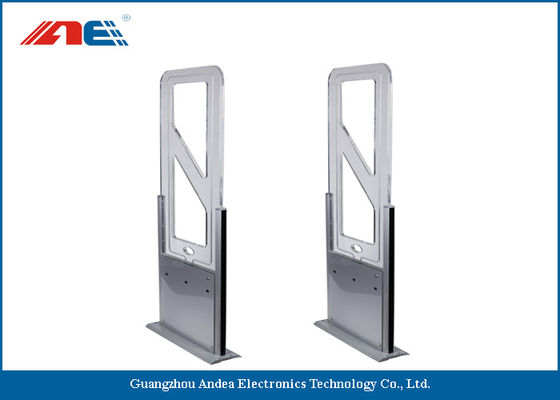

G302 RFID gate reader is barrier-free and automatically check-in channel device which incorporates long range HF reader, antenna, infrared sensor and sound & light alarm device. Using the acrylic material and integrated design, it support reading/writing tags applying with ISO/IEC15693.It has fast anti-collision analysis ability.
Basing on the features, it is an ideal solution for open conference attendance system, barrier-free access, access control, digital snic as well as valuables security, cargo channel orientation identification, etc.
Product Features:
| Technical Specification | |
| Model | G302 |
| Compatible Protocols | ISO 15693 and ISO 18000-3M1 |
| RF Power | 3-8W |
| EMI Detection | Support |
| Cascade Operation | Support |
| Aisle Width | 70-120cm |
| Power Supply | AC 100-240V 50-60Hz |
| Max Power Consumption | 32W (Rated Power 25W) |
| Housing Material | Acrylic and Metal Plate |
|
Dimension (L*W*H) |
Whole: 1556*635*180mm Antenna: 1550*57*58mm Base: 635*180mm |
| Weight | 22 kg/pc |
| Working Temperature | -20℃~60℃ |
| Storage Temperature | -45℃~85℃ |
| Relative Humidity | 5%~80% |
Product Application:
RFID school attendance system, meeting attendance system, exhibiton attendance system, enterprise access control system, etc.
Application Photo:
