Devote to RFID Technology Research & Development Since 2007
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Andea Electronics |
| Model Number: | M20 Micro |
| Minimum Order Quantity: | 1 Piece |
| Packaging Details: | Standard Export Carton, Foam and Protective Film |
| Delivery Time: | 3~5 work days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 500~1000 Sets Per Month |
| Compatible Protocols: | ISO15693 And ISO18000-3M1 | RF Power: | 0.25-1.5W |
|---|---|---|---|
| Working Voltage: | DC 3.3-12V | EMI Detection: | Support |
| Dimension: | 60*37.5*5mm | Weight: | 15g |
| High Light: | rfid read write module,hf rfid reader module |
||
Product Introduction:

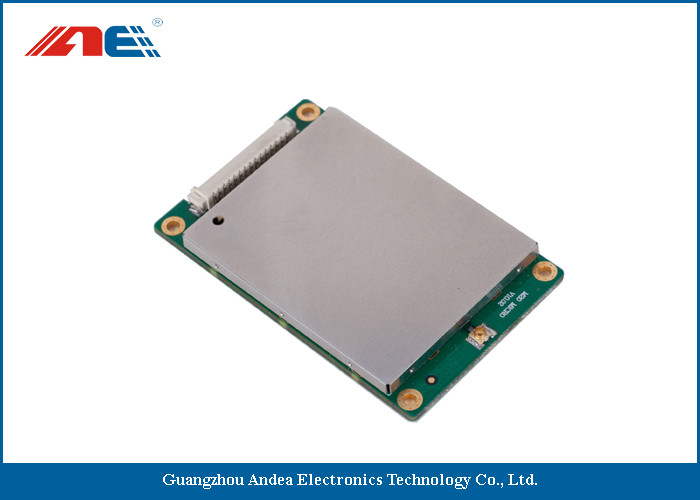

This high frequency medium power RFID reader module supports ISO 15693 and ISO 18000-3 mode 1 protocols. It is designed as a embedded reader module for those device requires for small volume. Size only 60*37.5*5mm could be easily built in those device. It provides a TTL communication interface for engineers easily integrating this reader module with existing equipment. Also, the working voltage is from 3.3V to 12V, that would be convenient to power supply. Radio Frequency Power is from 0.25 to 1.5W adjustable, which combines with its anti-collision algorithm could be perform perfectly when identify multiple tags.
Product Features:
| Technical Specification | |
| Model | M20 Micro |
| Operating Frequency | 13.56 MHz |
| Compatible Protocols | ISO 15693 and ISO 18000-3M1 |
| RF Power | 0.25-1.5W |
| Communication Interface | TTL |
| Reading Range | 65cm |
| Working Voltage | DC 12V |
| Working Current | ≤400mA |
| Max Power Consumption | 3.5W |
| EMI Detection | Support |
| Dimension | 60*37.5*5mm |
| Weight | 15g |
Product Application:
The 13.56 MHz high-frequency RFID modules enable contactless, close-proximity tag reading and are popularly used in high security and fast data collection applications. Some of the cost common application usages for this kind of modules include direct replament of the magnetic stripe reader to RFID reader. The modules can also be uses for many different applications such as access control, product authentication & anti-counterfeiting, handheld reading/encoding, item-level inventory management, patron management, patient safety and printing/encoding.
