RFID Asset Management HF RFID Passive Reader For RFID Inventory Tracking DC 12V Voltage

RFID Asset Management HF RFID Passive Reader For RFID Inventory Tracking DC 12V Voltage
RFID Asset Management HF RFID Passive Reader For RFID Inventory Tracking DC 12V Voltage

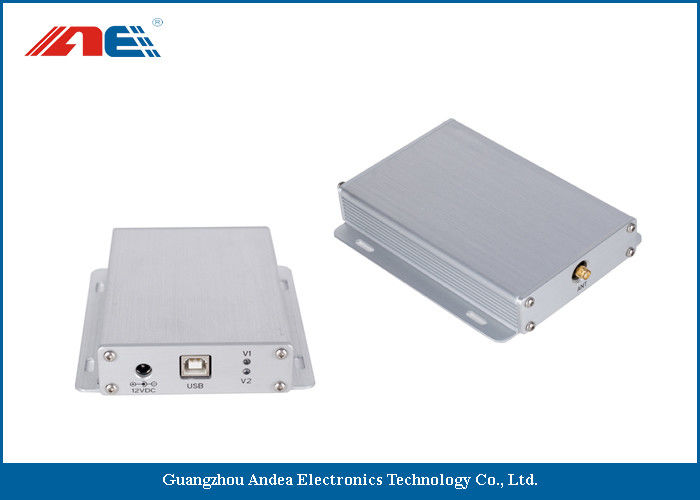

Large Image :  RFID Asset Management HF RFID Passive Reader For RFID Inventory Tracking DC 12V Voltage

Product Details:
Place of Origin: CHINA
Brand Name: Andea Electronics
Model Number: RD201-U
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Packaging Details: Standard Export Carton, Foam and Protective Film
Delivery Time: 3~5 work days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 500~1000 Sets Per Month
Detailed Product Description
Compatible Protocol: ISO 15693 Antenna Interface: SMA
Working Voltage: DC 12V Max Power Consumption: 2.8W
EMI Detection: Support Housing Material: Aluminum Alloy
High Light:

multi frequency rfid reader

,

wireless rfid card reader


USB Interface Stationary RFID Reader RF Power 0.25 - 1.5W At 13.56MHz


Product Introduction:



RD201-U HF mid range stationary RFID reader is compatible with ISO 15693 and ISO 18000-3 protocols. Radio frequency power of this reader is adjustable from 0.25W to 1.5W according to the application files. Its high identification rate and advand anti-collision algorithm allows fast processing, reading speed is up to 50 Pieces per second. USB communication interface is easy for connection with other device. There are host mode and scan mode two work modes for choice accoding to your needs.



Product Features:



  • Operating Frequency: 13.56 MHz
  • Compatible Protocols: ISO15693 and ISO18000-3M1
  • RF Power: 0.25-1.5W
  • Antenna Interface: SMA
  • Communication Interface: USB
  • Anti-collision Algorithm: Support
  • Reading Speed: Up to 50pcs per second
  • Reading Range: 65cm (Related with the antenna and tag)
  • Working Voltage: DC12V, ≤300mA
  • Max Power Consumption: 2.8W
  • Be integrated with 1 relay output
  • Host and Scan Mode: Support (set through software)
  • Support EMI detection to check surrounding interference
  • Support to turn off radio frequency automatically when at task idle



Technical Specification
Model RD201-U
Operating Frequency 13.56 MHz
Compatible Protocols ISO 15693 and ISO 18000-3M1
RF Power 0.25~1.5W
Antenna Interface SMA
Communication Interfa USB
Working Voltage DC 12V
Max Power Consumption 2.8W
EMI Detection Support
Housing Material Aluminum Alloy
Dimension 136*105*25mm
Weight 280g


Product Application:



It can be widely applied in many RFID application systems such as logistics, personnel identification, conference attendance system, access control, anti-counterfeit and industrial production process control system.
