High Frequency RFID Reader RFID Gate Entry Systems , RFID Gate Access Control 23kg / Pc

China High Frequency RFID Reader RFID Gate Entry Systems , RFID Gate Access Control 23kg / Pc supplier

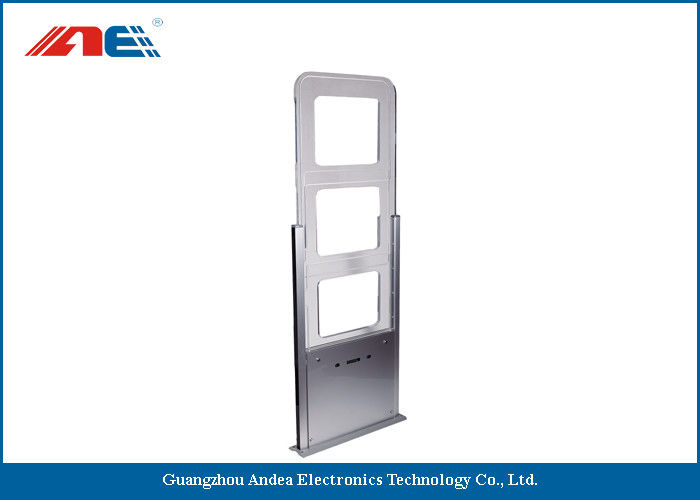

Large Image :  High Frequency RFID Reader RFID Gate Entry Systems , RFID Gate Access Control 23kg / Pc

Product Details:

Place of Origin: China
Brand Name: AE
Certification: CE, FCC
Model Number: LSG405

Payment & Shipping Terms:

Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: Standard Export Carton, Foam and Protective Film
Delivery Time: 3-5 Work Days
Payment Terms: L/C, T/T, Western Union,Paypal
Supply Ability: 200 Pieces Per Month
Contact Now
Detailed Product Description
Compatible Protocols: ISO 15693 And ISO 18000-3 RF Power: 1-8W
Infrared Function: Support EMI Detection: Support
Working Temperature: -20℃~60℃ Storage Temperature: -45℃~85℃


3D RFID Gate Reader Antenna High Frequency 13.56MHz Aisle Width 90CM



Product Introduction:



The RFID library security gate integrates 3D intelligent technology and it can detect any directions in the 3D space of device induction zone; The equipment supports electronic tags in accordance with ISO/IEC 15693 and ISO 18000-3 standard from multiple vendors, both AFI and EAS safety test model available; Its system supports up to 10pcs gates at the same passageway. Aisle identification distance is above 90cm (The identification distance is related with tag performance, size, site environment and so on). This product can be widely used in library/archives in and out of guard against theft, brand clothing store security and other fields.





Product Features:



  • Be compatible with ISO15693 and ISO18000-3 protocols at 13.56MHz working frequency
  • The aisle width could be up to 90cm and make a group of 10pcs gates at the same entrance
  • Default RF power of the security gate is 4W, the highest power for the antenna of the gate can not be more than 6W.
  • Integrated infrared sensor cutting analysis, realize the flow statistic
  • Support a variety of security models: EAS, AFI, EAS+AFI
  • Perfect 3D omni-directional induction technology, non-blind are between each two gates
  • Support EMI (electro-magnetic interference) detection to find if there is interference nearby
  • Support three roads relay linkage output, one road MOS linkage output
  • Built-in sound and light alarm prompt function, adjustable volume
  • Communication Interface: Ethernet (TCP/IP)





Technical Specification
Model LSG405
Compatible Protocols ISO15693
Alarm Mode EAS, AFI and EAS+AFI
Passive Alarm Support
EMI Detection Support
Aisle Width 90cm
Power Supply AC 100-240V 50-60Hz
Max Power Consumption 30W (Rated Power 20W)
Housing Material Acrylic and Metal Plate

Dimension

(L*W*H)

Whole: 1664*636*118mm

Antenna: 1645*600*44mm

Base: 636*118mm

Weight 23 kg/pc
Working Temperature -20℃~60℃
Storage Temperature -45℃~85℃
Relative Humidity 5%~80%





High Frequency RFID Reader RFID Gate Entry Systems , RFID Gate Access Control 23kg / Pc




Product Application:



RFID library management, RFID archive management, etc.





Product Brochure:



HF Library Security Gate.pdf
