High Frequency RFID Reader Multiple Tags Long Range Reading For Inventory System

China High Frequency RFID Reader Multiple Tags Long Range Reading For Inventory System supplier

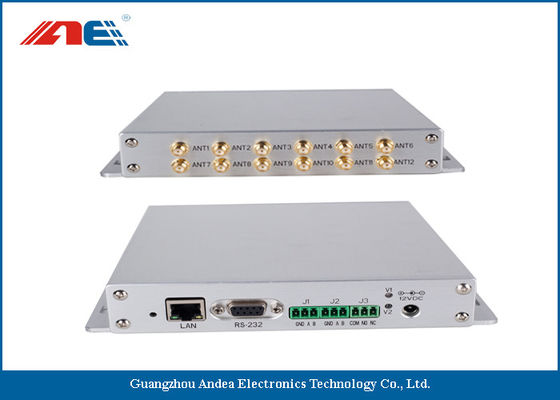

Large Image :  High Frequency RFID Reader Multiple Tags Long Range Reading For Inventory System

Product Details:

Place of Origin: China
Brand Name: AE
Certification: CE, FCC
Model Number: RD5112

Payment & Shipping Terms:

Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: Standard Export Carton, Foam and Protective Film
Delivery Time: 3-5 Work Days
Payment Terms: L/C, T/T, Western Union,Paypal
Supply Ability: 500 Pieces Per Month
Contact Now
Detailed Product Description
Operating Frequency: 13.56MHz RF Power: 1-8W
Reading Range: 90cm Anti-collision Algorithm: Support
Dimension: 216*183*32mm Weight: 1135g


12 Channels Stationary RFID Reader High Frequency Long Range Reading



Product Introduction:





This high frequency stationary RFID reader features high sensitivity and provides stable reading and writing performance. The reading range could be as long as 90cm when link with suitable antenna to read standard cards. It has been deployed in RFID integration projects for intensive reading and long range reading. It is compliant with ISO15693 and ISO18000- 3 protocols and provides a series of optional communication interfaces such as RS232/485 and Ethernet, which is convenient for hardware integration. It also integrates various input/output ports for data transfer. This high speed reader is used in access control and attendance system, logistics, warehouse management, jewelry retailing as well as drug management and anti-counterfeiting.





Product Features:



  • Self-intellectual property
  • Support ISO/IEC 15693 protocol tags
  • RF output power 1-8W
  • Advanced anti-collision algorithm, high identification rate, typical tag process speed is over 50tags/second
  • Support standard 50ohm RFID antenna with effective sistance up to 90cm
  • Support host and scan mode
  • Support addressable multiple antenna ports
  • Support reader network
  • Low power dissipation design
  • Provide DLL and demonstration software source code to facilitate further development





Technical Specification
Model RD5112
Operating Frequency 13.56 MHz
Compatible Protocols ISO 15693 and ISO 18000-3
RF Power 1-8W
Antenna Interface SMA*12
Communication Interface RS232 / RS485 and Ethernet
Working Voltage DC 12V
Max Power Consumption ≤18W
GPIO 1 Relay / 1 MOS
EMI Detection Support
Housing Material Aluminum Alloy
Dimension 216*183*32mm
Weight 1135g




Product Application:



Andea's high frequency long range stationary reader has been successfully applied in many RFID application systems such as library entrance control, logistics, personnel identification, conference attendance, access control, anti-couterfeit, healthcare process & medical industry and industrial process control.





Product Brochure:



HF Long Range RFID Reader.pdf
