Devote to RFID Technology Research & Development Since 2007
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Andea Electronics |
| Model Number: | ANT02 |
| Minimum Order Quantity: | 1 Piece |
| Packaging Details: | Standard Export Carton, Foam and Protective Film |
| Delivery Time: | 3~5 work days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 500~1000 Sets Per Month |
| RF Interface: | SMA | Antenna Impedance: | 50Ω |
|---|---|---|---|
| Reading Range: | 65cm | Dimension: | 350*330*22mm |
| Weight: | 770g | Housing Mateiral: | ABS |
| Highlight: | rfid antenna,rfid pcb antenna |
||

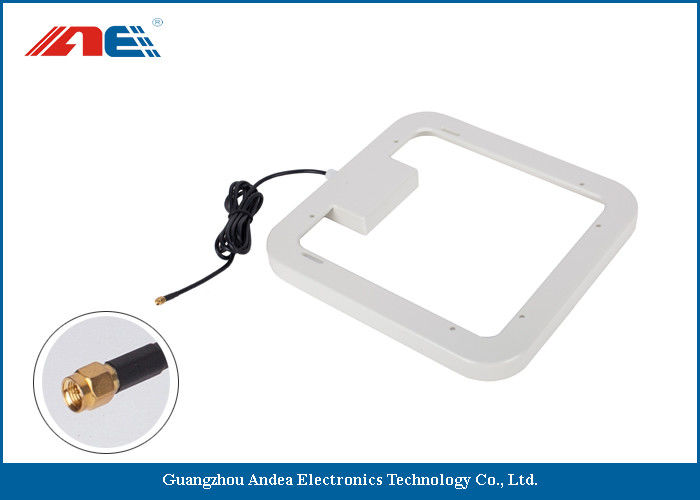

Product Introduction:
This high frequency RFID antenna is designed for use with medium to high power readers and is intended for applications with demands for long distance identification such as industrial auto control system, production tracing, goods and livestock identification, and document management. It is compliant with ISO15693 and ISO18000-3 standards. This antenna offers a long reading distance of up to 100 cm when dual antennas are used.
HF Antenna ANT02 is distributed, already adjusted for most applications ex works. By means of jumpers the antenna can be adjusted to changing surrounding conditions, optimally.
Features:
| Technical Specification | |
| Model | ANT02 |
| Operating Frequency | 13.56 MHz |
| RF Interface | SMA |
| Reading Range | 65cm |
| Antenna Impedance | 50Ω |
| Max Support Power | 6W |
| Feeder Length | 2m |
| Housing Material | ABS |
| Dimension | 350*330*22mm |
| Weight | 770g |
Product Application:
Typical applications for the antenna are libraries, document tracking, video shops, logistics at conveyor belts or sorting systems, access control and industrial data acquisition. The antenna can be employed in indoor- and outdoor use.
Application Picture :
