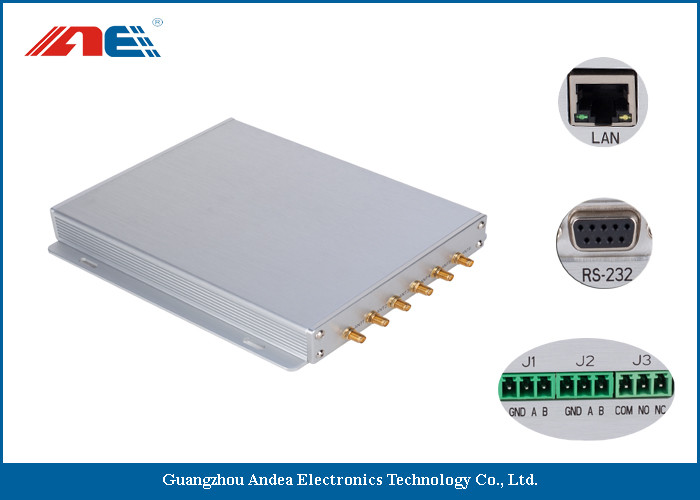

ISO18000-3M1 Long Range RFID Reader RF Power 1 - 8W With Six Channels
Andea Electronics HF long range RFID reader RD5106 is designed upon fully self-intellectual property which owns high sensitivity and fast anti-collision algorithm. For its perfect anti-collision algorithm, there is no problem for it to read a large quantity of tags in on time. There are 6 SMA interface of this reader that can connect with six Pieces antenna together. The default power is 4W and it is already suitable many positions, but for some special application, the character of its reading power from 1W to 8W will be helpful, the higher power will be much more helpful to read the tags quickly and exactly.
The operating frequency is 13.56MHz in accordance with ISO15693 and ISO18000-3M1 protocols
RF Power is configurable from 1W to 8W
There are four antenna interface linked with antenna impedance at 50Ω
There are many different communication interface for choice: RS232 / RS485 and Ethernet
Due to its anti-collision algorithm, its reading speed is up to 50pcs per second, more than 300pcs tags can be read on
Effective reading distance is up to 90cm when using standard antenna and tag
There is one I/O: 1 Relay /1 MOS for this reader
It supports both host and scan mode through software setting
EMI Detection is the featured function to find out if there is interference surrounding
ISO 15693 and ISO 18000-3M1
RS232 / RS485 and Ethernet
Max Power Consumption
1 Relay / 1 MOS
HF long range RFID reader series can be widely applied in many RFID application systems such as logistics, personnel identification, conference attendance, access control, anti-counterfeit, jewelry management, self-service of laundry and industrial process control.
