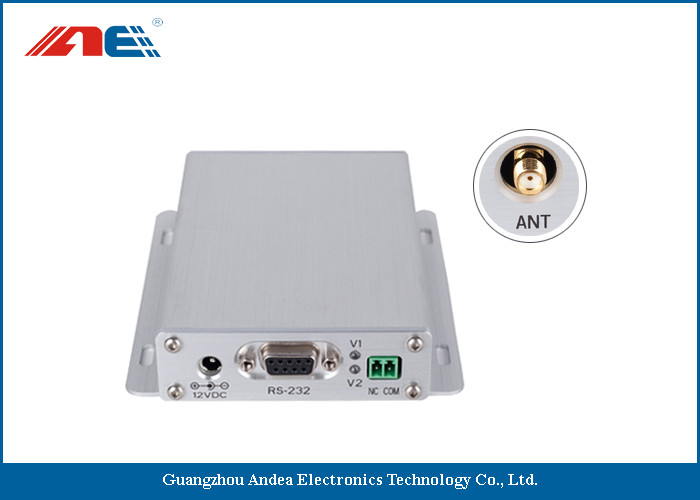

ISO15693 Mid Range RFID Reader For RFID Chip Tracking System 270g

ISO15693 Mid Range RFID Reader For RFID Chip Tracking System 270g
ISO15693 Mid Range RFID Reader For RFID Chip Tracking System 270g

Large Image :  ISO15693 Mid Range RFID Reader For RFID Chip Tracking System 270g

Product Details:
Place of Origin: CHINA
Brand Name: Andea Electronics
Model Number: RD201
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Packaging Details: Standard Export Carton, Foam and Protective Film
Delivery Time: 3~5 work days
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 500~1000 Sets Per Month
Detailed Product Description
Antenna Interface: SMA Communication Interface: RS232 / RS485
Working Voltage: DC 12V Max Power Consumption: 2.8W
GPIO: 1 Relay EMI Detection: Support
High Light:

medium range rfid reader

,

square rfid reader

ISO15693 Medium Power RFID Reader Reading Range 65CM With Single Channel


Product Introduction:



RD201 HF medium power RFID reader has high sensitivity and fast anti-collision algorithm, which operates at a frequency of 13.56 MHz and are designed to suit any business application and has wide choices depending upon the user’s specification and needs. Anti-collision algorithm allows fast processing, reading speed is up to 50 Pieces per second.



Product Features:



  • Operating Frequency: 13.56 MHz
  • Compatible Protocols: ISO15693 and ISO18000-3
  • RF Power: 1.5W
  • Antenna Interface: SMA
  • Communication Interface: RS232 / RS485
  • Anti-collision Algorithm: Support
  • Reading Speed: Up to 50pcs per second
  • Reading Range: 65cm (Related with the antenna and tag)
  • Working Voltage: DC12V, ≤300mA
  • Max Power Consumption: 2.8W
  • Be integrated with 1 relay output
  • Host and Scan Mode: Support (set through software)
  • Support EMI detection to check surrounding interference
  • Support to turn off radio frequency automatically when at task idle



Technical Specification
Model RD201
Operating Frequency 13.56 MHz
Compatible Protocols ISO 15693 and ISO 18000-3
RF Power 1.5W
Antenna Interface SMA
Communication Interface RS232 / RS485
Working Voltage DC 12V
Max Power Consumption 2.8W
GPIO 1 Relay
EMI Detection Support
Housing Material Aluminum Alloy
Dimension 136*105*25mm
Weight 270g



ISO15693 Mid Range RFID Reader For RFID Chip Tracking System 270g 0


Product Application:



It can be widely applied in many RFID application systems such as logistics, personnel identification, conference attendance system, access control, anti-counterfeit and industrial production process control system.
