Devote to RFID Technology Research & Development Since 2007
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Andea Electronics |
| Model Number: | LSG405 |
| Minimum Order Quantity: | 1 Piece |
| Packaging Details: | Standard Export Carton, Foam and Protective Film |
| Delivery Time: | 3~5 work days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 500~1000 Sets Per Month |
| Operating Frequency: | 13.56 MHz | Compatible Protocols: | ISO 15693 And ISO 18000-3M1 |
|---|---|---|---|
| Aisle Width: | 90cm | RF Power: | 1-8W |
| Alarm Mode: | EAS, AFI And EAS+AFI | Infrared Function: | Support |
| Highlight: | rfid portal reader,rfid gate antenna |
||
Product Introduction:

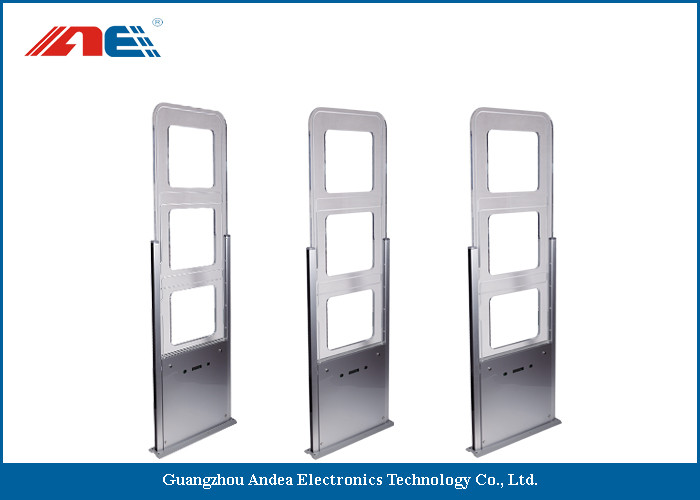

The Andea Electronics RFID Gates are the anti-theft part of the Library RFID Management System using the same RFID tags embedded in the library items. Each lane is able to track items of about 90cm and would trigger the alarm system when an un-borrowed item passed through them. The alarm will sound and lights on the gate will flash as patron passes through with the un-borrowed library material.
Theft detection is an integral feature of the chip within the tag. It is a stand-alone technology, which operates independently of the library database.
Featured Function:
| Technical Specification | |
| Model | LSG405 |
| Compatible Protocols | ISO15693 |
| Alarm Mode | EAS, AFI and EAS+AFI |
| Passive Alarm | Support |
| EMI Detection | Support |
| Aisle Width | 90cm |
| Power Supply | AC 100-240V 50-60Hz |
| Max Power Consumption | 30W (Rated Power 20W) |
| Housing Material | Acrylic and Metal Plate |
|
Dimension (L*W*H) |
Whole: 1664*636*118mm Antenna: 1645*600*44mm Base: 636*118mm |
| Weight | 23 kg/pc |
| Working Temperature | -20℃~60℃ |
| Storage Temperature | -45℃~85℃ |
| Relative Humidity | 5%~80% |
Product Application:
RFID library management, RFID archive management, etc.
