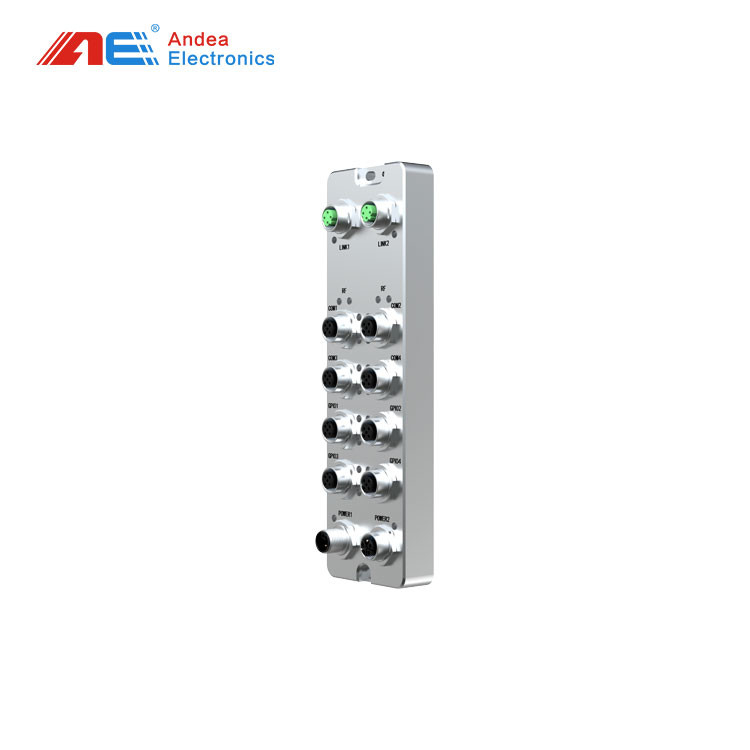

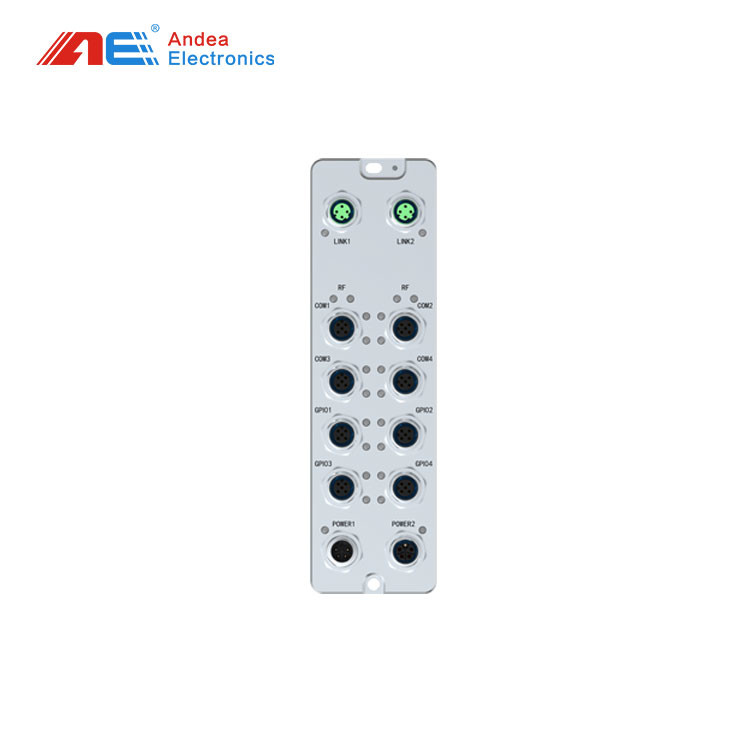

Industrial RFID Hub Iot Gateway Modbus RTU To Modbus TCP

Industrial RFID Hub Iot Gateway Modbus RTU To Modbus TCP



Industrial Protocol Converter Gateway



1 . Descriptions:



An Industrial RFID Hub IoT Gateway is a device that acts as a bridge between an industrial RFID system and an IoT network. It allows for the integration of RFID data with other IoT devices and platforms.

Modbus RTU is a serial communication protocol commonly used in industrial automation systems. It is typically used for communication between programmable logic controllers (PLCs) and other devices such as sensors and actuators.

Modbus TCP, on the other hand, is a variant of the Modbus protocol that uses Ethernet as the communication medium. It allows for communication between devices over a TCP/IP network, such as a local area network (LAN) or the internet.

The Modbus RTU to Modbus TCP functionality in an Industrial RFID Hub IoT Gateway enables the conversion of Modbus RTU data from RFID readers into Modbus TCP data that can be transmitted over an Ethernet network. This allows for the seamless integration of RFID data with other devices and systems that support Modbus TCP communication.



2.Feature:



1.Support MODBUS TCP bus device
2.Integrated Ethernet switch functionality
3.Support 10Mbps/100Mbps
4.HF and UHF readers can be controlled using the same module
5.Integrated 4-way RS485-MODBUS RTU ports, each port can cascade multiple reader and writer devices
6.Efficient data collection capabilities can effectively improve the accuracy of MES system data collection
7.Built-in filtering and isolation module, with strong anti-interference ability against EMC
8.IP rating: IP67, suitable for various harsh environments in the industrial field



3 . Specifications:



Physical Parameter	Dimensions	205*60*35.4mm
	Material	Aluminum alloy
Power Supply	Voltage	24VDC
	Current	8A
	Interface	5 Pin M12 (1 A and 1 D) L
	Power Interface Description	2 Power Interfaces (V1:for RFID  V2:for Sensors, Actuators)
	LED	2 power indicator lights, 2 bus communication indicator lights, 4 card reading status indicator lights, 4 RS485-MODBUS RTU running indicator lights, 4 RS485-MODBUS RTU fault indicator lights, 8 GPIO status indicator lights
Communication	Protocol	Modbus TCP
	Communication Rate	10Mbps/100Mbps
	Connector	4 Pin M12 *2
	DI/DO Points	8 Channels
	DI/DO Interface	5 Pin M12 A
RFID	RFID Quantity	4 Independent Channels (Each Channel can connect with more than 32 readers)
	RFID Interface	5 Pin M12 A
Environment Adaptability	Working Temperature	-40℃~+85°C
	Storage Temperature	-40℃~+85 °C
	Protection Level	IP67



4 .Quality Control:



As a professional and practised manufacturing company, we have buit up a series of workable and effective quality control system. Below are two major quality control inspection:



Incoming Quality Control Inspection



1. Purpose:

Checking all incoming material including sub-contractor provide products to ensure the quality meet requirement and nonconformity is found in time so as to prevent released nonconforming incoming material.



2. Scope:

Incoming materials (Expect some material for mold making and ship-to-stock material), including customer-

supplied material and sub-contactor supplied products



3. Definition: N/A

3.1 RMT: RMT is the short form of Reiving Move Ticket.

3.2 MRB: MRB Store means the rejected area assigned by store.



4. Responsibility:

4.1 IQC is responsible for the inspection and test of all in-coming material and parts.

4.2 Purchasing is responsible for informing non-conforming material to vendors / sub-contractors.



5. IQC Flow Chart

Finished Products Inspection:



5 . Applications:



This product is mainly used in automation equipment, machine tools, production lines and other fields. It is especially suitable for the collection and control of industrial control field data in complex electromagnetic environments.
