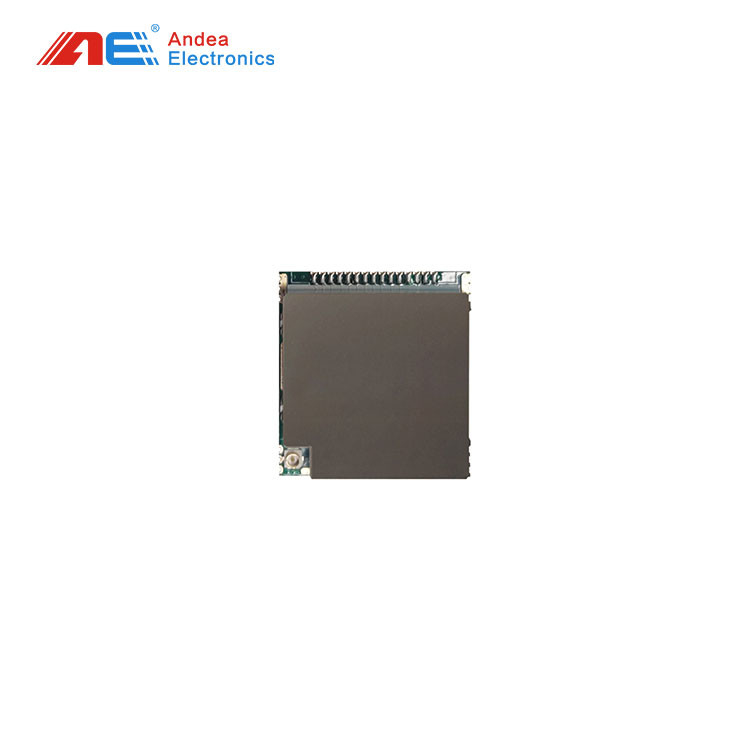

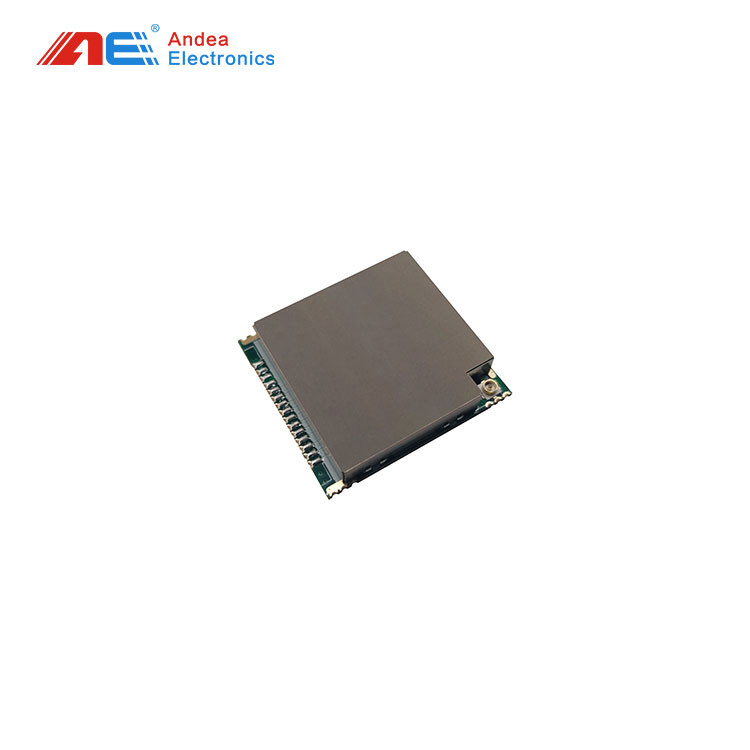

860-960mhz UHF RFID Reader Writer Module Support ISO18000 6C EPC GEN2 Protocol Provide SDK

860-960mhz UHF RFID Reader Writer Module Support ISO18000 6C EPC GEN2 Protocol Provide SDK



1 . Descriptions:



The UHF RFID reader-writer module supports the ISO18000-6C and EPC Gen2 protocols. This means it is compatible with RFID tags that comply with these standards. It operates within the frequency range of 860-960MHz, allowing for long-range reading and writing capabilities.

In terms of software development, the module comes with a Software Development Kit (SDK) that you can use to integrate the module into your own applications. The SDK typically includes documentation, sample code, and libraries that make it easier for you to communicate with the module and perform various operations such as reading and writing RFID tags.



2 . Specifications:



Name	860-960mhz UHF RFID Reader Writer Module
Material	PCBA and Aluminum Alloy
Feature	1.It has fast anti-collision processing algorithm, high label recognition sensitivity and stable performance 2.Equipped with 7 configurable GPIOs 3.Supports two working modes, host control mode and active scanning mode 4.Inventory supports buffering mode, which can buffer up to 20 EPCs 5.Can read a large number of tags at one time, with a reading speed of up to 50tag/s
Weight	5g
Dimensions	30*28*5.2mm
Standard	ISO18000-6C/EPCglobal Gen2
MOQ	1 Piece
Packaging	According to your requirements,polybags,vacuum packing
Payment term	T/T, Western Union, Paypal



3 .Quality Control:



As a professional and practised manufacturing company, we have buit up a series of workable and effective quality control system. Below are two major quality control inspection:



Incoming Quality Control Inspection



1. Purpose:

Checking all incoming material including sub-contractor provide products to ensure the quality meet requirement and nonconformity is found in time so as to prevent released nonconforming incoming material.



2. Scope:

Incoming materials (Expect some material for mold making and ship-to-stock material), including customer-

supplied material and sub-contactor supplied products



3. Definition: N/A

3.1 RMT: RMT is the short form of Reiving Move Ticket.

3.2 MRB: MRB Store means the rejected area assigned by store.



4. Responsibility:

4.1 IQC is responsible for the inspection and test of all in-coming material and parts.

4.2 Purchasing is responsible for informing non-conforming material to vendors / sub-contractors.



5. IQC Flow Chart

Finished Products Inspection:



4 . Applications:



Widely used in self-service book equipment: such as self-service book borrowing and returning machines, book sorting machines, librarian workstations and other fields.

5 . More pictures:





Support and Services:

Technical Support:

1. Free SDK, communicaiton protocols and R-Tool (testing & configuration software) provided.

2. Professional hardware and software engineers to give online or offline support.

Pre-sales Service:

As we have rich experien of many RFID projects after ten years development , especially in RFID library management, RFID personnel management (time and attendan management), RFID jewelry management, RFID management, RFID fast food shop management, production line automation, etc., we are able to give recommendation of the most suitable hardware solution in professional advis.

After-sales Service:

As the industry leader in the China RFID industry, we have to prove that we are committed to the confiden of our products. Free warranty is three year for all of our RFID reader and antenna excluding human factor damage.
