Devote to RFID Technology Research & Development Since 2007
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Andea Electronics |
| Model Number: | AR2301T/M/R |
| Minimum Order Quantity: | 1 Piece |
| Delivery Time: | 3~5 work days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 500~1000 Sets Per Month |
| Antenna: | Built-in | Communication Protocol: | Modbus TCP/RS485/RS232 |
|---|---|---|---|
| Frequency: | 13.56MHz | Support Standard: | ISO15693 |
| Indicator: | LED | Material: | ABS + Metal Base Plate |
| Operating Humidity: | 5%～95%RH | Operating Temperature: | -40℃～+85℃ |
| Power Supply: | 48V POE(46-54V), 24V DC(9~30V) | Reading Distance: | Reading Distance |
| Size: | 100*100*35mm | Weight: | 160g |
| High Light: | Automobile RFID Wall Mounted Reader,Mixed Flow RFID Wall Mounted Reader |
||

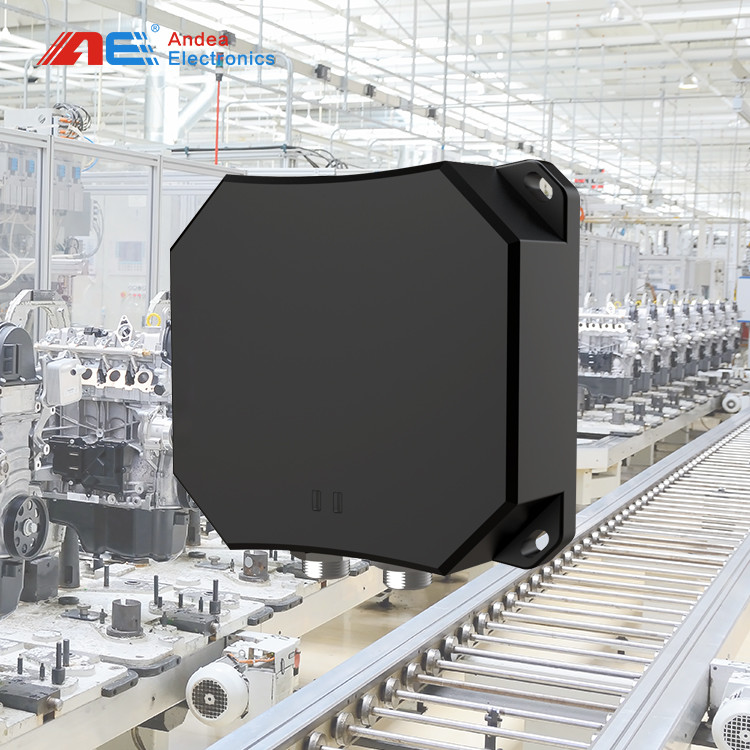

Automobile Mixed Flow Production Line Process Optimization RFID Wall Mounted Reader For Part Identification
An RFID wall-mounted reader can be used in an automobile mixed flow production line to optimize the process of part identification. This reader can be installed at various points along the production line, allowing for real-time tracking of the parts as they move from one station to the next. Each part would be affixed with an RFID tag that contains information about the part, such as its name, manufacturing location, and current position in the production line.
As each part passes by the RFID reader, the reader would automatically detect and read the tag, capturing this information and transmitting it to a centralized database. This database can then be used to monitor the progress of each part through the production line, to ensure that each part is properly assembled and tested before being moved to the next station. This can help to reduce errors, improve efficiency, and increase productivity in the production line. Additionally, the data collected by the RFID reader can be used to analyze the production process, identify areas for improvement, and streamline the overall production flow.
| Specification | |
| Support Standard | ISO 15693 |
| Operating Frequency | 13.56MHz |
| Reading Range |
AR2301T:0-140mm AR2301M/R:0-180mm |
| Communication mode |
AR2301T:Modbus TCP AR2301M/R:RS485/RS232(Modbus RTU) |
| Communication rate |
AR2301T:10/100M bps AR2301M/R:9600~115200 bit/s |
| Power Supply | 48V POE(46-54V), 24V DC(9~30V) |
| Current | <0.30A@24V DC |
| Physical parameters | |
| Dimension | 100*100*35mm |
| Weight | 160g |
| Fixed type | 4*M4 screw |
| Housing Material | ABS and Metal plate |
| Color | Black |
| Indicator light | LED*2 |

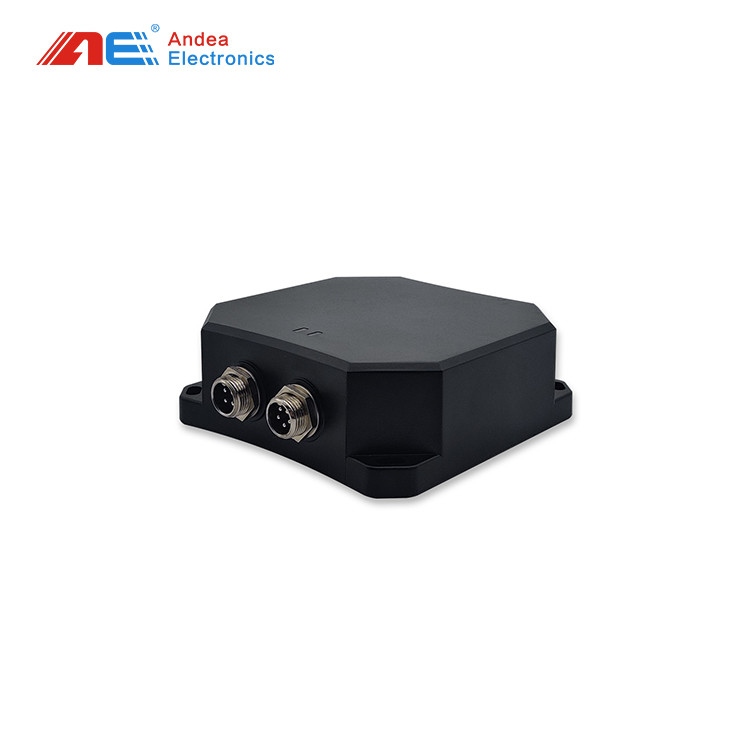

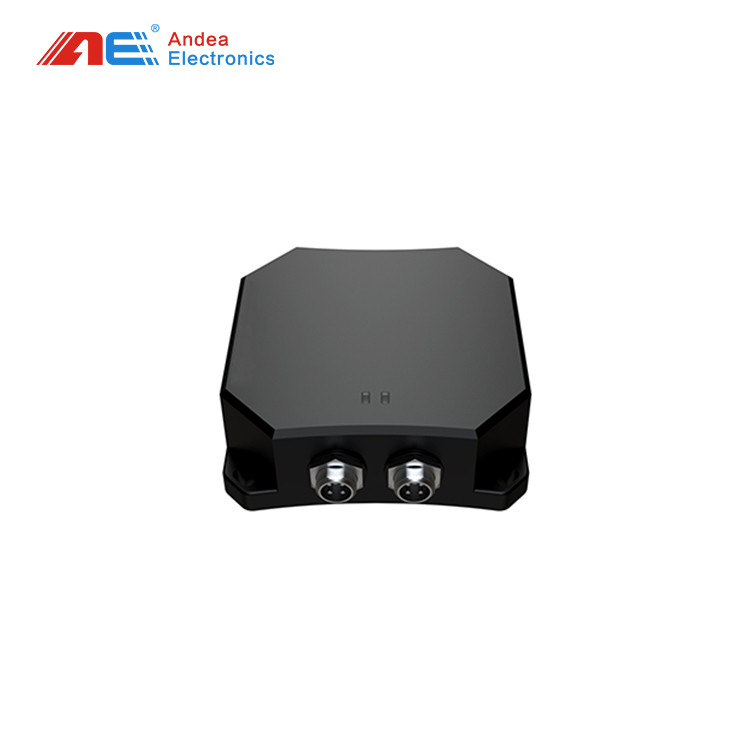

| Interface | M12A(4pin M) + M12D(4pin M) / M12A(4pin M) + M12A(5pin M) |
| Application environment | |
| Working Temperature | -40℃～+85℃ |
| Humidity | 5%～95%RH |
| Waterproof/dustproof | IP67 |
Process optimization in an automobile mixed flow production line is crucial for ensuring efficiency and reducing costs. One way to achieve this is to implement RFID technology with wall-mounted readers to identify parts.
The process can be optimized by following these steps:
1.Identify each part with an RFID tag: Each part that enters the production line should be assigned with a unique RFID tag. The tag should contain all the necessary information about the part, including its name, code, manufacturer details, and any other relevant data.
2.Install wall-mounted RFID readers: The next step is to install RFID readers at various points in the production line, including the assembly station, testing station, and packaging station. The readers should be wall-mounted to avoid any damage and provide a clear reading range.
3.Configure the RFID readers: The wall-mounted RFID readers should be configured to read the RFID tags of the parts that pass through their range. The configuration should include the necessary software and hardware settings to ensure that the readers can effectively identify the tags.
Integrate the RFID data with the production line system: Once the RFID readers are set up, the next step is to integrate the RFID data with the production line system. This will allow for real-time monitoring of the parts as they move through the production line.
4.Analyze the data and optimize the process: With real-time data available through the RFID system, manufacturers can analyze the data to identify any bottlenecks or inefficiencies in the production line. This information can then be used to optimize the process and make improvements to increase efficiency and reduce costs.
Overall, implementing RFID wall-mounted readers for part identification can significantly improve the efficiency of an automobile mixed flow production line. By providing real-time data and allowing for process optimization, manufacturers can reduce costs and more effectively manage their production lines.
Dimension Drawing(mm):
Installation Instruction:
This reader use four M4 screws to fixing. According to the installation environment of the site,we can support bracket to install.If there has Metal plate beside the product,please make sure that the distance between reader and Metal plate has more than 15mm,or it will influence the performance of reading and writing.
When there are more than two readers to be installed, the distance between the readers needs to be greater than 850mm.
FAQ
1.How we can trust you?
We are Alibaba Trade Assurance Supplier and 2 years Ali Gold Supplier
We focus on HF RIFD equipment for 10 years.
Our products have 17patens and copyrights certificates.
Our company has approved ISO9001-2008 quality management system certificate.
Our company is awarded High and New Technology Enterprise and Science and Technology Innovation Small Giant Enterprise by Chinese government.
2. What's your MOQ?
Big Order or Sample Order is accepted by our company.
We understanding new customers may take sample testing to know our quality and service.
3. What’s your delivery time?
Around 2~10 working days according to exact order quantity and stock situation.
4. Whether your products could be customized?
Yes,for sure. Please talk to sales about exact requirements.
Andea offer the OEM or ODM service.
