| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Andea Electronics |
| Model Number: | AR1431M/R |
| Minimum Order Quantity: | 1 Piece |
| Delivery Time: | 3~5 work days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 500~1000 Sets Per Month |
| Operating Frequency: | 13.56MHz | Interface: | M12A(4pin M) |
|---|---|---|---|
| Support Standard: | ISO 15693、ISO 14443 TypeA/B | Power Supply: | 24V DC（9-30V） |
| Communication Mode: | M:Modbus RTU485 R:Modbus RS232 | Current: | <0.07A@24V DC |
| Reading Range: | 0~55mm | Dimension: | φ30mm*87.5mm |
| Working Temperature: | -40℃～+85℃ | Waterproof/Dustproof: | IP67 |
| Highlight: | IP67 Industrial RFID Reader,Rotatably Embedded Industrial RFID Reader |
||

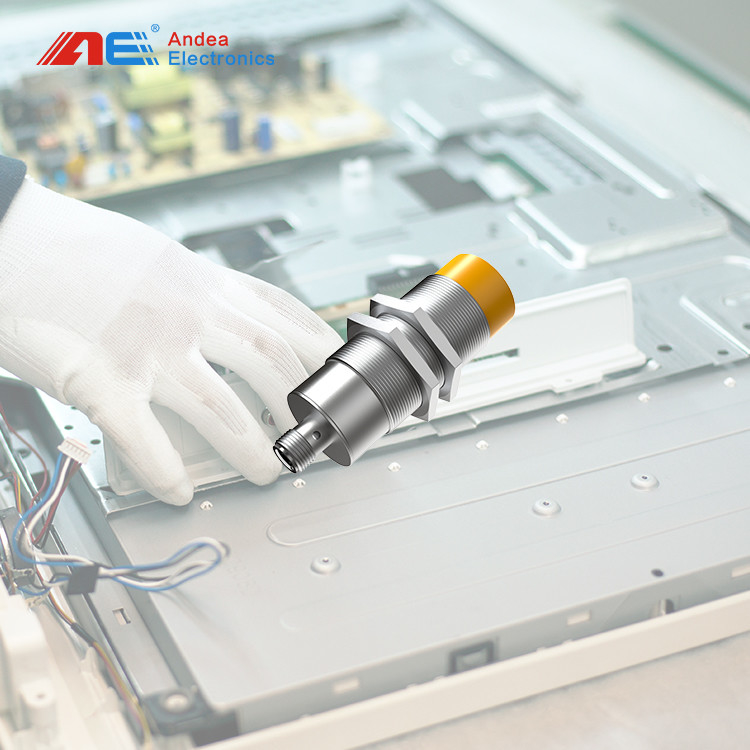

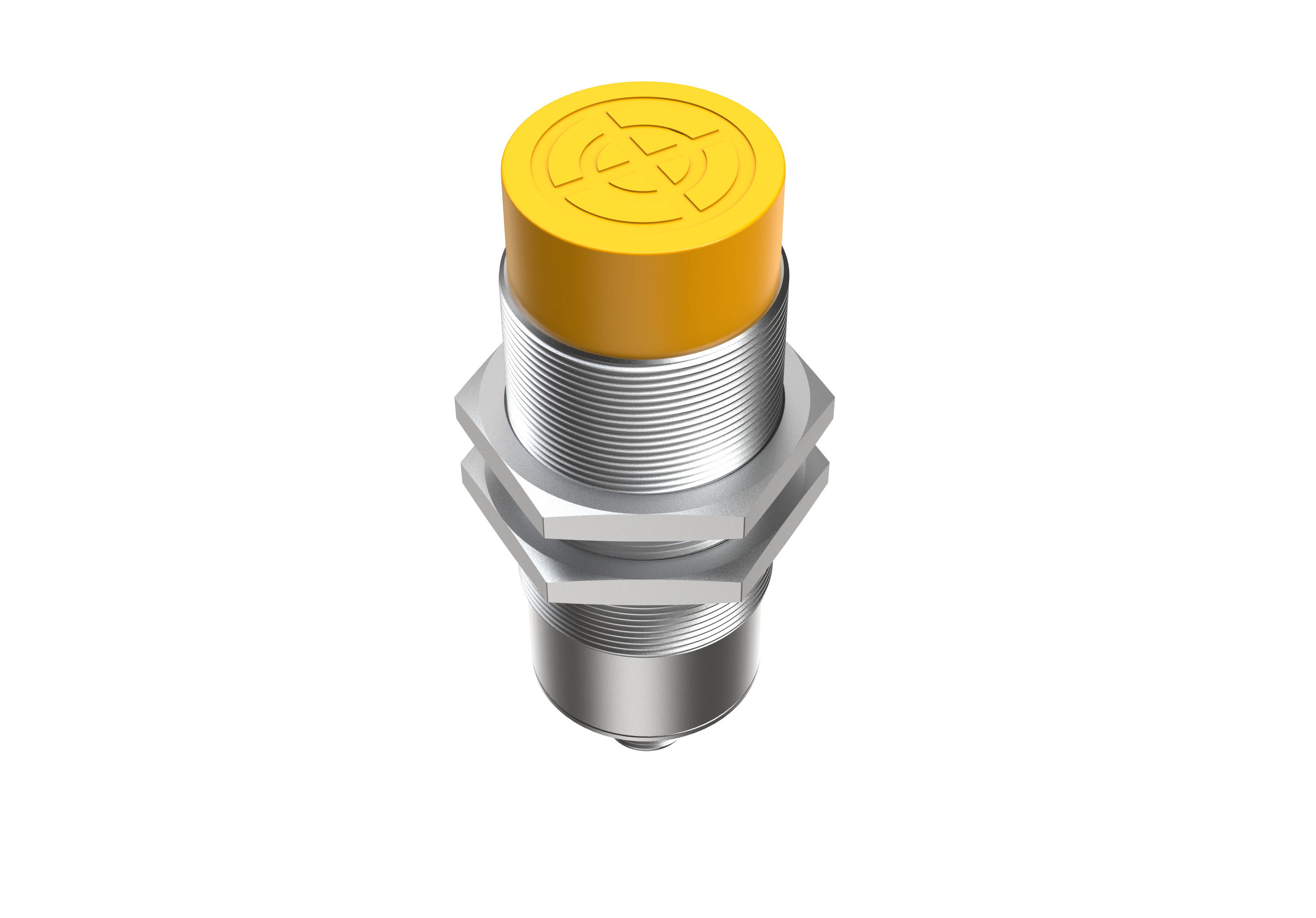

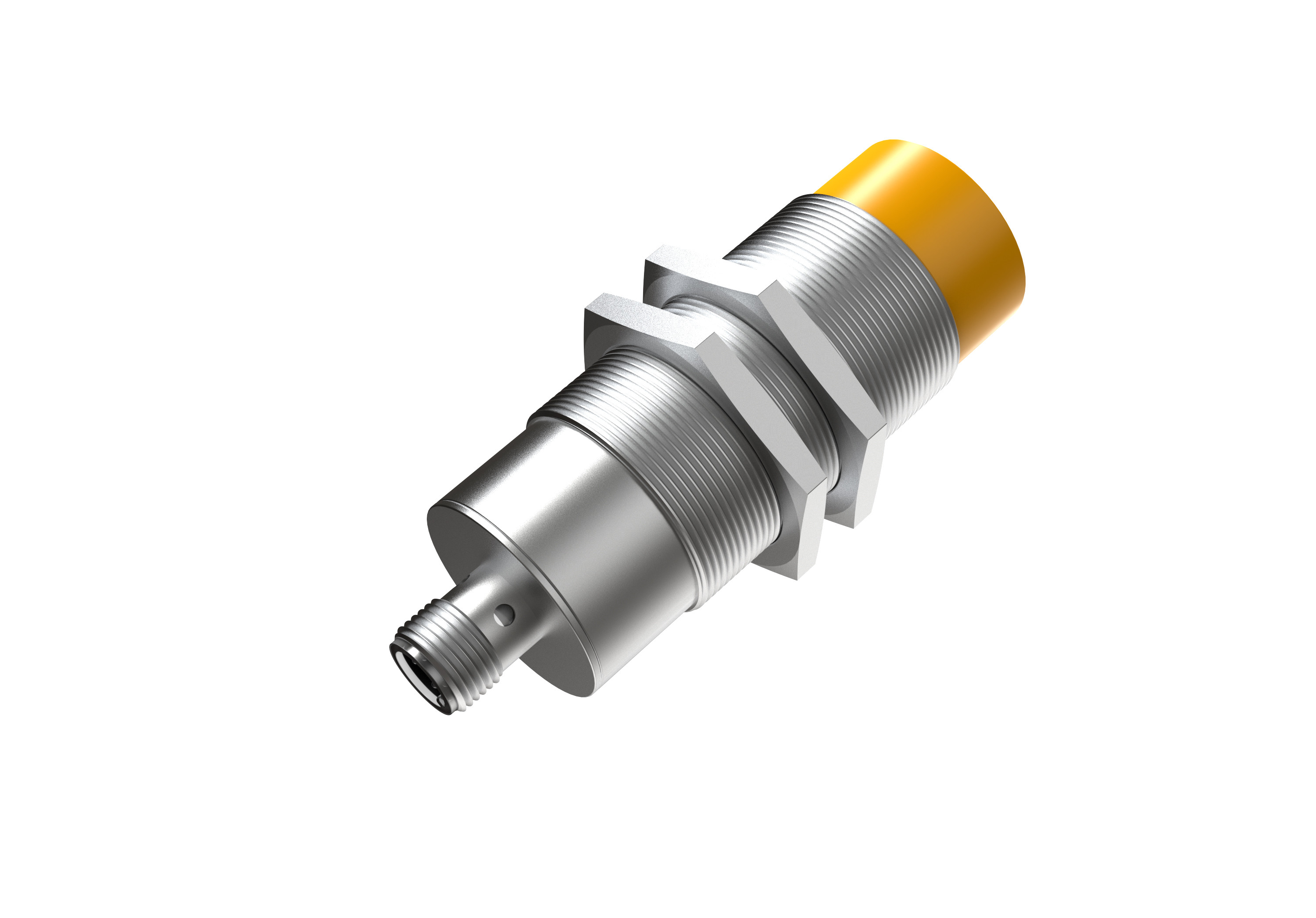

Top-Protruding industrial RFID Rotatably Embedded Or Installed On The Bracket Industrial Reader For Assembly Line
An industrial RFID reader with a top-protruding design is ideal for use in an assembly line environment. This design ensures that the reader can be easily accessed and read by the robotic arm or human operator picking up materials from a conveyor belt. Installing the RFID reader on a bracket that can be rotated and adjusted further enhances its accessibility.
The bracket design must be able to withstand the vibrations and movement of the assembly line. Industrial RFID readers with a ruggedized construction are better equipped to handle the harsh conditions of an assembly line. The reader must also have a high read rate, ensuring that it can read the tags quickly and accurately as the materials move down the conveyor belt.
Furthermore, the RFID reader must be able to communicate seamlessly with the assembly line control system. This includes providing real-time data to the system regarding the material being picked up, its location, and the actions being performed on it. This allows for a more streamlined and efficient assembly line process, reducing errors and improving productivity.
Overall, an industrial RFID reader with a top-protruding design and rotatable bracket is an ideal solution for assembly line environments. Its ruggedized construction and high read rate, combined with seamless communication with the assembly line control system, make it an efficient and reliable tool for identifying materials and enhancing the overall manufacturing process.
Installation Instruction:
The product comes with M30*45mm thread. When fixing, use two nuts to clamp on the site,or fixed in place by twisting. If the application environment is not allow, we can support bracket to install.
When there are more than two readers to be installed, the distance between the readers needs to be greater than 850mm.
| Specification | |
| Support Standard | ISO 15693,ISO 14443 TypeA/B |
| Operating Frequency | 13.56MHz |
| Reading Range | 0-55mm |
| Communication mode | M:Modbus RTU485 R:Modbus RS232 |
| Communication rate | 10/100M bps |
| Power Supply | 24V DC(9-30V) |
| Current | <0.07A@24V DC |
| Physical parameters | |
| Dimension | φ30mm*87.5mm |
| Weight | 100g |
| Fixed type | use two nuts to clamp on the site,or fixed in place by twisting |
| Housing Material | Brass nickel plating |
| Color | Sliver |
| Indicator light | LED*2 |
| Interface | M12A(4pin M) |
| Application environment | |
| Working Temperature | -40℃～+85℃ |
| Humidity | 5%～95%RH |
| Waterproof/dustproof | IP67 |
Application:
Intelligent Application of Home Appliance Manufacturing Process
Through RFID data acquisition technology (By adding RFID tags on the product/tooling board and deploying RFID readers on the workstation),the unmanned,automatic and real-time identification of single-item products on the production line is realized.
Using real-time collected product information,complete error prevention of mixed flow production materials,real-time push of process guidance,automatic diversion of defective products,automatic generation of quality reports,product traceability management,mixed flow line alarms,and equipment automation docking.
Engine Assembly Line
The reader can interface with various PLCs such as Siemens,Schneider and Mitsubishi through the industrial bus controller. By reading the RFID tag mounted on the tray,passing the information to the PLC, Through the information of installation to guide the assembly robot or the assembler to auto select the appropriate part,the engine assembly efficiency can be greatly improved.
Factory Automation
This product has always been a key player in the field of discrete manufacturing with its strong portfolio comprising sensors, connection and fieldbus technologies, RFID and control solutions. Our comprehensive solutions help our customers to improve efficiency, increase availability and minimize errors.
Dimension Drawing(mm):
