Devote to RFID Technology Research & Development Since 2007
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Andea Electronics |
| Model Number: | AR1411M/R |
| Minimum Order Quantity: | 1 Piece |
| Delivery Time: | 3~5 work days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 500~1000 Sets Per Month |
| Operating Frequency: | 13.56MHz | Power Supply: | 24V DC(9-30V) |
|---|---|---|---|
| Support Standard: | ISO 15693,ISO 14443 TypeA/B | Current: | <0.07A@24V DC |
| Communication Mode: | M:Modbus RTU485 R:Modbus RS232 | Interface: | M12A(4pin M) |
| Communication Rate: | 10/100M Bps | Reading Range: | 0-35mm |
| Dimension: | φ18mm*82.5mm | Working Temperature: | -40℃～+85℃ |
| Highlight: | CNC Tool Identification RFID Reader,Short Range Identification RFID Reader |
||

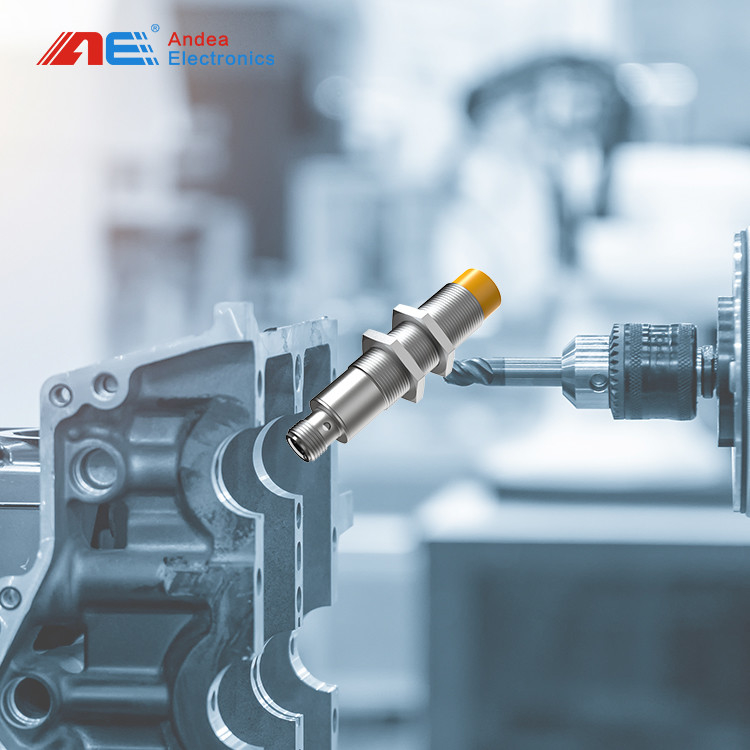

A CNC Tool Identification RFID Reader is a device used to read Radio Frequency Identification (RFID) tags attached to cutting tools used in Computer Numerical Control (CNC) machines. The purpose of the device is to quickly and accurately identify the tool that is being inserted into the machine, eliminating the need for manual tool identification.
The RFID reader works by sensing the electromagnetic waves emitted by the RFID tag when it is brought within its range. The reader then decodes the information stored within the RFID tag and instantly provides information about the tool, such as its type, dimensions, and wear status.
This technology improves the efficiency of CNC machining processes by reducing the time spent on manual tool identification and reducing the risk of human error. It also allows for better tool management and tracking, providing valuable data and insights that can be used to optimize tool life and performance.
| Specification | |
| Support Standard | ISO 15693,ISO 14443 TypeA/B |
| Operating Frequency | 13.56MHz |
| Reading Range | 0-35mm |
| Communication mode | M:Modbus RTU485 R:Modbus RS232 |
| Communication rate | 10/100M bps |
| Power Supply | 24V DC(9-30V) |
| Current | <0.07A@24V DC |
| Physical parameters | |
| Dimension | φ18mm*82.5mm |
| Weight | 60g |
| Fixed type | use two nuts to clamp on the site,or fixed in place by twisting |
| Housing Material | Brass nickel plating |
| Color | Sliver |
| Indicator light | LED*2 |
| Interface | M12A(4pin M) |
| Application environment | |
| Working Temperature | -40℃～+85℃ |
| Humidity | 5%～95%RH |
| Waterproof/dustproof | IP67 |
Application:
Factory Automation
This product has always been a key player in the field of discrete manufacturing with its strong portfolio comprising sensors, connection and fieldbus technologies, RFID and control solutions. Our comprehensive solutions help our customers to improve efficiency, increase availability and minimize errors.
Engine Assembly Line
The reader can interface with various PLCs such as Siemens,Schneider and Mitsubishi through the industrial bus controller. By reading the RFID tag mounted on the tray,passing the information to the PLC, Through the information of installation to guide the assembly robot or the assembler to auto select the appropriate part,the engine assembly efficiency can be greatly improved.
Efficient RFID identification solutions for process optimization, help improve tool recognition and complete traceability of production and logistics processes.
Dimension Drawing(mm):
Installation Instruction:
The product comes with M18*45mm thread. When fixing, use two nuts to clamp on the site,or fixed in place by twisting. If the application environment is not allow, we can support bracket to install.
When there are more than two readers to be installed, the distance between the readers needs to be greater than 850mm.
