Devote to RFID Technology Research & Development Since 2007
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Andea Electronics |
| Model Number: | DA2803-BL |
| Minimum Order Quantity: | 1 Piece |
| Packaging Details: | Standard Export Carton, Foam and Protective Film |
| Delivery Time: | 3~5 work days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 500~1000 Sets Per Month |
| Operating Frequency: | 13.56MHz | Frequency Interface: | SMA |
|---|---|---|---|
| Antenna Impedance: | 50Ω | Max Power Consumption: | 4W |
| Reading Range: | 30cm | Lenght Of Feeder: | 2.5m |
| Housing Material: | PCB,ABS And Aluminum | Dimension: | 445*365*17mm |
| High Light: | 13.56Mhz PAD Antenna,30cm PAD Antenna,RFID Card Reader Antenna |
||

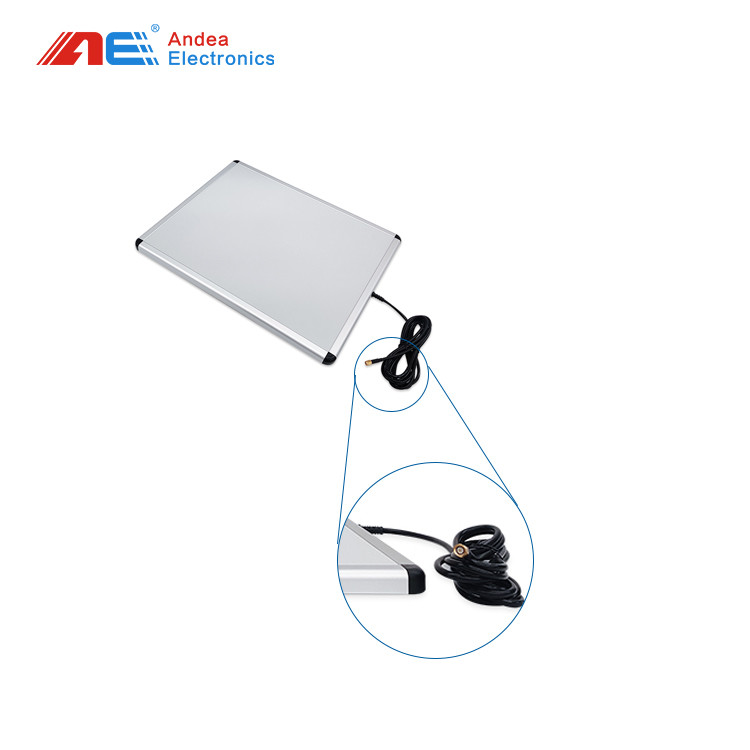

RFID 13.56Mhz PAD Antenna Reading 30cm Range Smart Card Reader Antenna For The Workstation Check In And Out
A smart card reader antenna is a component of a smart card reader that is used to communicate with the smart card. The antenna is typically embedded within the reader and it is where the electromagnetic field is generated. This field is used to power the integrated circuit on the smart card and to transmit data between the card and the reader. The antenna is a critical component of the reader and plays a key role in ensuring that data is transmitted accurately and securely between the card and the reader.
An RFID independent antenna is a separate antenna that is not integrated with an RFID reader. Instead, the antenna is connected to the reader via a cable, allowing for placement in different locations.The benefit of having an independent antenna is that it can be optimized for specific applications or environments, resulting in enhanced performance.Also,an RFID independent antenna provides more flexibility than an integrated antennaFor example, if an application involves tracking RFID tags in a metal environment, an independent antenna can be placed outside the metal environment to avoid interference.Independent antennas can also support a larger coverage area compared to integrated antennas. This can be useful in applications where large areas need to be covered, such as in a warehouse or a parking lot.
| Operating Frequency | 13.56MHz |
| Antenna Impedance | 50Ω |
| Recognition Distance | 30cm |
| Interface | SMA |
| Max Power Consumption | 4W |
| Supply Voltage | 5V USB |
| Housing Material | PCB,ABS and Aluminum |
| Dimensions | 445×365×17mm |
Product Application:
Book Management,Archive Management,Costume Chain Store Management
In summary, an RFID independent antenna provides more flexibility than an integrated antenna, as it can be placed in different locations and optimized for specific applications.
