| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Andea Electronics |
| Model Number: | M202 |
| Minimum Order Quantity: | 1 Piece |
| Packaging Details: | Standard Export Carton, Foam and Protective Film |
| Delivery Time: | 3~5 work days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 500~1000 Sets Per Month |
| Working Frequency: | 13.56MHz | RF Output Power: | 0.25-1.5W Adjustable |
|---|---|---|---|
| Working Protocol: | ISO15693 And ISO 18000-3M1 | Power Supply: | DC 9~12V |
| Reading Range: | 65cm | Fast Anti-collision Processing: | Support |
| Dimension: | 81*52*8mm | ||
| High Light: | Medium Power Middle Range Write Module,HF RFID Middle Range Write Module |
||

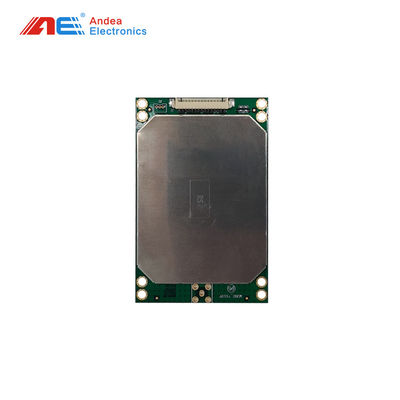

HF RFID Medium Power Middle Range Read/Write Module Compatible with the ISO15693 International Standard Protocol
HF RFID medium power middle range read/write module is a 13.56 MHz contactless reader module used to read or read/write data on smart cards.The module easy to use, low cost, suitable for equipment development, development of advanced applications such reader users, the need for RF card terminal design / production of the user. This module can be loaded directly into a variety of readers molds. Module uses voltage of 9-12V, can guarantee stable and reliable work, reader distance;
Product Features:
Metal shielding design to work normally at metal surrounding environment
Small size design for easy integration
Variety of communication interfaces
Fast anti-collision processing algorithm
Main Parameter:
| Operating Frequency | 13.56MHz |
| Support Standard | ISO15693 and ISO 18000-3M1 |
| Recognition Distance | 65cm |
| Supply Voltage | DC 9~12V |
| RF Power | 0.25-1.5W adjustable |
| Dimensions | 81*52*8mm |
Product Application:
This product is widely used in RFID book self-service devices, hand-held devices, desktop tablet integrated devices.
The RFID reader is a network-connected device that can be portable or permanently attached. It uses radio waves to transmit signals that activate the tag. Once activated, the tag sends a wave back to the antenna, where it is translated into data. The transponder is in the RFID tag itself.
