Devote to RFID Technology Research & Development Since 2007
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Andea Electronics |
| Model Number: | URD5118 |
| Minimum Order Quantity: | 1 Piece |
| Packaging Details: | Standard Export Carton, Foam and Protective Film |
| Delivery Time: | 3~5 work days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 500~1000 Sets Per Month |
| Operating Frequency: | 860-960MHz | Compatible Protocol: | ISO 18000-6C/ EPC Gen2 |
|---|---|---|---|
| RF Power: | 32dBm(adjustable) | Antenna Interface: | SMA(50Ω） |
| Supply Voltage: | 12V DC | Working Mode: | Host Mode |
| Shell Material: | Aluminum Alloy | Reading Range: | 10m |
| High Light: | UHF Long Range Fixed RFID Reader,18 Ports Fixed RFID Reader |
||

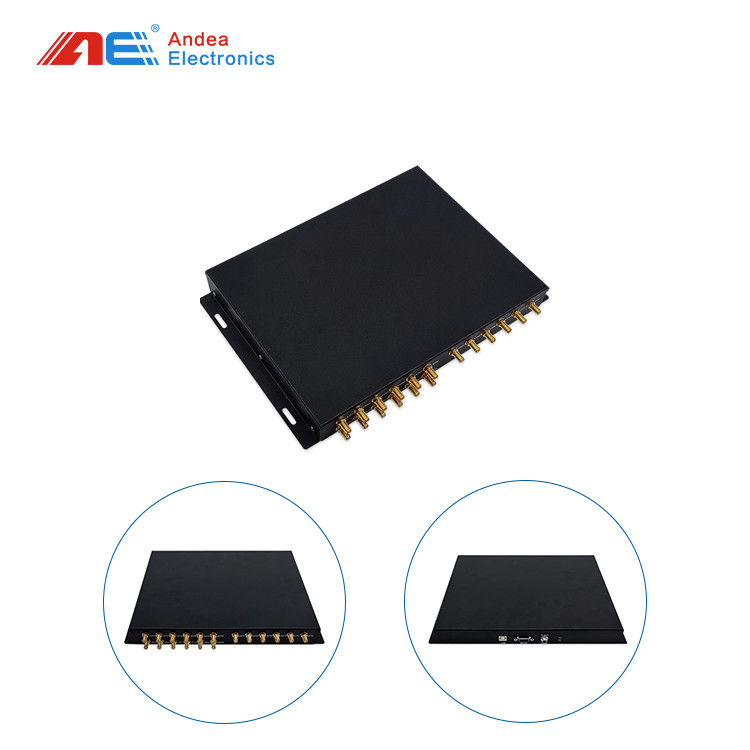

UHF Long Range Fixed RFID Reader With 18 Ports Long Range RFID Tag Reader For Diamond / Jewelry / Book Inventory
With fixed RFID readers, you can quickly and accurately move and track large volumes of RFID-tagged cases, pallets, and items. Fixed RFID Readers are designed to thrive in many types of environments. They are ideal for use in high-density tag environments, high throughput applications, and on RF-challenging materials.UHF Long Range Fixed RFID Reader has a highly sensitive read/write performance and a fast anti-collision processing algorithm. This product supports electronic labels from multiple manufacturers that meet the ISO 18000-6C/EPC Gen2 standard, and is widely used in libraries, archives management, production process automation, automatic management of laundry, drug tracking and other fields.
Product Features:
Support noise detection, be able to detect whether the environment has interference.
Fast anti-collision processing algorithm.
Reading and writing range: single antenna can reach 10m.
With short circuit protection and overheat protection function.
| Technical Specification | |
| Model | URD5118 |
| Operating Frequency | 860-960MHz |
| Compatible Protocols | ISO 18000-6C/ EPC Gen2 |
| Communication Interface | USB/RS232 |
| Reading Range | 10m |
| Dimension | 308×229.7×34.5mm |
Product Application:
It is widely used in libraries, archives management, production process automation, automatic management of laundry, drug tracking and other fields.
How do I increase my RFID range?
1.Antenna Gain:
If you need more read range, use higher gain antennas. If you need less read range, use lower gain antennas. If you need to read tags up close, use very low gain proximity antennas.
2.Antenna Polarization:
If tags are aligned with the antenna's polarization, linear polarized antennas will read farther than circular polarized antennas. If tags are not aligned with the antenna's polarization, then circular polarized antennas will read farther than linear polarized antennas.
3.As a general rule of thumb, small tags will have shorter read ranges, and large tags will have longer read ranges. In order to get the best range from any RFID tag, make sure that the tag is fully facing the antenna and pay particular attention to tag orientation when using linearly polarized antennas. Lastly, when tagging objects with high liquid or high metallic content, be sure to choose RFID tags designed for mounting on such objects.
4.Higher power settings will result in greater read range, while lower power settings will result in decreased read range. Also, in order to maximize read range, ensure that your reader is set to its highest receive sensitivity.
