| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Andea Electronics |
| Model Number: | DA2807-BL |
| Minimum Order Quantity: | 1 Piece |
| Packaging Details: | Standard Export Carton, Foam and Protective Film |
| Delivery Time: | 3~5 work days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 500~1000 Sets Per Month |
| Frequency: | 13.56Mhz | Maximum Power: | 2W |
|---|---|---|---|
| Impedance: | 50Ω | Operating Temperature: | -20℃~60℃ |
| Storage Temperature: | -25℃~70℃ | Feeder Lenght: | 2.5m |
| Interface: | SMA | Housing Material: | ABS Plastic, Aluminium |
| Dimension: | 360*275*20mm | ||
| High Light: | Desktop RFID Reader Antenna,Jewlery Management RFID Reader Antenna |
||

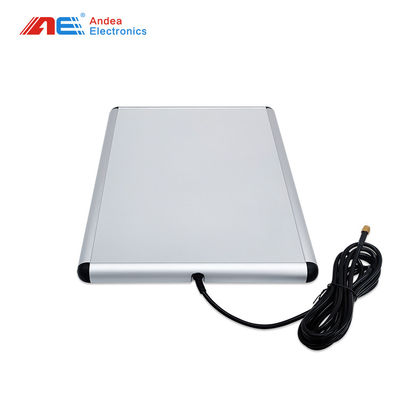

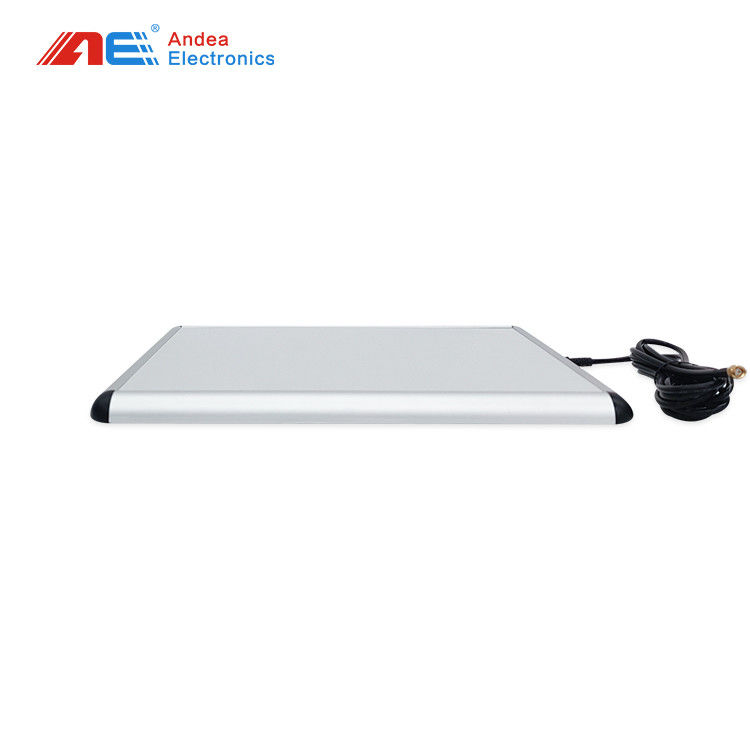

13.56mhz Desktop RFID Reader Antenna for Library Jewlery Management and Counter Check-out
Product Introduction:
It is a metal-resistant shielded antenna, used in libraries, archives and other fields.The product well limits the sensing area above the front of the antenna to prevent the misreading of electronic tags other than the antenna; the antenna can be used on a metal desktop, with performance unaffected, and can steadily read small size electronic tags.
Product Features:
Operating Frequency: 13.56MHZ
Interface: SMA
Antenna Impedance: 50Ω
Maximum Power: 2W
Maximum Reading Range (Max): 35cm
Dimension (L*W*H): 360*275*20mm
Operating Temperature: -20°C to 60°C
Storage Temperature: -25°C to 70°C
Housing Material: ABS + aluminium
Product Application:
Book Management
Archive Management
Costume Chain Store Management
