Devote to RFID Technology Research & Development Since 2007
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Andea Electronics |
| Model Number: | AR1301R（-T01） |
| Minimum Order Quantity: | 1 Piece |
| Delivery Time: | 7~15 work days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 500~1000 Sets Per Month |
| Operating Frequency: | 13.56MHz | Support Standard: | ISO15693、ISO14443 TypeA/B |
|---|---|---|---|
| Communication Rate: | 9600~115200 Bit/s | Current: | <0.04A@24V DC |
| Communication Mode: | Modbus RS232 | Power Supply: | 24V DC(9~30V) |
| Housing Material: | ABS And Metal Plate | Interface: | TNC(F) + M12A(5pin M) |
| Dimension: | 100*100*35mm | ||
| High Light: | IP67 Industrial RFID Reader,Data Logged Industrial RFID Reader |
||

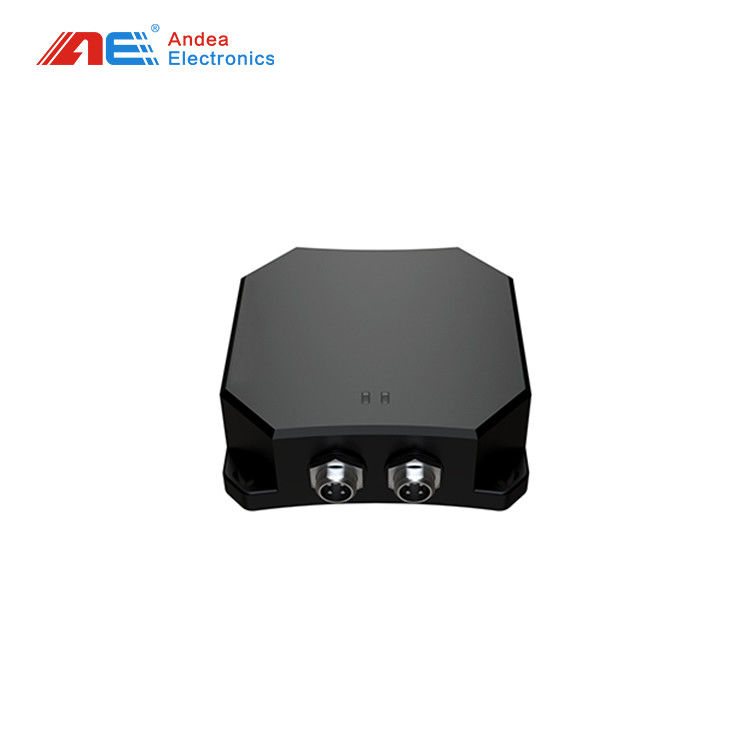

High Performance IP67 Industrial RFID Reader Writer Modbus Communication Use For Data Logged
Quick detail of RFID Reader Writer:
Operating Frequency13.56MHz
Support Standard:ISO15693,ISO14443 TypeA/B;
Communication Interface:TNC(F) + M12A(5pin M) ;
Dimension100*100*35mm;
Communication mode:Modbus RS232;
Waterproof/ dustproof:IP67;
Power Supply24V DC(9~30V);
Specification of RFID Reader Writer:
| Specification | |
| Support Standard | ISO15693,ISO14443 TypeA/B |
| Operating Frequency | 13.56MHz |
| Reading Range | 0-50mm |
| Communication mode | Modbus RS232 |
| Communication rate | 9600~115200 bit/s |
| Power Supply | 24V DC(9~30V) |
| Current | <0.04A@24V DC |
| Physical parameters | |
| Dimension | 100*100*35mm |
| Weight | 160g |
| Fixed type | 4*M4 screw |
| Housing Material | ABS and Metal plate |
| Color | Black |
| Indicator light | LED*2 |
| Interface | TNC(F) + M12A(5pin M) |
| Application environment | |
| Working Temperature | -40℃～+85℃ |
| Humidity | 5%～95%RH |
| Waterproof/dustproof | IP67 |
Advantages of RFID Reader Writer:
RFID enable you to find and track individual items, to ensure that all essential equipment is present and – since inspections and maintenance can all be recorded – that it is safe and ready to use.
From a production line to a crafts workshop or construction site, RFID systems are an ideal way to identify and track tools, enabling companies to reduce costs, save time and improve safety.
RFID Reader Writer Application:
Data gives managers deeper insights to improve efficiency
RFID gives much more detailed management information including data on asset usage and production efficiency, which was previously unavailable. It also reduces resin wastage and damage to moulds and gives the information required for improved production planning.
Tracking moulds and reducing waste in a shower tray plant
RFID would automatically recognise and track each tray mould as it progressed through the production process. Each mould has its own RFID tag, identified by fixed-point readers installed at two critical points on the manufacturing line – where resin is added and when the filled moulds approach the curing ovens.
As the moulds reach the first point – where they are about to be filled – the RFID reader identifies the type of mould from its tag. The system then links with the industrial weighing terminal to specify the exact quantity of resin required, avoiding wastage.
At the second reading point, where moulds are approaching the curing oven, the fixed-point reader again reads the tag and alerts the operator so that the correct shell can be combined with the tray prior to curing.
Dimension Drawing(mm):
Installation Instruction:
This reader use four M4 screws to fixing. According to the installation environment of the site,we can support bracket to install.If there has Metal plate beside the product,please make sure that the distance between reader and Metal plate has more than 15mm,or it will influence the performance of reading and writing.
When there are more than two readers to be installed, the distance between the readers needs to be greater than 850mm.
