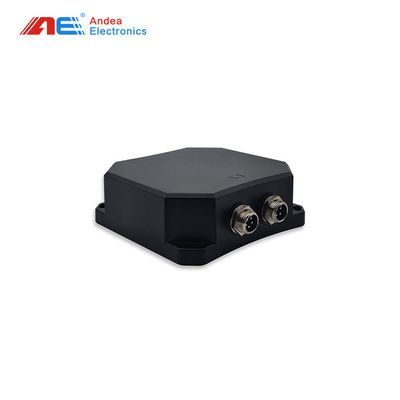

High Performance Small Size With Modbus Interface Industrial UHF RFID Reader

High Performance Small Size With Modbus Interface Industrial UHF RFID Reader

Quick detail of UHF RFID Reader:

Support Standard:ISO18000-6C,EPC C1G2;

Communication mode:Modbus TCP;

Fixed type:4*M4 screw;

Waterproof/ dustproof:IP67;

Communication Interface:M12A(4pin M) + M12D(4pin M);

Specification of UHF RFID Reader:

Feature of UHF RFID Reader:

Real-time data: real-time acquisition of data generated in each production process, statistical analysis of production capacity and efficiency;

Flow control management: Real-time flow control management at the production site, to keep abreast of the production status, real-time order tracking management, to establish complete product production information, and to facilitate the traceability of quality problems;

Process management: quickly and accurately transfer the production process to each production line, support customized production, and improve production efficiency;

Data digging: Big data analysis in the production process, continuous guidance to improve production management.

UHF RFID Reader Application:

RFID Warehouse Management

The RFID tags are bonded to the pallets, shelf and location information, the RFID reader is installed on forklift with PLC to read pallet tag and location tag, display on forklift can give current operation instructions. Meanwhile RFID readers and antennas are installed at different gate direction to judge pallet tags in and out, by using the wireless network in the warehouse, system can realize data transmission.

Warehouse RFID Forklift System

The carrier of forklift transportation of goods is mainly based on pallets. The forklift management system using RFID technology consists of an RFID reading system by installing UHF RFID readers, UHF RFID antennas and industrial control computers on the forklift. By using RFID tags on finished pallets, when forklifts equipped with RFID reading systems pick up pallets, they can obtain RFID tag data to confirm cargo information and complete the uninterrupted tracking of finished product information. The precise management of goods in and out of warehouses, goods transfers, and cargo locations provides basic information protection.

Distributed Production Line of Automotive Seats

Installed RF tags on the bottom of seat pallets. As each seat progresses down the assembly line, the pallet passes over an antenna at each workstation. Operators reference a touchscreen PLC that indicates seat type as well as needed alterations.

If a seat requires work, the operating system won't let the seat continue down the line until the operator has made and verified all necessary adjustments. The antenna then writes to the tag, updating it with whatever modifications have been made to the seat.

The process continues until the seat reaches the final workstation where its build instructions are verified with the actual assembly record. If they match up, the seats are transferred to the shipping area and are sequenced for delivery to the automaker's assembly line.

RFID system allows operators to assemble many different types of seats on the same production line.

Dimension Drawing(mm):

Installation Instruction:

This reader use four M4 screws to fixing. According to the installation environment of the site,we can support bracket to install.If there has Metal plate beside the product,please make sure that the distance between reader and Metal plate has more than 15mm,or it will influence the performance of reading and writing.

When there are more than two readers to be installed, the distance between the readers needs to be greater than 10m.
