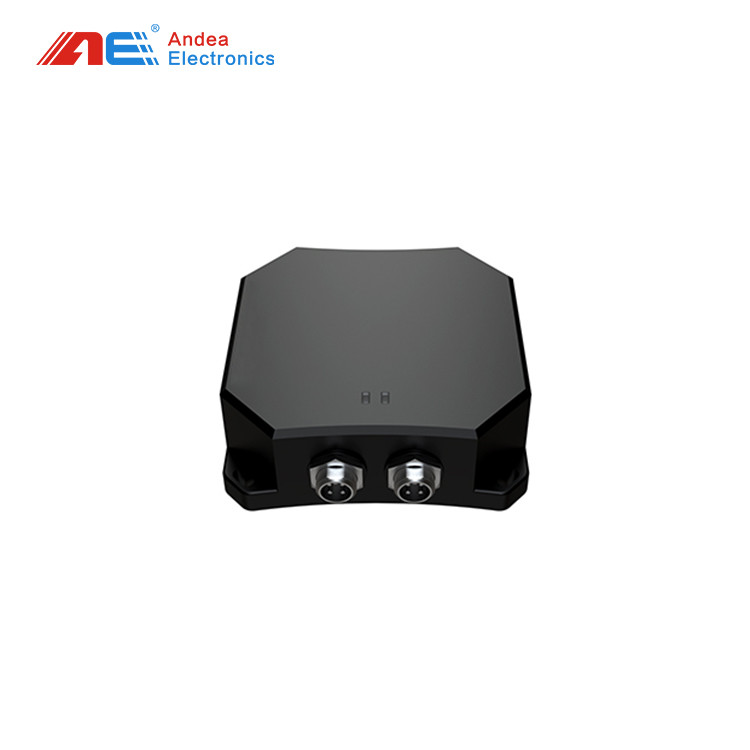

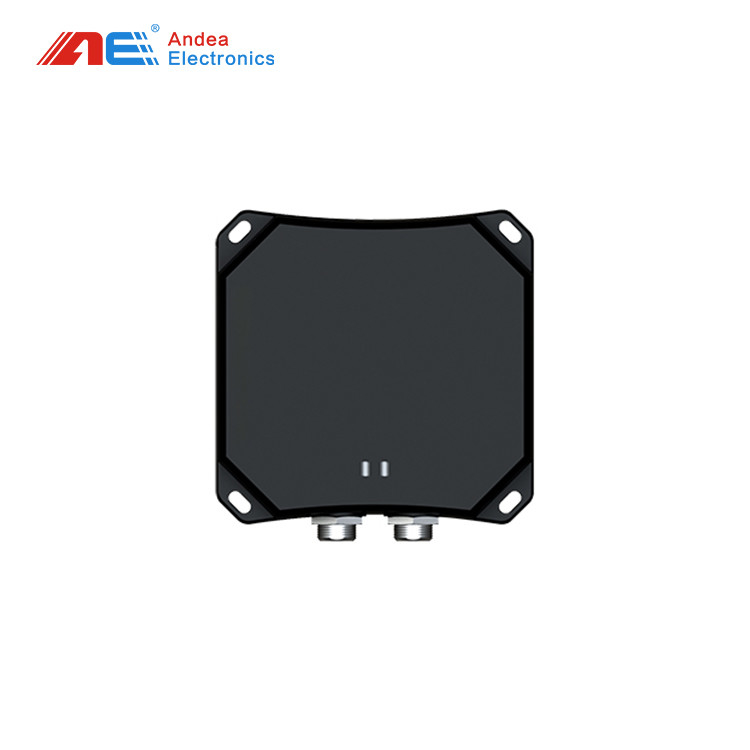

RFID Reader UHF ISO18000-6C Protocol Modbus RS485 Communication For Decentralized Identification Of Products And Goods

Quick detail of RFID Reader UHF​:

Take advantage of Andea Electronics RFID readers to increase production efficiency, shorten delivery times, reduce production costs and the number of errors!

• Support Standard:ISO18000-6C,EPC C1G2；
• Communication mode:Modbus RS485；
• Fixed type:4*M4 screw；
• Waterproof/ dustproof:IP67；
• Communication Interface:M12A(4pin M) + M12A(5pin M)；

  Specification of Desktop RFID Reader:


Feature of RFID Reader UHF:

RFID readers allow you to optimally manage machines, tools and materials, reduce production costs, shorten delivery times, reduce the number of errors and increase production efficiency. You can achieve up-to-date data, available wherever and whenever we need it, is the basis for effective decisions.

Industrial RFID readers collect data automatically , allowing you to track material flows,monitor the efficiency of machinery and equipment,monitor the condition of fixed assets.

Built-in-one design,have strong anti-interference ability to EMC.

With high sensitive read-write performance.

Support Modbus communication mode,Convenience to interface with various PLCs.

Integrated design,easy to installation and deployment.

With IP67 protection grade can adapt to harsh environments.

RFID Reader UHF Application:

Optimize processes in Production and Logistics

Industrial RFID readers are especially common in the field of intralogistics and so-called “gate applications”. The HF technology is an important driver of digital production processes and the HF RFID readers have been used successfully in production processes for many years. Andea Electronics has UHF and HF frequencies industrial RFID readers available for you.

Among other things, you can also use the read/write heads for fast and reliable tracking of material in intralogistics, tracking of individual products, tracking of transport carriers through the production process.

Our RFID readers extend from high frequency (HF) to ultra high frequency (UHF). The read range from few centimeter to more than few meters. This ensures that the best RFID hardware fit to solve your specific need can be offered. It also means you have choices to meet your current budget and flexibility to meet future requirements. For each of the frequencies, there are also more options.

All RFID readers capabilities delivers enterprise-class RFID performance and dependability when reading and writing RFID tags,they ensure high read rates and reliable data capture with dense reader mode and noise-cancellation features proven in retail deployments worldwide.

Dimension Drawing(mm):


Installation Instruction:

This reader use four M4 screws to fixing. According to the installation environment of the site,we can support bracket to install.If there has Metal plate beside the product,please make sure that the distance between reader and Metal plate has more than 15mm,or it will influence the performance of reading and writing.

When there are more than two readers to be installed, the distance between the readers needs to be greater than 850mm.
