| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Andea Electronics |
| Model Number: | AR1421R |
| Minimum Order Quantity: | 1 Piece |
| Delivery Time: | 7~15 work days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 500~1000 Sets Per Month |
| Communication Mode: | Modbus RTU232 | Communication Rate: | 10/100M Bps |
|---|---|---|---|
| Interface: | M12A(4pin M) | Reading Range: | 0-40mm |
| Operating Frequency: | 13.56MHz | Support Standard: | ISO 15693,ISO 14443 TypeA/B |
| Power Supply: | 24V DC(9-30V) | Current: | <0.07A@24V DC |
| Working Temperature: | -40℃～+85℃ | Humidity: | 5%～95%RH |
| Waterproof/dustproof: | IP67 | ||
| Highlight: | RTU232 Communication Industrial RFID Reader,Type A Industrial RFID Reader,HF Micro Power Industrial RFID Reader |
||

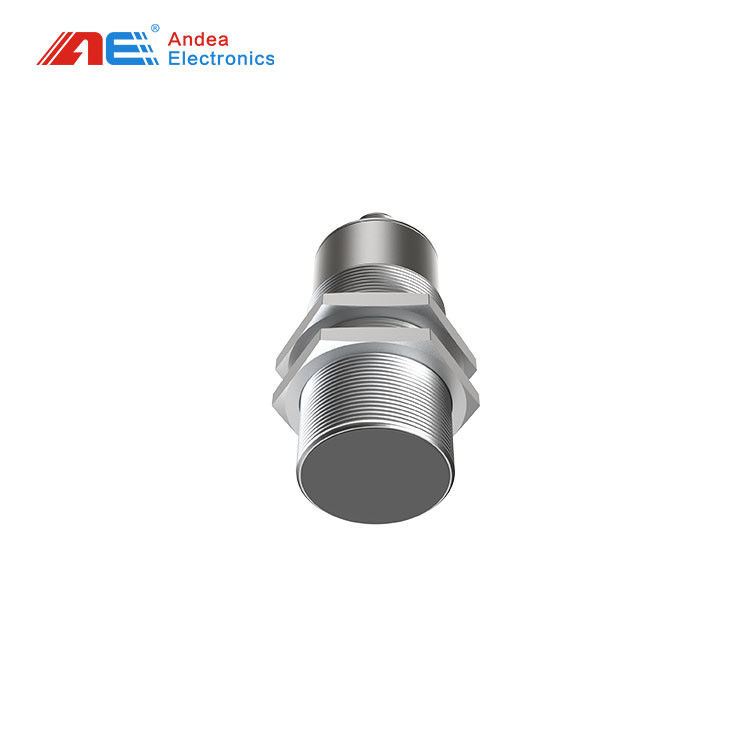

HF Micro-power Modbus RTU232 Communication Industrial RFID Reader Support ISO 15693 and ISO 14443 TypeA/B Standard
Quick detail of HF Micro-power Modbus RTU232 Communication Industrial RFID Reader:
Waterproof/ dustproof:IP67;
Support Standard:ISO 15693,ISO 14443 TypeA/B;
Fixed type:use two nuts to clamp on the site,or fixed in place by twisting;
Communication Interface:M12A(4pin M);
Communication mode:Modbus RTU232;
Specification of HF Micro-power Modbus RTU232 Communication Industrial RFID Reader:
| Specification | |
| Support Standard | ISO 15693,ISO 14443 TypeA/B |
| Operating Frequency | 13.56MHz |
| Reading Range | 0-40mm |
| Communication mode | Modbus RTU232 |
| Communication rate | 10/100M bps |
| Power Supply | 24V DC(9-30V) |
| Current | <0.07A@24V DC |
| Physical parameters | |
| Dimension | φ30mm*76.5mm |
| Weight | 85g |
| Fixed type | use two nuts to clamp on the site,or fixed in place by twisting |
| Housing Material | Brass nickel plating |
| Color | Sliver |
| Indicator light | LED*2 |
| Interface | M12A(4pin M) |
| Application environment | |
| Working Temperature | -40℃～+85℃ |
| Humidity | 5%～95%RH |
| Waterproof/dustproof | IP67 |
Feature of HF Micro-power Modbus RTU232 Communication Industrial RFID Reader:
Support Modbus communication mode,Convenience to interface with various PLCs.
Built-in-one design,have strong anti-interference ability to EMC.
With high sensitive read-write performance.
Integrated design,easy to installation and deployment.
With IP67 protection grade can adapt to harsh environments.
Advantages of HF Micro-power Modbus RTU232 Communication Industrial RFID Reader:
Small size
Non expensive
Fast data transfer
Easy to use
HF Micro-power Modbus RTU232 Communication Industrial RFID Reader Application:
Engine Assembly Line
The reader can interface with various PLCs such as Siemens,Schneider and Mitsubishi through the industrial bus controller. By reading the RFID tag mounted on the tray,passing the information to the PLC, Through the information of installation to guide the assembly robot or the assembler to auto select the appropriate part,the engine assembly efficiency can be greatly improved.
Intelligent Application of Home Appliance Manufacturing Process
Through RFID data acquisition technology (By adding RFID tags on the product/tooling board and deploying RFID readers on the workstation),the unmanned,automatic and real-time identification of single-item products on the production line is realized.
Using real-time collected product information,complete error prevention of mixed flow production materials,real-time push of process guidance,automatic diversion of defective products,automatic generation of quality reports,product traceability management,mixed flow line alarms,and equipment automation docking.
Power Battery Assembly
Install the reader at the RFID collection point, and the on-line station collection point reads the RFID tag in the material box to obtain the information of slots in the material box (each slot is equipped with a cell with different voltage), The voltage value/grade of the test cell is written into the material box RFID tag at the test station of the voltage cell. When the cell is classified, read the RFID tag information of the material box and connect the robot in real time to automaticaly put the cell into the corresponding cell transport track. After the robot takes down the cell with different gear from the transport track and puts them into the same material box it will write the cell gear information into the RFID tag of the material box. Through the operation of each station on the RFID tag, a series of processes such as cell division, transportation, encapsulation, and assembly are completed in the process of cell assembly.
Dimension Drawing(mm):
Installation Instruction:
The product comes with M30*45mm thread. When fixing, use two nuts to clamp on the site,or fixed in place by twisting. If the application environment is not allow, we can support bracket to install.
When there are more than two readers to be installed, the distance between the readers needs to be greater than 850mm.
