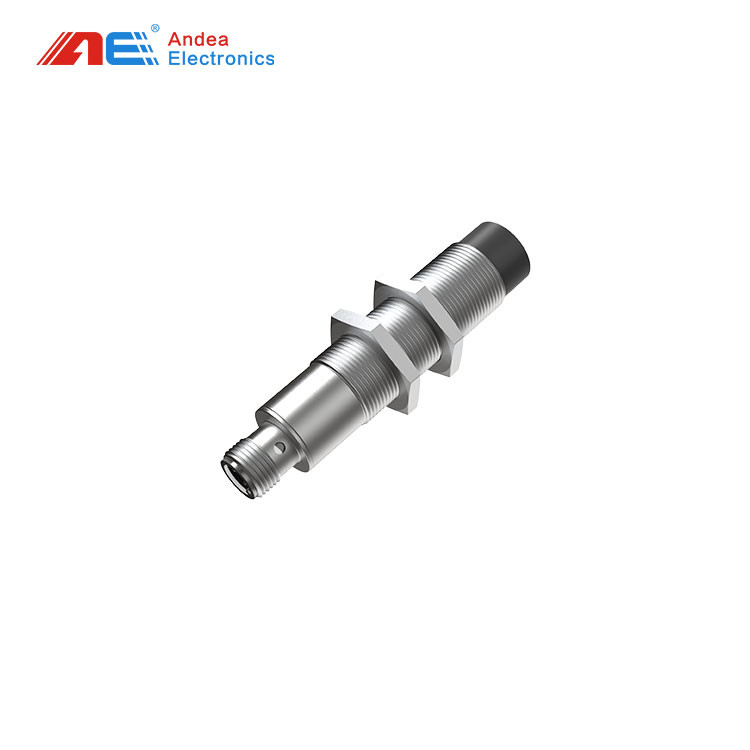

HF Micro-power Modbus RTU232 Communication Industrial RFID Reader/writer for warehouse management
Quick detail of HF Micro-power Modbus RTU232 Communication Industrial RFID Reader/writer:
Support Standard:ISO 15693,ISO 14443 TypeA/B;
Communication mode:Modbus RTU232;
Communication Interface:M12A(4pin M);
Fixed type:use two nuts to clamp on the site,or fixed in place by twisting;
Waterproof/Dtproof:IP67;
Specification of HF Micro-power Modbus RTU232 Communication Industrial RFID Reader/writer:
| Specification | |
| Support Standard | ISO 15693,ISO 14443 TypeA/B |
| Operating Frequency | 13.56MHz |
| Reading Range | 0-35mm |
| Communication mode | Modbus RTU232 |
| Communication rate | 10/100M bps |
| Power Supply | 24V DC(9-30V) |
| Current | <0.07A@24V DC |
| Physical parameters | |
| Dimension | φ18mm*82.5mm |
| Weight | 60g |
| Fixed type | use two nuts to clamp on the site,or fixed in place by twisting |
| Housing Material | Brass nickel plating |
| Color | Sliver |
| Indicator light | LED*2 |
| Interface | M12A(4pin M) |
| Application environment | |
| Working Temperature | -40℃～+85℃ |
| Humidity | 5%～95%RH |
| Waterproof/dustproof | IP67 |
Feature of HF Micro-power Modbus RTU232 Communication Industrial RFID Reader/writer:
Built-in-one design,have strong anti-interference ability to EMC.
Support Modbus communication mode,Convenience to interface with various PLCs.
Integrated design,easy to installation and deployment.
With high sensitive read-write performance.
With IP67 protection grade can adapt to harsh environments.
Advantages of HF Micro-power Modbus RTU232 Communication Industrial RFID Reader/writer:
Non expensive
Small size
Easy to use
Fast data transfer
HF Micro-power Modbus RTU232 Communication Industrial RFID Reader/writer Application:
Factory Automation
This product has always been a key player in the field of discrete manufacturing with its strong portfolio comprising sensors, connection and fieldbus technologies, RFID and control solutions. Our comprehensive solutions help our customers to improve efficiency, increase availability and minimize errors.
Engine Assembly Line
The reader can interface with various PLCs such as Siemens,Schneider and Mitsubishi through the industrial bus controller. By reading the RFID tag mounted on the tray,passing the information to the PLC, Through the information of installation to guide the assembly robot or the assembler to auto select the appropriate part,the engine assembly efficiency can be greatly improved.
Efficient RFID identification solutions for process optimization, help improve tool recognition and complete traceability of production and logistics processes.
Dimension Drawing(mm):
Installation Instruction:
The product comes with M18*45mm thread. When fixing, use two nuts to clamp on the site,or fixed in place by twisting. If the application environment is not allow, we can support bracket to install.
When there are more than two readers to be installed, the distance between the readers needs to be greater than 850mm.
