Devote to RFID Technology Research & Development Since 2007
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Andea Electronics |
| Model Number: | AR2201R |
| Minimum Order Quantity: | 1 Piece |
| Delivery Time: | 7~15 work days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 500~1000 Sets Per Month |
| Communication Mode: | Modbus RTU232 | Communication Rate: | 9600~115200 Bit/s |
|---|---|---|---|
| Interface: | M12A(4pin M) + M12A(5pin M) | Support Standard: | ISO 15693 |
| Operating Frequency: | 13.56MHz | Dimension: | 360*83*28mm |
| Weight: | 580g | Housing Material: | ABS And Metal Plate |
| Color: | Black | Working Temperature: | -40℃～+85℃ |
| Humidity: | 5%～95%RH | Waterproof/dustproof: | IP67 |
| Highlight: | ISO 15693 Industrial RFID Reader,Waterproof Industrial RFID Reader,Modbus RTU232 Communication Industrial RFID Reader |
||

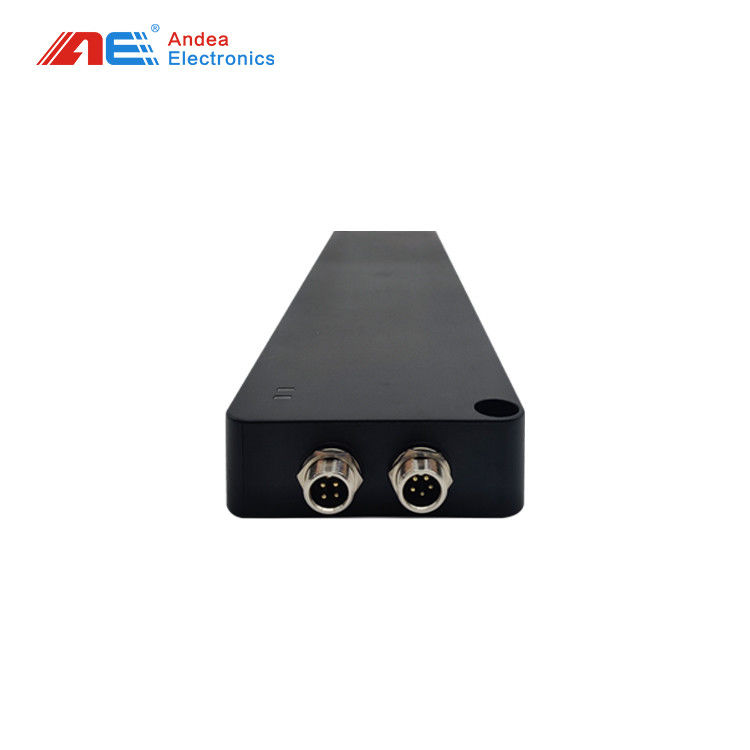

HF Medium Power Modbus RTU232 Communication Industrial RFID Reader Support ISO 15693 Standard
Quick detail of HF Medium Power Modbus RTU232 Communication Industrial RFID Reader:
Communication mode:Modbus RTU232;
Communication Interface:M12A(4pin M) + M12A(5pin M);
Support Standard:ISO 15693;
Waterproof/ dustproof:IP67;
Fixed type:2*M5 screw;
Specification of HF Medium Power Modbus RTU232 Communication Industrial RFID Reader:
| Specification | |
| Support Standard | ISO 15693 |
| Operating Frequency | 13.56MHz |
| Reading Range | 0-140mm |
| Communication mode | Modbus RTU232 |
| Communication rate | 9600~115200 bit/ |
| Power Supply | 24V DC(9-30V) |
| Current | <0.30A@24V DC |
| Physical parameters | |
| Dimension | 360*83*28mm |
| Weight | 580g |
| Fixed type | 2*M5 screw |
| Housing Material | ABS and Metal plate |
| Color | Black |
| Indicator light | LED*2 |
| Interface | M12A(4pin M) + M12A(5pin M |
| Application environment | |
| Working Temperature | -40℃～+85℃ |
| Humidity | 5%～95%RH |
| Waterproof/dustproof | IP67 |
Feature of HF Medium Power Modbus RTU232 Communication Industrial RFID Reader:
Built-in-one design,have strong anti-interference ability to EMC.
Support Modbus communication mode,Convenience to interface with various PLCs.
With high sensitive read-write performance.
Integrated design,easy to installation and deployment.
With IP67 protection grade can adapt to harsh environments.
Advantages of HF Medium Power Modbus RTU232 Communication Industrial RFID Reader:
Small size
Fast data transfer
Non expensive
Easy to use
HF Medium Power Modbus RTU232 Communication Industrial RFID Reader Application:
Engine Assembly Line
The reader can interface with various PLCs such as Siemens,Schneider and Mitsubishi through the industrial bus controller. By reading the RFID tag mounted on the tray,passing the information to the PLC, Through the information of installation to guide the assembly robot or the assembler to auto select the appropriate part,the engine assembly efficiency can be greatly improved.
Factory Automation
This product has always been a key player in the field of discrete manufacturing with its strong portfolio comprising sensors, connection and fieldbus technologies, RFID and control solutions. Our comprehensive solutions help our customers to improve efficiency, increase availability and minimize errors.
Power Battery Assembly
Install the reader at the RFID collection point, and the on-line station collection point reads the RFID tag in the material box to obtain the information of slots in the material box (each slot is equipped with a cell with different voltage), The voltage value/grade of the test cell is written into the material box RFID tag at the test station of the voltage cell. When the cell is classified, read the RFID tag information of the material box and connect the robot in real time to automaticaly put the cell into the corresponding cell transport track. After the robot takes down the cell with different gear from the transport track and puts them into the same material box it will write the cell gear information into the RFID tag of the material box. Through the operation of each station on the RFID tag, a series of processes such as cell division, transportation, encapsulation, and assembly are completed in the process of cell assembly.
Dimension Drawing(mm):
Installation Instruction:
This reader use two M5 screws to fixing. According to the installation environment of the site,we can support bracket to install.If there has Metal plate beside the product,please make sure that the distance between reader and Metal plate has more than 15mm,or it will influence the performance of reading and writing.
When there are more than two readers to be installed, the distance between the readers needs to be greater than 850mm.
FAQ
1.How we can trust you?
We are Alibaba Trade Assurance Supplier and 2 years Ali Gold Supplier
We focus on HF RIFD equipment for 10 years.
Our products have 17patens and copyrights certificates.
Our company has approved ISO9001-2008 quality management system certificate.
Our company is awarded High and New Technology Enterprise and Science and Technology Innovation Small Giant Enterprise by Chinese government.
2. What's your MOQ?
Big Order or Sample Order is accepted by our company.
We understanding new customers may take sample testing to know our quality and service.
3. Why choose us?
With us make Win-Win Business Situation!!!
24 *7 hours after sales service
We accept "PayPal", credit card to convenient customer make payment.
Quality Assurance Contract
Full refund in case of bad quality
Online supports if any technique issue.
Both Small Order and Big Order are accepted.
Accept OEM/ODM order.
4. What’s your delivery time?
Around 2~10 working days according to exact order quantity and stock situation.
5. What is the warranty?
3 years warranty for core device from the date of delivery,A lifetime technical support.
We will return full money to customer if we did not shipping right items as contract.
