Devote to RFID Technology Research & Development Since 2007
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Andea Electronics |
| Model Number: | AR2201T |
| Minimum Order Quantity: | 1 Piece |
| Delivery Time: | 7~15 work days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 500~1000 Sets Per Month |
| Operating Frequency: | 13.56 MHz | Support Standard: | ISO 15693 |
|---|---|---|---|
| Communication Mode: | Modbus TCP | Communication Rate: | 10/100M Bps |
| Power Supply: | 48V POE(46~54V)，24V DC(9~30V) | Dimension: | 360*83*28mm |
| Indicator Light: | LED*2 | Housing Material: | ABS And Metal Plate |
| Working Temperature: | -40℃～+85℃ | Waterproof/dustproof: | IP67 |
| Highlight: | Medium Power Industrial Rfid Reader,Modbus TCP Industrial Rfid Reader |
||

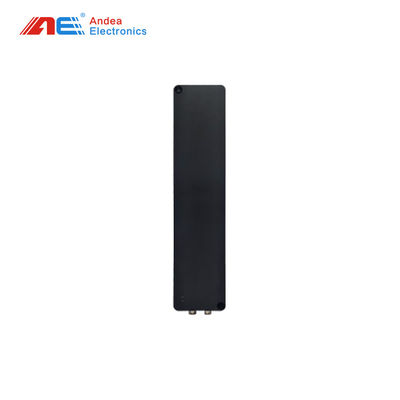

13.56MHz Medium Power Modbus TCP Communication Industrial rfid reader decentralized identification of products and goods
Quick detail of Modbus TCP Communication Industrial rfid reader:
Communication mode:Modbus TCP;
Communication Interface:M12A(4pin M) + M12D(4pin M);
Support Standard:ISO 15693;
Waterproof/ dustproof:IP67;
Fixed type:2*M5 screw;
Specification of Modbus TCP Communication Industrial rfid reader:
| Specification | |
| Support Standard | ISO 15693 |
| Operating Frequency | 13.56MHz |
| Reading Range | 0-150mm |
| Communication mode | Modbus TCP |
| Communication rate | 10/100M bps |
| Power Supply | 24V DC(9-30V) 48V POE(46-54V) |
| Current | <0.30A@24V DC |
| Physical parameters | |
| Dimension | 360*83*28mm |
| Weight | 580g |
| Fixed type | 2*M5 screw |
| Housing Material | ABS and Metal plate |
| Color | Black |
| Indicator light | LED*2 |
| Interface | M12A(4pin M) + M12D(4pin M) |
| Application environment | |
| Working Temperature | -40℃～+85℃ |
| Humidity | 5%～95%RH |
| Waterproof/dustproof | IP67 |
Feature of Modbus TCP Communication Industrial rfid reader:
Built-in-one design,have strong anti-interference ability to EMC.
With high sensitive read-write performance.
Support Modbus communication mode,Convenience to interface with various PLCs.
Integrated design,easy to installation and deployment.
With IP67 protection grade can adapt to harsh environments.
Advantages of Modbus TCP Communication Industrial rfid reader:
Small size
Fast data transfer
Non expensive
Easy to use
Modbus TCP Communication Industrial rfid reader Application:
Logistics Automation
The combination of decentralized solutions for I/O, safety, identification and control with IP67 rating makes us be your ideal partner for automating logistics processes.
Efficient RFID identification solutions for process optimization, help improve tool recognition and complete traceability of production and logistics processes.
Factory Automation
This product has always been a key player in the field of discrete manufacturing with its strong portfolio comprising sensors, connection and fieldbus technologies, RFID and control solutions. Our comprehensive solutions help our customers to improve efficiency, increase availability and minimize errors.
Dimension Drawing(mm):
Installation Instruction:
This reader use two M5 screws to fixing. According to the installation environment of the site,we can support bracket to install.If there has Metal plate beside the product,please make sure that the distance between reader and Metal plate has more than 15mm,or it will influence the performance of reading and writing.
When there are more than two readers to be installed, the distance between the readers needs to be greater than 850mm.
FAQ
1.How we can trust you?
We are Alibaba Trade Assurance Supplier and 2 years Ali Gold Supplier
We focus on HF RIFD equipment for 10 years.
Our products have 17patens and copyrights certificates.
Our company has approved ISO9001-2008 quality management system certificate.
Our company is awarded High and New Technology Enterprise and Science and Technology Innovation Small Giant Enterprise by Chinese government.
2. What is the warranty?
3 years warranty for core device from the date of delivery,A lifetime technical support.
We will return full money to customer if we did not shipping right items as contract.
3. What’s your delivery time?
Around 2~10 working days according to exact order quantity and stock situation.
4. What’s your Payment?
PayPal or T/T (Bank transfer) or Western Union and Ali trade Assurance are accepted.
5. Whether your products could be customized?
Yes,for sure. Please talk to sales about exact requirements.
Andea offer the OEM or ODM service.
