Devote to RFID Technology Research & Development Since 2007
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Andea Electronics |
| Model Number: | AR2301T |
| Minimum Order Quantity: | 1 Piece |
| Delivery Time: | 7~15 work days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 500~1000 Sets Per Month |
| Operating Frequency: | 13.56MHz | Support Standard: | ISO 15693 |
|---|---|---|---|
| Communication Mode: | Industrial Ethernet | Communication Rate: | 10/100M Bps |
| Supply Voltage: | 48V POE(46-54V)，24V DC(9~30V) | Dimensions: | 100*100*35mm |
| Shell Material: | ABS + Metal Base Plate | ||
| Highlight: | Industrial RFID Reader 13.56MHz,100Mbps Modbus TCP Industrial RFID Reader |
||

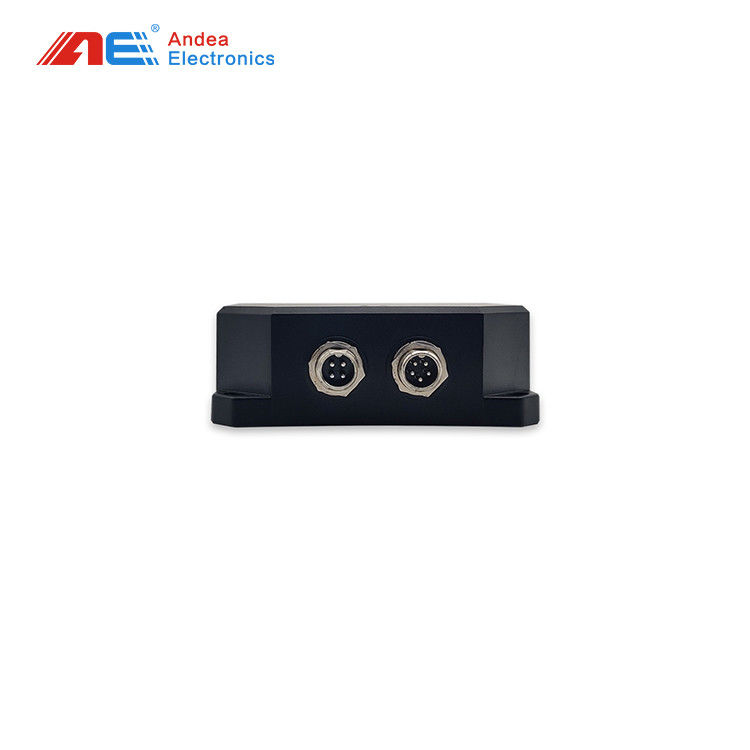

13.56MHz Medium Power Modbus TCP Communication Industrial RFID Reader for warehouse management
Quick detail of Modbus TCP Communication Fixed Reader:
Fixed type:4*M4 screw;
Support Standard:ISO 15693;
Communication mode:Modbus TCP;
Communication Interface:M12A(4pin M) + M12D(4pin M);
Waterproof/ dustproof:IP67;
Specification of Modbus TCP Communication Fixed Reader:
| Specification | |
| Support Standard | ISO 15693 |
| Operating Frequency | 13.56MHz |
| Reading Range | 0-140mm |
| Communication mode | Modbus TCP |
| Communication rate | 10/100M bps |
| Power Supply | 24V DC(9-30V) 48V POE(46-54V) |
| Current | <0.03A@24V DC |
| Physical parameters | |
| Dimension | 100*100*35mm |
| Weight | 160g |
| Fixed type | 4*M4 screw |
| Housing Material | ABS and Metal plate |
| Color | Black |
| Indicator light | LED*2 |
| Interface | M12A(4pin M) + M12A(4pin M) |
| Application environment | |
| Working Temperature | -40℃～+85℃ |
| Humidity | 5%～95%RH |
| Waterproof/dustproof | IP67 |
Feature of Modbus TCP Communication Fixed Reader:
With IP67 protection grade can adapt to harsh environments.
With high sensitive read-write performance.
Support Modbus communication mode,Convenience to interface with various PLCs.
Built-in-one design,have strong anti-interference ability to EMC.
Integrated design,easy to installation and deployment.
Advantages of Modbus TCP Communication Fixed Reader:
Fast data transfer
Small size
Easy to use
Non expensive
Modbus TCP Communication Fixed Reader Application:
Power Battery Assembly
Install the reader at the RFID collection point, and the on-line station collection point reads the RFID tag in the material box to obtain the information of slots in the material box (each slot is equipped with a cell with different voltage), The voltage value/grade of the test cell is written into the material box RFID tag at the test station of the voltage cell. When the cell is classified, read the RFID tag information of the material box and connect the robot in real time to automaticaly put the cell into the corresponding cell transport track. After the robot takes down the cell with different gear from the transport track and puts them into the same material box it will write the cell gear information into the RFID tag of the material box. Through the operation of each station on the RFID tag, a series of processes such as cell division, transportation, encapsulation, and assembly are completed in the process of cell assembly.
Intelligent Application of Home Appliance Manufacturing Process
Through RFID data acquisition technology (By adding RFID tags on the product/tooling board and deploying RFID readers on the workstation),the unmanned,automatic and real-time identification of single-item products on the production line is realized.
Using real-time collected product information,complete error prevention of mixed flow production materials,real-time push of process guidance,automatic diversion of defective products,automatic generation of quality reports,product traceability management,mixed flow line alarms,and equipment automation docking.
Dimension Drawing(mm):
Installation Instruction:
This reader use four M4 screws to fixing. According to the installation environment of the site,we can support bracket to install.If there has Metal plate beside the product,please make sure that the distance between reader and Metal plate has more than 15mm,or it will influence the performance of reading and writing.
When there are more than two readers to be installed, the distance between the readers needs to be greater than 850mm.
FAQ
1.What's your MOQ?
Big Order or Sample Order is accepted by our company.
We understanding new customers may take sample testing to know our quality and service.
2.What is the warranty?
3 years warranty for core device from the date of delivery,A lifetime technical support.
We will return full money to customer if we did not shipping right items as contract.
3. What’s your delivery time?
Around 2~10 working days according to exact order quantity and stock situation.
4. What’s your Payment?
PayPal or T/T (Bank transfer) or Western Union and Ali trade Assurance are accepted.
5. Whether your products could be customized?
Yes,for sure. Please talk to sales about exact requirements.
Andea offer the OEM or ODM service.
