Devote to RFID Technology Research & Development Since 2007
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Andea Electronics |
| Model Number: | AR1431M |
| Minimum Order Quantity: | 1 Piece |
| Delivery Time: | 7~15 work days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 500~1000 Sets Per Month |
| Support Standard: | ISO 15693、ISO 14443 TypeA/B | Operating Frequency: | 13.56MHz |
|---|---|---|---|
| Fixed Type: | Use Two Nuts To Clamp On The Site,or Fixed In Place By Twisting | Reading Range: | 0~55mm |
| Communication Mode: | Modbus RS485 | Interface: | M12A(4pin M) |
| Power Supply: | 24V DC（9-30V） | Current: | <0.07A@24V DC |
| Housing Material: | Brass Nickel Plating | Color: | Sliver |
| Waterproof/Dustproof: | IP67 | Working Temperature: | -40℃～+85℃ |
| Highlight: | RS485 Communication Fixed Reader,13.56MHz Communication Fixed Reader |
||

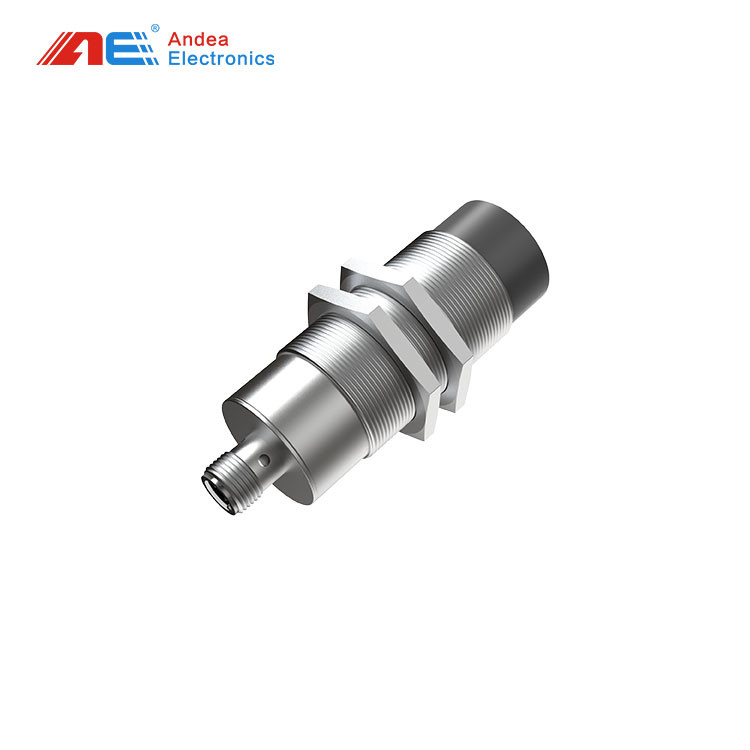

13.56MHz Micro-power Modbus RS485 Communication Fixed Reader decentralized identification of products and goods
Quick detail of Micro-power rfid reader Modbus RS485 Communication:
Fixed type:use two nuts to clamp on the site,or fixed in place by twisting;
Waterproof/ dustproof:IP67;
Support Standard:ISO 15693,ISO 14443 TypeA/B;
Communication mode:Modbus RTU485;
Communication Interface:M12A(4pin M);
Specification of Micro-power rfid reader Modbus RS485 Communication:
|
Specification |
|
|
Support Standard |
ISO 15693,ISO 14443 TypeA/B |
|
Operating Frequency |
13.56MHz |
|
Reading Range |
0-55mm |
|
Communication mode |
Modbus RTU485 |
|
Communication rate |
10/100M bps |
|
Power Supply |
24V DC(9-30V) |
|
Current |
<0.07A@24V DC |
|
Physical parameters |
|
|
Dimension |
φ30mm*87.5mm |
|
Weight |
100g |
|
Fixed type |
use two nuts to clamp on the site,or fixed in place by twisting |
|
Housing Material |
Brass nickel plating |
|
Color |
Sliver |
|
Indicator light |
LED*2 |
|
Interface |
M12A(4pin M) |
|
Application environment |
|
|
Working Temperature |
-40℃～+85℃ |
|
Humidity |
5%～95%RH |
|
Waterproof/dustproof |
IP67 |
Feature of Micro-power rfid reader Modbus RS485 Communication:
With high sensitive read-write performance.
Built-in-one design,have strong anti-interference ability to EMC.
Integrated design,easy to installation and deployment.
Support Modbus communication mode,Convenience to interface with various PLCs.
With IP67 protection grade can adapt to harsh environments.
Advantages of Micro-power rfid reader Modbus RS485 Communication:
Fast data transfer
Easy to use
Small size
Non expensive
Micro-power rfid reader Modbus RS485 Communication Application:
Intelligent Application of Home Appliance Manufacturing Process
Through RFID data acquisition technology (By adding RFID tags on the product/tooling board and deploying RFID readers on the workstation),the unmanned,automatic and real-time identification of single-item products on the production line is realized.
Using real-time collected product information,complete error prevention of mixed flow production materials,real-time push of process guidance,automatic diversion of defective products,automatic generation of quality reports,product traceability management,mixed flow line alarms,and equipment automation docking.
Engine Assembly Line
The reader can interface with various PLCs such as Siemens,Schneider and Mitsubishi through the industrial bus controller. By reading the RFID tag mounted on the tray,passing the information to the PLC, Through the information of installation to guide the assembly robot or the assembler to auto select the appropriate part,the engine assembly efficiency can be greatly improved.
Factory Automation
This product has always been a key player in the field of discrete manufacturing with its strong portfolio comprising sensors, connection and fieldbus technologies, RFID and control solutions. Our comprehensive solutions help our customers to improve efficiency, increase availability and minimize errors.
Dimension Drawing(mm):
Installation Instruction:
The product comes with M30*45mm thread. When fixing, use two nuts to clamp on the site,or fixed in place by twisting. If the application environment is not allow, we can support bracket to install.
When there are more than two readers to be installed, the distance between the readers needs to be greater than 850mm.
FAQ
1.How we can trust you?
We are Alibaba Trade Assurance Supplier and 2 years Ali Gold Supplier
We focus on HF RIFD equipment for 10 years.
Our products have 17patens and copyrights certificates.
Our company has approved ISO9001-2008 quality management system certificate.
Our company is awarded High and New Technology Enterprise and Science and Technology Innovation Small Giant Enterprise by Chinese government.
2. Why choose us?
With us make Win-Win Business Situation!!!
24 *7 hours after sales service
We accept "PayPal", credit card to convenient customer make payment.
Quality Assurance Contract
Full refund in case of bad quality
Online supports if any technique issue.
Both Small Order and Big Order are accepted.
Accept OEM/ODM order.
3. What is the warranty?
3 years warranty for core device from the date of delivery,A lifetime technical support.
We will return full money to customer if we did not shipping right items as contract.
4. What’s your Payment?
PayPal or T/T (Bank transfer) or Western Union and Ali trade Assurance are accepted.
5. Whether your products could be customized?
Yes,for sure. Please talk to sales about exact requirements.
Andea offer the OEM or ODM service.
