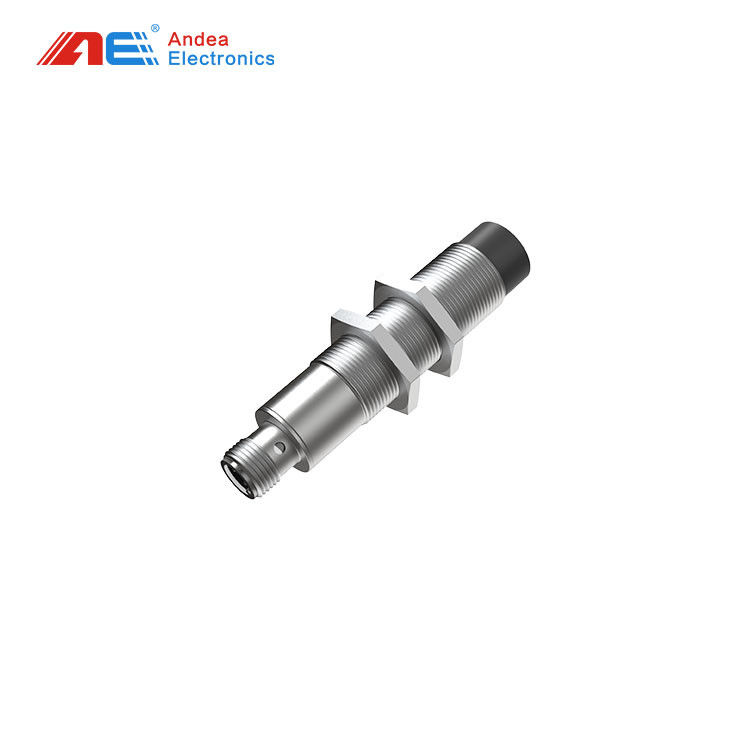

HF Modbus RS485 Compact RFID Device M12 Interface For Distributed Production Line

HF Modbus RS485 Compact RFID device M12 Interface used for distributed production line

Quick detail of Modbus RS485 Compact RFID device:


• Communication mode:Modbus RTU485;

• Support Standard:ISO 15693,ISO 14443 TypeA/B;

• Waterproof/Dtproof:IP67;

• Fixed type:use two nuts to clamp on the site,or fixed in place by twisting;

• Communication Interface:M12A(4pin M);



---

  Specification of Modbus RS485 Compact RFID device:


Specification
Support Standard	ISO 15693,ISO 14443 TypeA/B
Operating Frequency	13.56MHz
Reading Range	0-35mm
Communication mode	Modbus RTU485
Communication rate	10/100M bps
Power Supply	24V DC(9-30V)
Current	<0.07A@24V DC
Physical parameters
Dimension	φ18mm*82.5mm
Weight	60g
Fixed type	use two nuts to clamp on the site,or fixed in place by twisting
Housing Material	Brass nickel plating
Color	Sliver
Indicator light	LED*2
Interface	M12A(4pin M)
Application environment
Working Temperature	-40℃～+85℃
Humidity	5%～95%RH
Waterproof/dustproof	IP67



---

Feature of Modbus RS485 Compact RFID device:



Integrated design,easy to installation and deployment.



Support Modbus communication mode,Convenience to interface with various PLCs.



Built-in-one design,have strong anti-interference ability to EMC.



With high sensitive read-write performance.



With IP67 protection grade can adapt to harsh environments.



---

Advantages of Modbus RTU485 Communication rfid embedded reader:



Small size



Fast data transfer



Non expensive



Easy to use



---



Modbus RS485 Compact RFID device Application:



Intelligent Application of Home Appliance Manufacturing Process



Through RFID data acquisition technology (By adding RFID tags on the product/tooling board and deploying RFID readers on the workstation),the unmanned,automatic and real-time identification of single-item products on the production line is realized.

Using real-time collected product information,complete error prevention of mixed flow production materials,real-time push of process guidance,automatic diversion of defective products,automatic generation of quality reports,product traceability management,mixed flow line alarms,and equipment automation docking.



Power Battery Assembly



Install the reader at the RFID collection point, and the on-line station collection point reads the RFID tag in the material box to obtain the information of slots in the material box (each slot is equipped with a cell with different voltage), The voltage value/grade of the test cell is written into the material box RFID tag at the test station of the voltage cell. When the cell is classified, read the RFID tag information of the material box and connect the robot in real time to automaticaly put the cell into the corresponding cell transport track. After the robot takes down the cell with different gear from the transport track and puts them into the same material box it will write the cell gear information into the RFID tag of the material box. Through the operation of each station on the RFID tag, a series of processes such as cell division, transportation, encapsulation, and assembly are completed in the process of cell assembly.



Engine Assembly Line



The reader can interface with various PLCs such as Siemens,Schneider and Mitsubishi through the industrial bus controller. By reading the RFID tag mounted on the tray,passing the information to the PLC, Through the information of installation to guide the assembly robot or the assembler to auto select the appropriate part,the engine assembly efficiency can be greatly improved.



---

Dimension Drawing(mm):




---

Installation Instruction:



The product comes with M18*45mm thread. When fixing, use two nuts to clamp on the site,or fixed in place by twisting. If the application environment is not allow, we can support bracket to install.





When there are more than two readers to be installed, the distance between the readers needs to be greater than 850mm.



---
