Place of Origin: | CHINA |
---|---|
Brand Name: | Andea Electronics |
Model Number: | AR1401M |
Minimum Order Quantity: | 1 Piece |
Delivery Time: | 7~15 work days |
Payment Terms: | T/T, Western Union, Paypal |
Supply Ability: | 500~1000 Sets Per Month |
Support Standard: | ISO 15693、ISO 14443 TypeA/B | Operating Frequency: | 13.56MHz |
---|---|---|---|
Communication Mode: | Modbus RTU 485 | Interface: | M12A(4pin M) |
Communication Rate: | 10/100M Bps | Current: | <0.07A@24V DC |
Dimension: | φ18mm*75.5mm | Weight: | 50g |
Working Temperature: | -40℃~+85℃ | Waterproof/dustproof: | IP67 |
Highlight: | Rfid Embedded Reader,13.56MHz Embedded Reader |

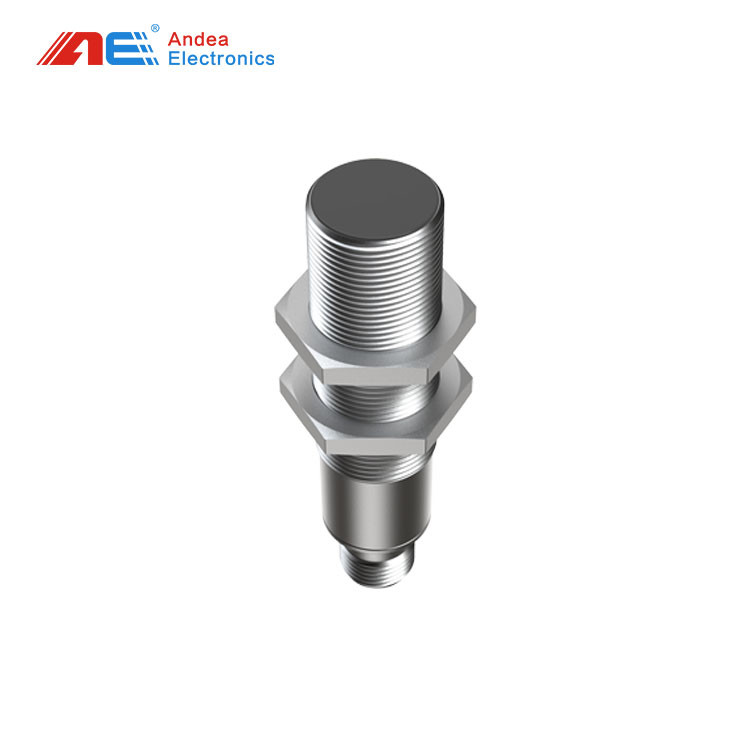

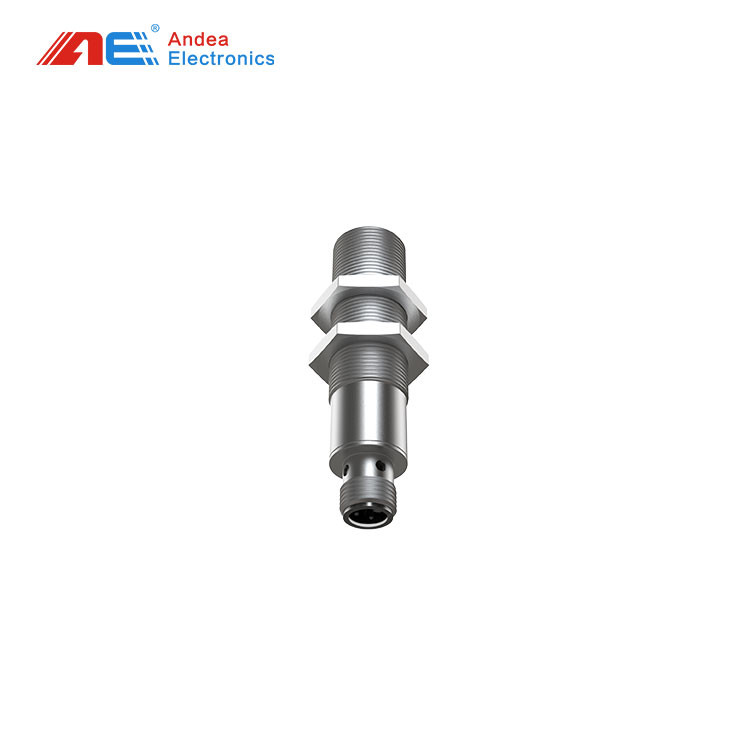

13.56MHz Micro-power Modbus RTU 485 Communication rfid embedded reader for Factory Automation
Quick detail of rfid embedded reader:
Specification of rfid embedded reader:
Specification |
|
Support Standard |
ISO 15693,ISO 14443 TypeA/B |
Operating Frequency |
13.56MHz |
Reading Range |
0-25mm |
Communication mode |
Modbus RTU485 |
Communication rate |
10/100M bp |
Power Supply |
24V DC(9-30V) |
Current |
<0.07A@24V DC |
Physical parameters |
|
Dimension |
φ18mm*75.5mm |
Weight |
50g |
Fixed type |
use two nuts to clamp on the site,or fixed in place by twisting |
Housing Material |
Brass nickel plating |
Color |
Sliver |
Indicator light |
LED*2 |
Interface |
M12A(4pin M) |
Application environment |
|
Working Temperature |
-40℃~+85℃ |
Humidity |
5%~95%RH |
Waterproof/dustproof |
IP67 |
Feature of rfid embedded reader:
Support Modbus communication mode,Convenience to interface with various PLCs.
Integrated design,easy to installation and deployment.
With high sensitive read-write performance.
With IP67 protection grade can adapt to harsh environments.
Built-in-one design,have strong anti-interference ability to EMC.
Advantages of Modbus RTU485 Communication rfid embedded reader:
Fast data transfer
Small size
Easy to use
Non expensive
rfid embedded reader Application:
Trace systems for decentralized identification of products and goods.
Logistics Automation
The combination of decentralized solutions for I/O, safety, identification and control with IP67 rating makes us be your ideal partner for automating logistics processes.
Engine Assembly Line
The reader can interface with various PLCs such as Siemens,Schneider and Mitsubishi through the industrial bus controller. By reading the RFID tag mounted on the tray,passing the information to the PLC, Through the information of installation to guide the assembly robot or the assembler to auto select the appropriate part,the engine assembly efficiency can be greatly improved.
Power Battery Assembly
Install the reader at the RFID collection point, and the on-line station collection point reads the RFID tag in the material box to obtain the information of slots in the material box (each slot is equipped with a cell with different voltage), The voltage value/grade of the test cell is written into the material box RFID tag at the test station of the voltage cell. When the cell is classified, read the RFID tag information of the material box and connect the robot in real time to automaticaly put the cell into the corresponding cell transport track. After the robot takes down the cell with different gear from the transport track and puts them into the same material box it will write the cell gear information into the RFID tag of the material box. Through the operation of each station on the RFID tag, a series of processes such as cell division, transportation, encapsulation, and assembly are completed in the process of cell assembly.
Dimension Drawing(mm):
Installation Instruction:
The product comes with M18*45mm thread. When fixing, use two nuts to clamp on the site,or fixed in place by twisting. If the application environment is not allow, we can support bracket to install.
When there are more than two readers to be installed, the distance between the readers needs to be greater than 850mm.
FAQ
1 What is the warranty?
3 years warranty for core device from the date of delivery,A lifetime technical support.
We will return full money to customer if we did not shipping right items as contract.
2 What’s your delivery time?
Around 2~10 working days according to exact order quantity and stock situation.
3 What’s your Payment?
PayPal or T/T (Bank transfer) or Western Union and Ali trade Assurance are accepted.
4 Whether your products could be customized?
Yes,for sure. Please talk to sales about exact requirements.
Andea offer the OEM or ODM service.
