Devote to RFID Technology Research & Development Since 2007
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Andea Electronics |
| Model Number: | AR1301T |
| Minimum Order Quantity: | 1 Piece |
| Delivery Time: | 7~15 work days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 500~1000 Sets Per Month |
| Support Standard: | ISO 15693、ISO 14443 TypeA/B | Operating Frequency: | 13.56MHz |
|---|---|---|---|
| Reading Range: | 0~100mm | Communication Mode: | Modbus TCP |
| Communication Rate: | 10/100M Bps | Power Supply: | 48V POE(46-54V), 24V DC(9~30V) |
| Dimension: | 100*100*35mm | Weight: | 160g |
| Housing Material: | ABS And Metal Plate | Interface: | M12A(4pin M) + M12D(4pin M) |
| Highlight: | Modbus TCP Communication Fixed Reader,100Mbps Communication Fixed Reader,Warehouse Management Industrial RFID Reader |
||

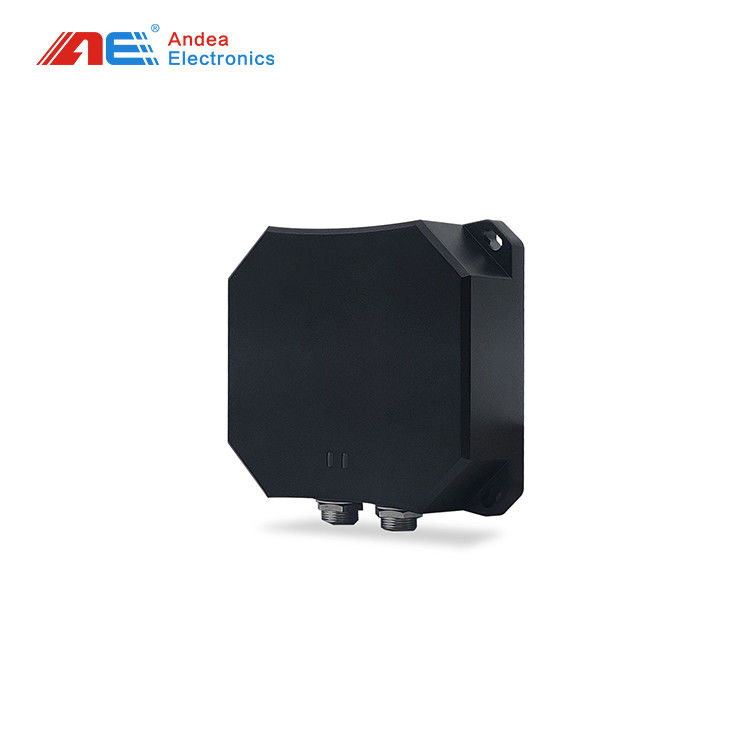

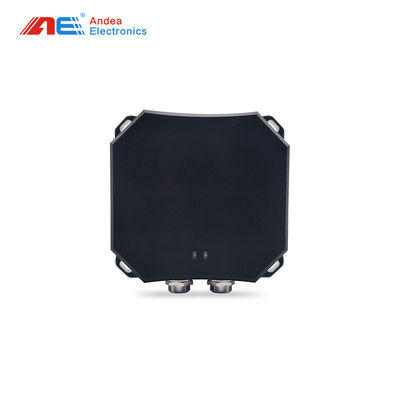

13.56MHz Modbus TCP Communication Fixed Reader For Warehouse Management
Quick detail of Modbus TCP Communication Fixed Reader:
Specification of Modbus TCP Communication Fixed Reader:
|
Specification |
|
|
Support Standard |
ISO 15693,ISO 14443 TypeA/B |
|
Operating Frequency |
13.56MHz |
|
Reading Range |
0-100mm |
|
Communication mode |
Modbus TCP |
|
Communication rate |
10/100M bps |
|
Power Supply |
24V DC(9-30V) 48V POE(46-54V) |
|
Current |
<0.04A@24V DC |
|
Physical parameters |
|
|
Dimension |
100*100*35mm |
|
Weight |
160g |
|
Fixed type |
4*M4 screw |
|
Housing Material |
ABS and Metal plate |
|
Color |
Black |
|
Indicator light |
LED*2 |
|
Interface |
M12A(4pin M) + M12A(5pin M) |
|
Application environment |
|
|
Working Temperature |
-40℃～+85℃ |
|
Humidity |
5%～95%RH |
|
Waterproof/dustproof |
IP67 |
Feature of Modbus TCP Communication Fixed Reader:
With high sensitive read-write performance.
Built-in-one design,have strong anti-interference ability to EMC.
With IP67 protection grade can adapt to harsh environments.
Integrated design,easy to installation and deployment.
Support Modbus communication mode,Convenience to interface with various PLCs.
Advantages of Modbus TCP Communication Fixed Reader:
Fast data transfer
Small size
Easy to use
Non expensive
Modbus TCP Communication Fixed Reader Application:
Factory Automation
This product has always been a key player in the field of discrete manufacturing with its strong portfolio comprising sensors, connection and fieldbus technologies, RFID and control solutions. Our comprehensive solutions help our customers to improve efficiency, increase availability and minimize errors.
Efficient RFID identification solutions for process optimization, help improve tool recognition and complete traceability of production and logistics processes.
Intelligent Application of Home Appliance Manufacturing Process
Through RFID data acquisition technology (By adding RFID tags on the product/tooling board and deploying RFID readers on the workstation),the unmanned,automatic and real-time identification of single-item products on the production line is realized.
Using real-time collected product information,complete error prevention of mixed flow production materials,real-time push of process guidance,automatic diversion of defective products,automatic generation of quality reports,product traceability management,mixed flow line alarms,and equipment automation docking.
Dimension Drawing(mm):
Installation Instruction:
This reader use four M4 screws to fixing. According to the installation environment of the site,we can support bracket to install.If there has Metal plate beside the product,please make sure that the distance between reader and Metal plate has more than 15mm,or it will influence the performance of reading and writing.
When there are more than two readers to be installed, the distance between the readers needs to be greater than 850mm.
