Devote to RFID Technology Research & Development Since 2007
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Andea Electronics |
| Model Number: | APAD60M2 |
| Minimum Order Quantity: | 1 Piece |
| Delivery Time: | 3~5 work days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 500~1000 Sets Per Month |
| Working Frequency:: | 860-960MHz | Compatible Protocols:: | EPCglobal Gen 2 、ISO 18000-6C |
|---|---|---|---|
| RF Power: | 1~32 DBm | Communication Interface:: | USB |
| Working Voltage: | 12V DC | EMI Detection: | Support |
| Metal Shielding: | Support | Housing Material: | Acrylic And Aluminium Alloy |
| Dimension: | 410*300*28mm | ||
| High Light: | UHF Desktop RFID Reader,Long Distance Desktop RFID Reader,Aluminium Alloy Housing Desktop RFID Reader |
||

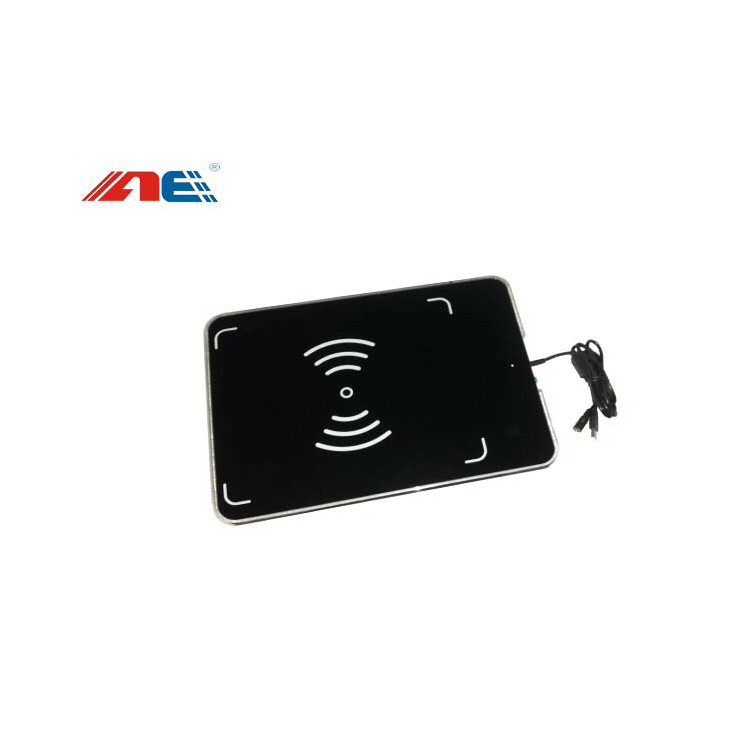

UHF Rfid Active Reader UHF Rfid Reader Long Distance UHF Rfid Desktop Reader
Product Introduction:
APAD60M2 is integrated a reader module inside as well as a senstive antenna. For its anti-collision algorithm and strong reading performance, it could reader many books at the same time to improve the books borrowing and returing effiency. Considerting the electro-magnatic interference around the reader, this reader is equipped with metal shileding function to avoid interference from metal, power adaptor, computer, mobile phonte or any other devices that can reflect or transmit electro-managetic wave.
Product Features:
Operating Frequency: 860~960 MHz
Be compatible with EPCglobal Gen 2 and ISO 18000-6C protocols
RF Power: 1~27DBM (configurable), the factory default reading power 19DBM and writing power 27DBM
Metal shielded design at the bottom, available to work in the bottom of metal environment but perform well
Support fast anti-collison algorithm, reading speed up to 110 tags/sec
All-in-one design, integrated with reader module and antenna
Communication Interface: USB
Power Supply: DC 12V, ≤500mA
| Technical Specification | |
| Operating Frequency | 860~960 MHz |
| Compatible Protocols | EPCglobal Gen 2 and ISO 18000-6C protocols |
| RF Power | 1~27DBM |
| Communication Interface | USB |
| Working Voltage | DC 12V |
| Max Power Consumption | 4W |
| Metal Shielded Design | Support |
| Housing Material | Acrylic and Aluminum Alloy |
|
Dimension |
410*300*28mm |
| Weight | 1800g |
Product Application:
RFID library management, RFID archive management, RFID jewelry management, etc.
