Devote to RFID Technology Research & Development Since 2007
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Andea Electronics |
| Model Number: | HA2805 |
| Minimum Order Quantity: | 1 Piece |
| Packaging Details: | Standard Export Carton, Foam and Protective Film |
| Delivery Time: | 3~5 work days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 500~1000 Sets Per Month |
| Operating Frequency:: | 13.56MHz | Compatible Protocol:: | ISO 15693 And ISO 18000-3M1 |
|---|---|---|---|
| RF Interface:: | SMA | Reading Range:: | 25cm |
| Dimension:: | 591*112*37mm | Weight:: | 310g |
| Housing Material:: | ABS And Aluminum Alloy | High Light:: | Rfid Library Management System, Rfid Library Solutions |
| Highlight: | 13.56mhz HF RFID Reader Antenna,Handheld RFID Reader Antenna,SMA RFID Reader Antenna |
||

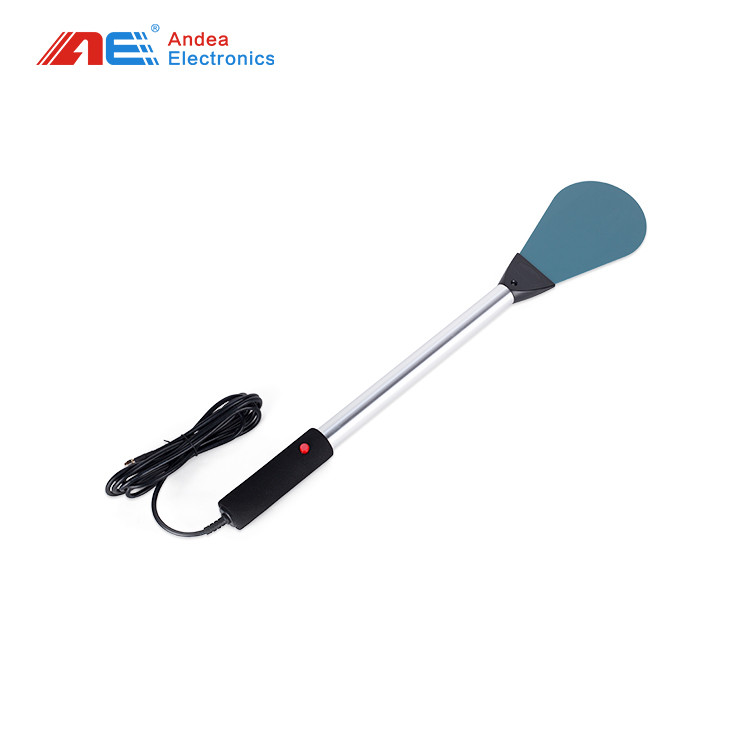

13.56mhz Handheld HF RFID Antenna For books Tracking Management
Product Introduction:
This is an external antenna used on the mobile inventory equipment. It connects the reader and writer through the SMA interface of the antenna to realize power supply and generate magnetic field induction with the electronic tag for information transmission. The product is equipped with a switch. When the reader / writer is connected, turn on the switch button to start working. The data will be transmitted to the tablet computer of the mobile inventory device or the system background through the reader / writer. This product can help you count and put things back in the right place.
Product Features:
The antenna adopts ultra-thin bendable design, can be inserted to read
Power button in handle can turn off radio frequency manually
| Technical Specification | ||
| Compatible Protocol | ISO 15693 And ISO 18000-3M1 | |
| Operating Frequency | 13.56 MHz | |
| RF Power | 2W | |
| Reading Range | 25cm | |
| Reading Speed | Up to 50 pcs/sec | |
| Antenna Impedance | 50Ω | |
| Housing Material | ABS And Aluminum Alloy | |
| Dimension | 591*112*37mm | |
Product Application:
RFID library books inventory, RFID archive management, clothing chain stores, jewelry chain stores, etc.
