Devote to RFID Technology Research & Development Since 2007
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Andea Electronics |
| Model Number: | ASG-Q2 |
| Minimum Order Quantity: | 1 Piece |
| Packaging Details: | Standard Export Carton, Foam and Protective Film |
| Delivery Time: | 3~5 work days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 500~1000 Sets Per Month |
| Communication Interface:: | SMA*4 | Operating Frequency:: | 13.56MHz |
|---|---|---|---|
| Storage Temperature:: | －25°C To 70°C | Operating Temperature:: | －20°C To 60°C |
| Housing Material:: | ABS Engineering Plastic And Aluminum Alloy | ||
| Highlight: | 13.56MHz RFID Antenna,Hospital RFID Antenna |
||

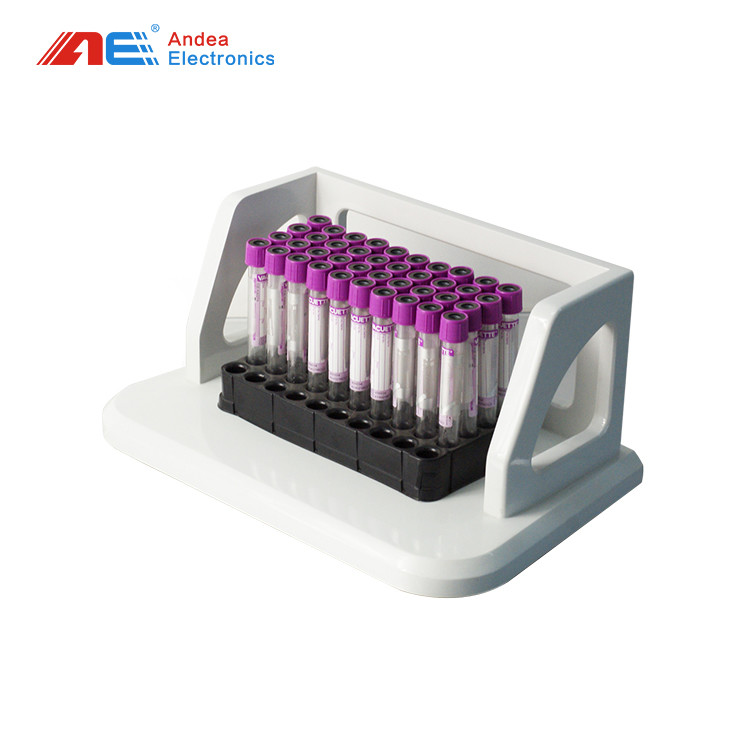

13.56MHz ISO15693 HF Test-tube Rack RFID Antenna for Hospital
Product Introduction:
Using this product has many advantages. First, RFID will be affected by liquid and metal, but this product uses metal resistant design, so that the product can work normally when placed on the metal desktop. Secondly, in order to achieve the integrity of reading labels, the antenna for detecting labels should cover the required range as much as possible. The three-dimensional antenna design solves this problem well. Thirdly, the product is an external antenna design, which can not be affected by the wiring length. Finally, the product is made of ABS engineering plastics and aluminum. Pull out the connecting wire from the product antenna interface to move and put the product into the freezer. The working temperature can be - 20 ° C to 60 ° C and the storage temperature can be - 25 ° C to 70 ° C.
| Technical Specification | |
| Model | ASG-Q2 |
| Operating Frequency | 13.56 MHz |
| Compatible Protocols | ISO 15693 |
| RF Power | 0.25-1.5W |
| RF Interface | SMA*4(50Ω) |
| Reading Range | 20-30cm |
| Dimension | 320*200*140mm |
| Housing Material: | ABS Engineering Plastic And Aluminum Alloy |
